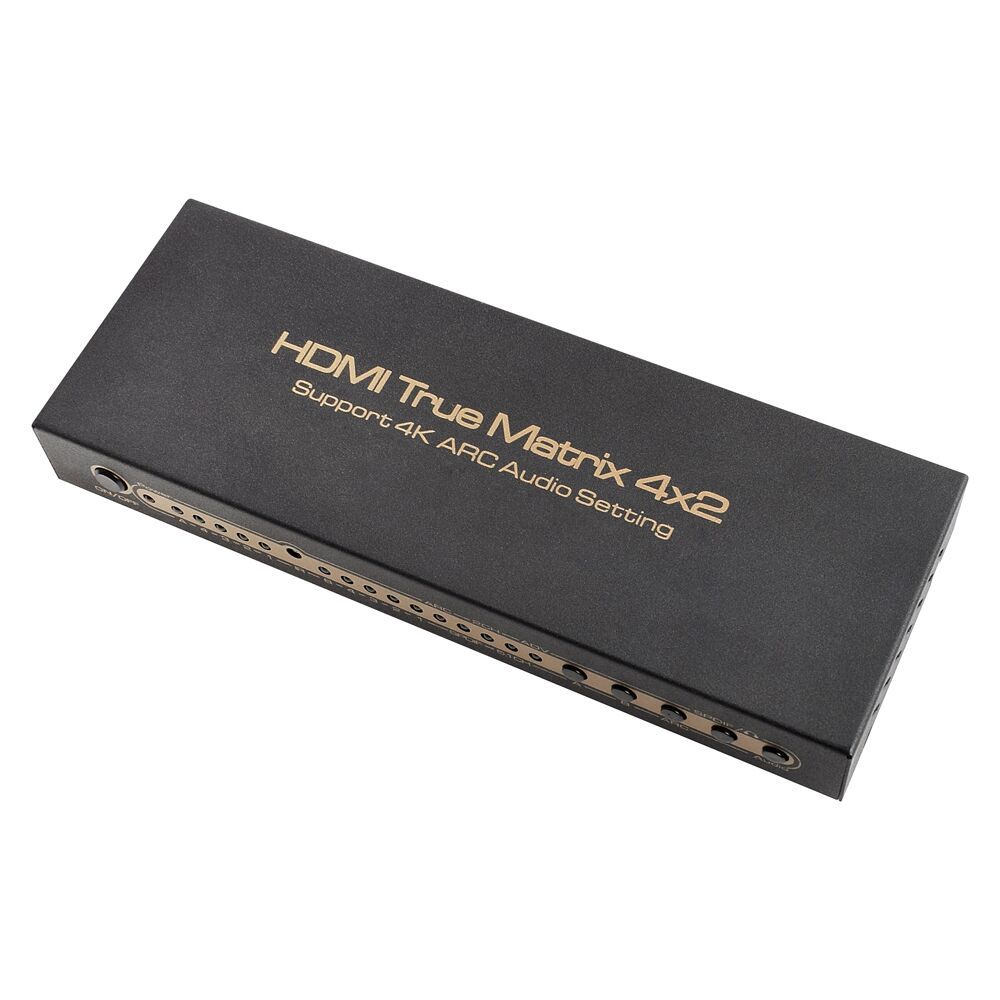

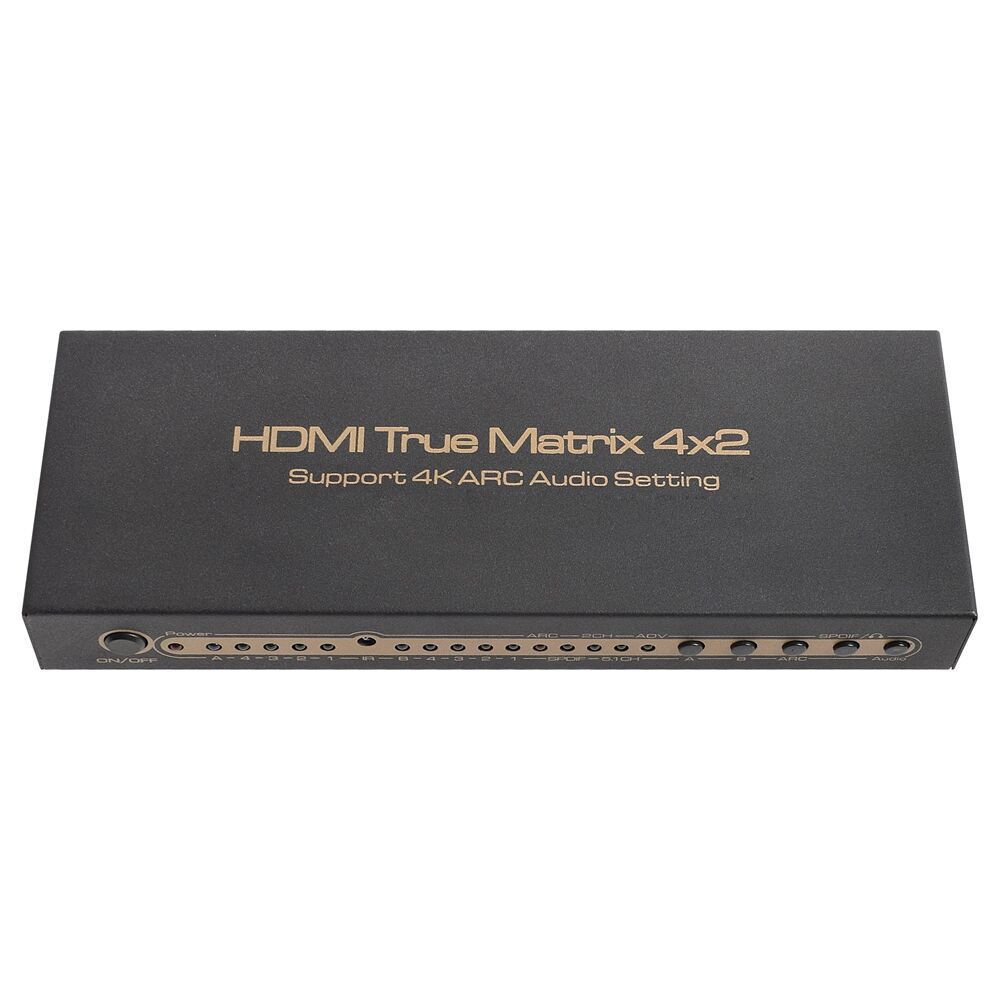

4 x 2 HDMI Matrix Switcher Splitter

Allows switching of 4 inputs to 2 display simultaneously

This is a high-performance HDMI Matrix switcher splitter box with four HDMI inputs & two outputs, it allows switching of any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on any of the two displays simultaneously, and supports 4K×2K, 3D, up to 48-bit Deep Colour.

Features:

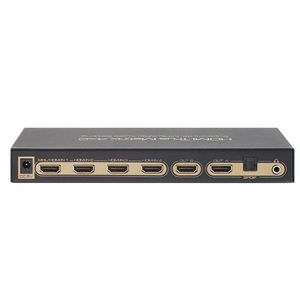

• One HDMI Input support MHL/HDMI double mode input, the other three HDMI input support only HDMI single mode input.

• The output A support extra audio output by SPDIF port and 3.5mm Headphone Port.

• HDMI to achieve the synchronization of audio signal separation. There are ADV/2.0CH / 5.1CH three kinds of audio mode options

• Support HDMI 1.4 Full HD 1080P, Full 3D

• Support 4K*2K resolution

• Support deep color 30bit, 36bit, 48bit

• Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

• Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

• Support signal retiming

• Support input up to 15metres AWG24 HDMI standard cable length, output up to 25metres AWG24 cable length

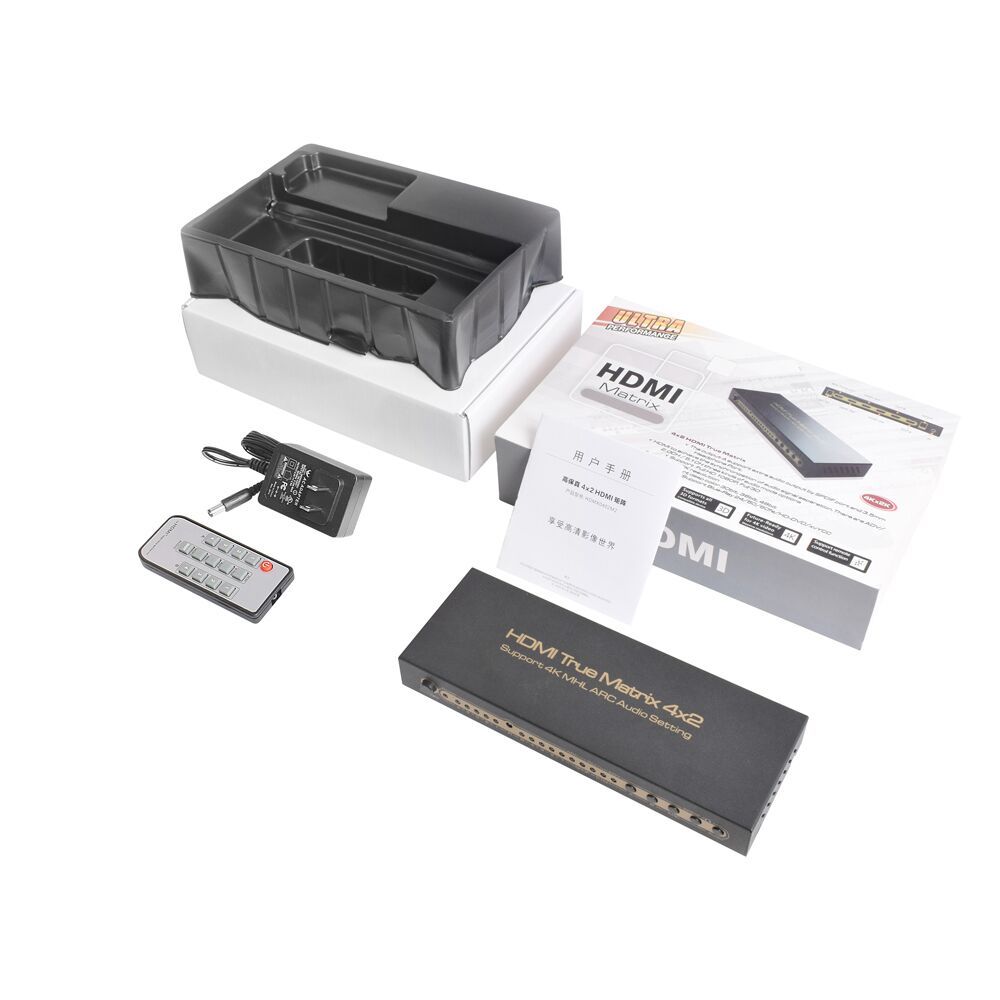

• Inputs can be switched with the IR remote control，also can be controlled by two switch buttons.

• MHL port supports the RCP function, it can do control to the smart phone and the switcher by the TV remote.

• MHL/HDMI working in dual mode, can reduce the number of ports

• The SPDIF audio output format can be chose by pressing the switch key or the remote.

• It can come back to the default the input 1 status when restarted or reset.

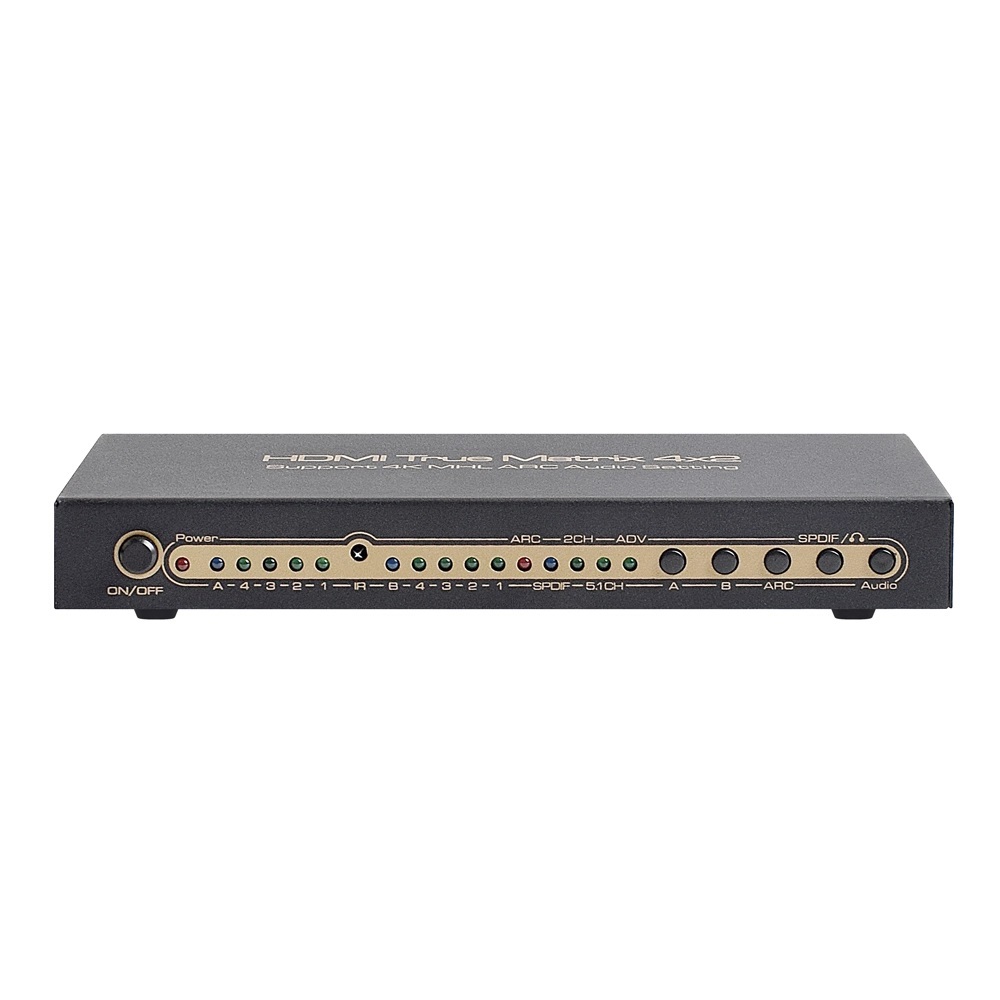

• Led Status Light allow the user to know the working status easily.

• No loss of quality

• Installs in minutes

Specifications:

HDMI STANDARD……………………………..…..…………………………HDMI support 4K*2K input and 3D

HDMI resolution …………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………………..……. 24bit/deep color 30bit,36bit, 48bit

Support audio format………………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Audio output………………………………………………..….………...SPDIF and 3.5mm Stereo

Max transmission bandwidth…….………………….……………………………………..340MHz

Max baud rate……………………………………………………………………………….10.2Gbps

Input/Output TMDS signal ………….…………………………..………………… 0.5~1.5Volts p-p

Input/Output DDC signal ……………………………………………….………… 5Volts p-p (TTL)

Input cable distance..…... ………………………….…….…≤15m AWG24 HDMI standard cable

Output cable distance…………………………….….……...≤25m AWG24 HDMI standard cable

Max working current…………………………………………………………………………1300mA

Power adapter format………………....Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….……………………..…250X27X75 (mm)

Weight…..……………………………………………….………..…….……..…………………380g
