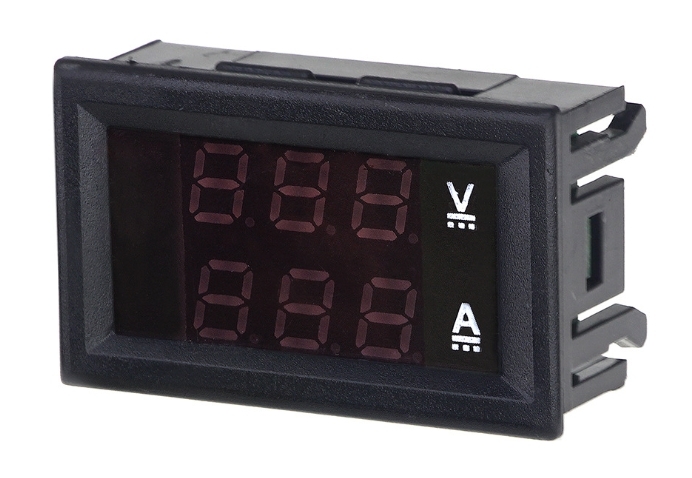

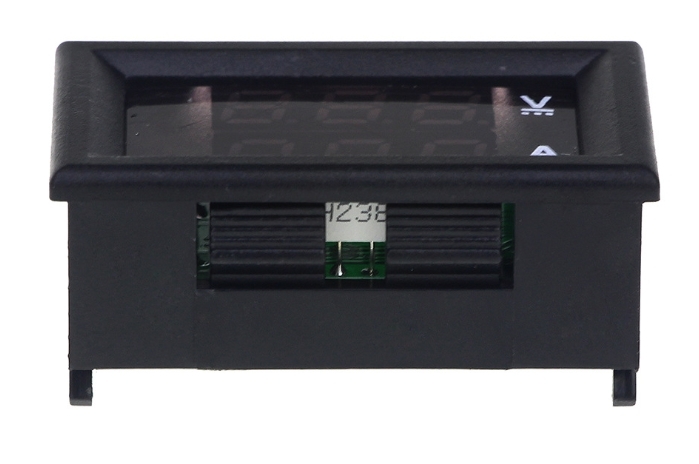

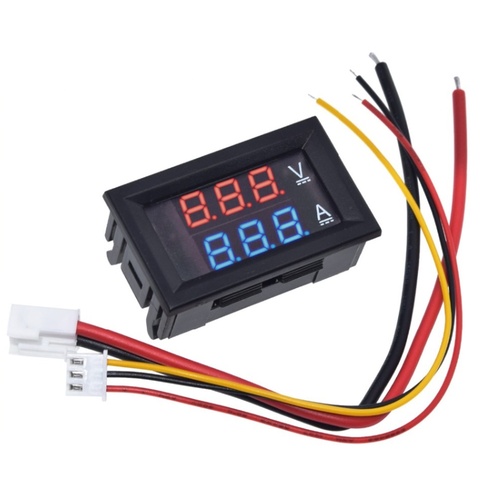

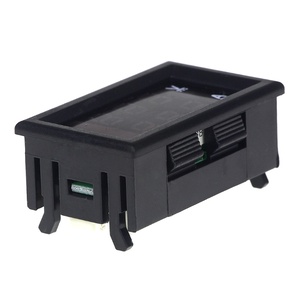

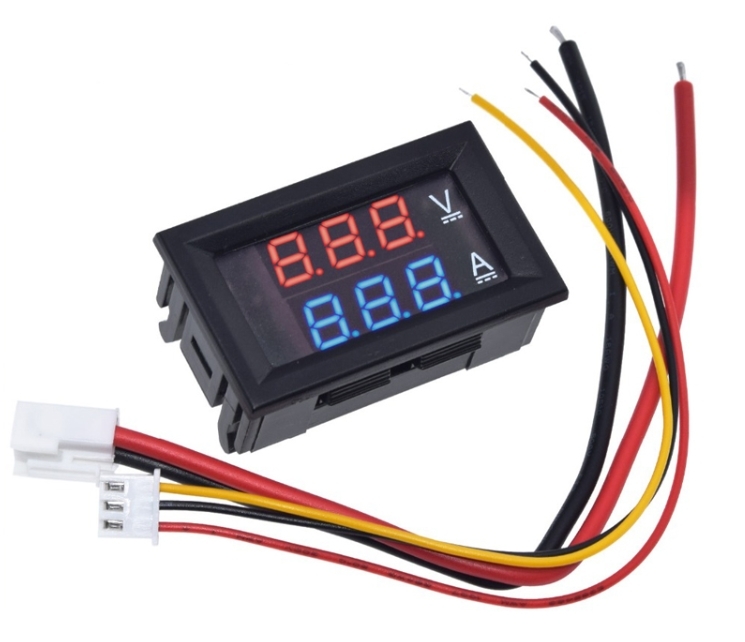

0.56" LED Dual Display 100V DC 10A Digital Voltmeter Ammeter

Panel Mount Current and Voltage Display Gauge

A Panel mount digital voltmeter and current meter display. Measures up to 100V DC and 10 Amp. Displays Voltage in RED LED and Current in Blue LED Display. Great space saving solutoin.

Specifications:

Working current of Meter itself:≤20mA

Voltage Measuring range: DC 0 - 100V

Current Measuring range: DC 0 - 10A

Voltage resolution (V): ±0.1%

Current resolution (A): ±1%

Display: 0.28" digital tube, Two color blue and red

Operation Temp: -10℃-+65℃

Refresh rate: about 300mS / times

Dimensions:48mm*29mm*22mm

Package Contains:

1x DC 100V 10A Voltmeter & Ammeter
