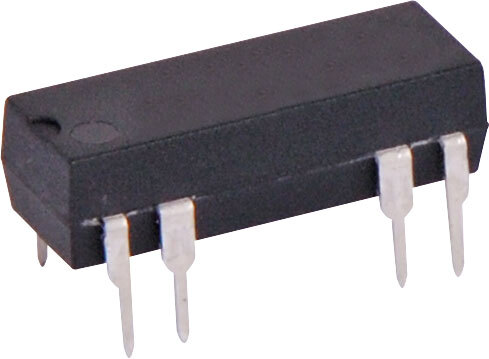

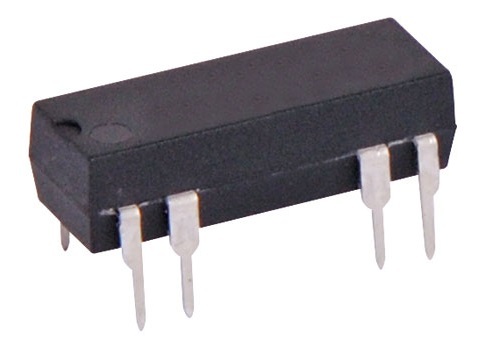

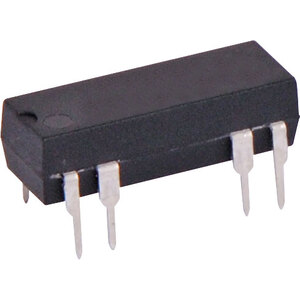

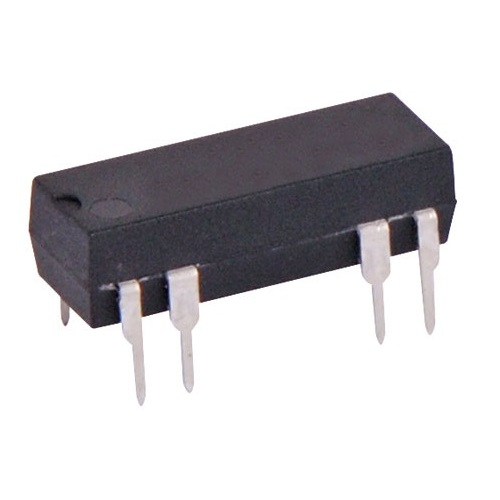

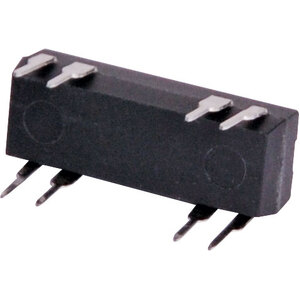

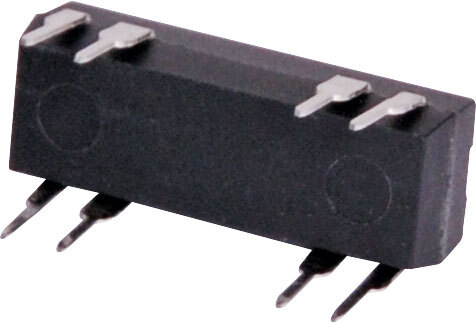

0.5A 12VDC SPST DIP PCB Mount Reed Relay

12V Reed Relay

Fully sealed construction (immersion cleanable). DIL pitch terminals. PCB mount style.

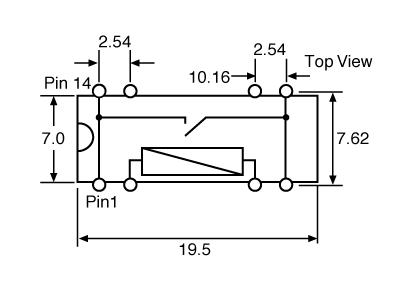

Pinout:

• Max switching voltage: 100V DC
• Max switching current: 0.5A DC
• Max VA (Watts): 10VA
• Coil resistance: 1050Ω
• Max coil power: 500mw
• Insulation resistance: >1000MΩ@ 500V DC
• Dielectric strength (for 1 min):
• - 150V AC between open contacts
• - 1000V AC between coil & contact
• Electrical life: 10 million operations
• Dimensions: 20W x 8L x 6H mm

  *Specifications are subject to change without notice
