0V - 24V DC 15A Variable Switch Mode Power Supply

Power Supply for high current applications

SKU: PS2455


$219.00
RRP $399.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $208.05 ea
Buy 11 to 20: Pay $187.24 ea
Buy 21 to 100: Pay $168.52 ea




Calculate Shipping

0V - 24V DC 15A Variable Switch Mode Power Supply

Power Supply for high current applications

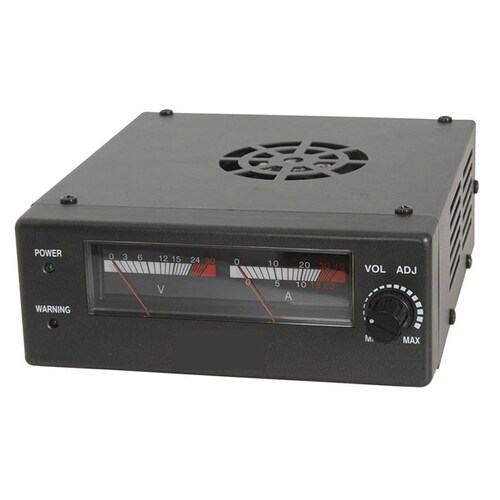

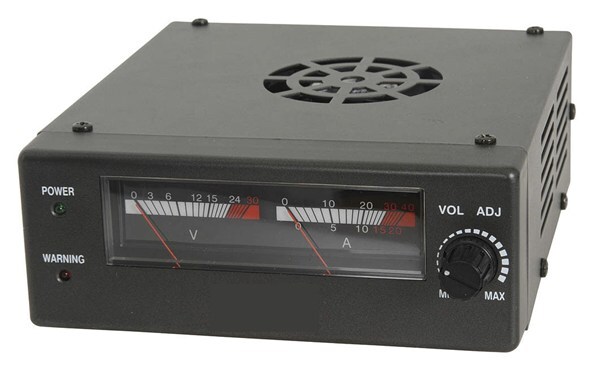

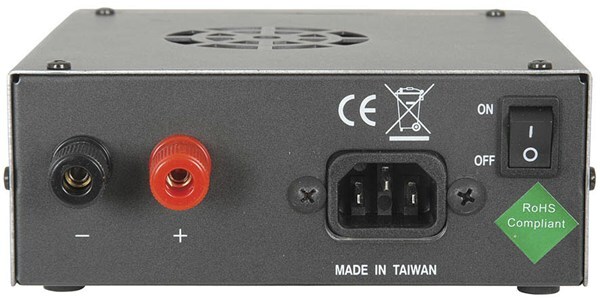

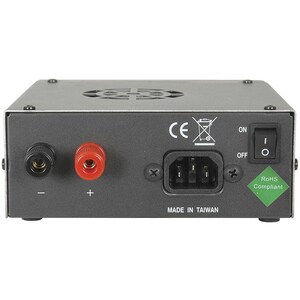

This Switchmode Desktop power supply is a variable voltage DC Output; from 0V to 24V DC capable of supplying up to 15 Amps continuous. Simply dial in the required voltage which is displayed on the easy to read Analogue display, then connect your device via the 2 high current binding posts avialable.

Includes cooling fan. Features thermal overload and short circuit protection and will display a warning LED in the event of a fault condition. Current and voltage are displayed on separate backlit analogue meters.

Supplied with a 1.8m IEC Cable for plugging directly into 240V AC Mains socket.

Specifications:



AC Voltage rating : 230V
AC Frequency : 50Hz
DC current rating : 15A
Width : 148mm
Height : 62mm
Depth : 162mm
Mains Voltage Range : 230V
Frequency : 50Hz
Rated for AU Mains : true
Rated for US Mains : false
Auto-select mains voltage : false
Mains Item connection : Standard IEC320 (C13/C14)
Mains lead included : true
Packaged Volume : 2.8l
Packaged Weight : 1.5kg
Packaged Length : 20.5cm
Packaged Width : 19.5cm
Packaged Height : 7cm
Type of Power Supply : Laboratory
Regulation Type : SMPS
Voltage Display : true
Current Display : true
Output Connection : Banana 4mm (standard)Binding Post Terminals
Number of Outputs : 1pc
Ripple Voltage : 9mV



CLICK HERE TO SEE OTHER VARIABLE POWER SUPPLIES IN OUR RANGE

3 Month Warranty

SKU PS2455
Barcode # 9351634063413
Brand eFuel
Shipping Weight 1.4800kg
Shipping Width 0.200m
Shipping Height 0.075m
Shipping Length 0.230m
Shipping Cubic 0.003450000m3
Unit Of Measure ea
