0V - 30V DC 5A Variable Switch Mode Lab Power Supply
Power Supply for high current applications
SKU: PS2453

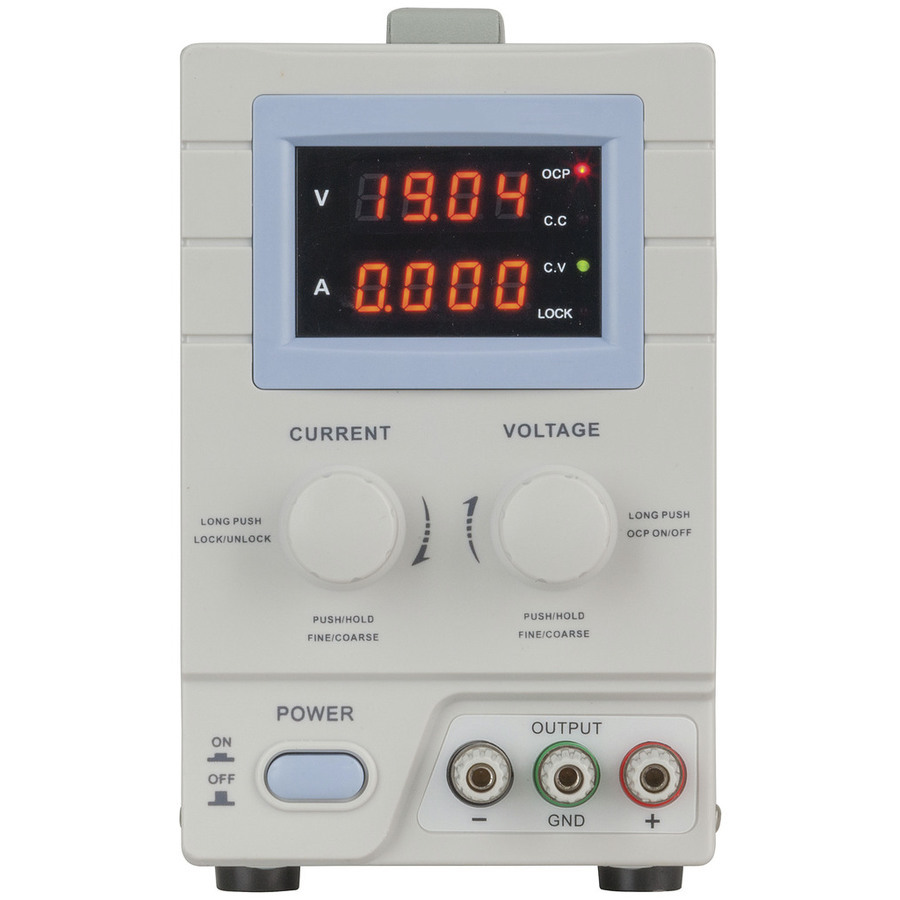

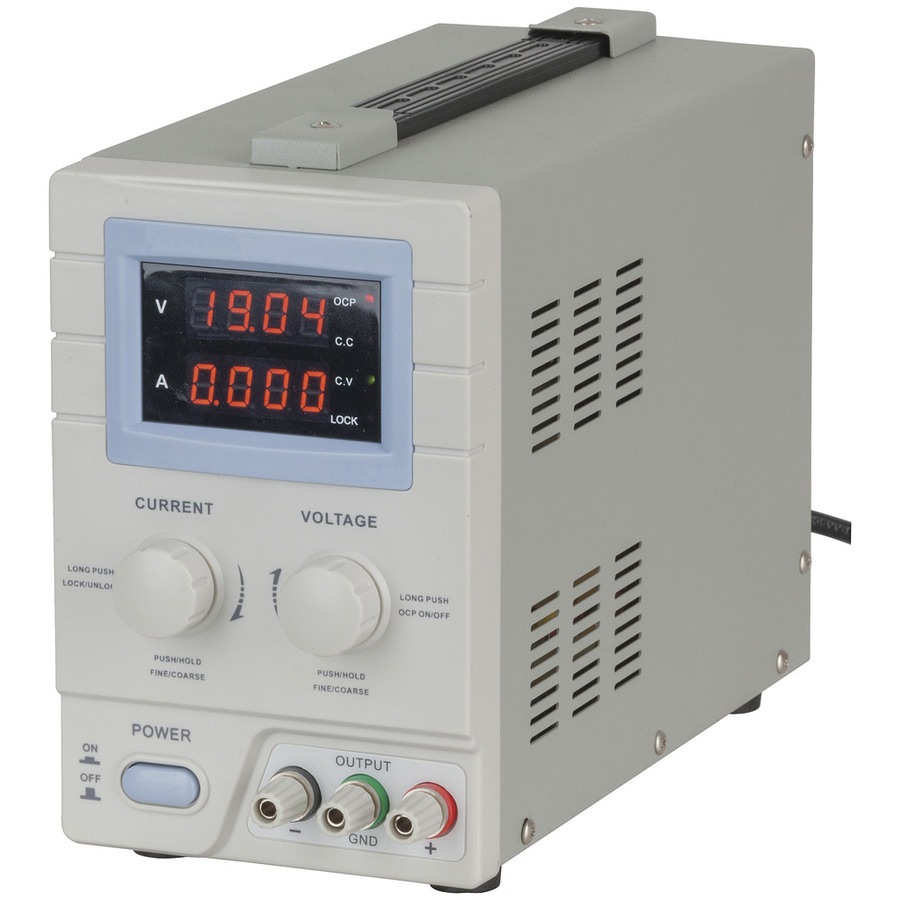

0V - 30V DC 5A Variable Switch Mode Lab Power Supply
Power Supply for high current applications

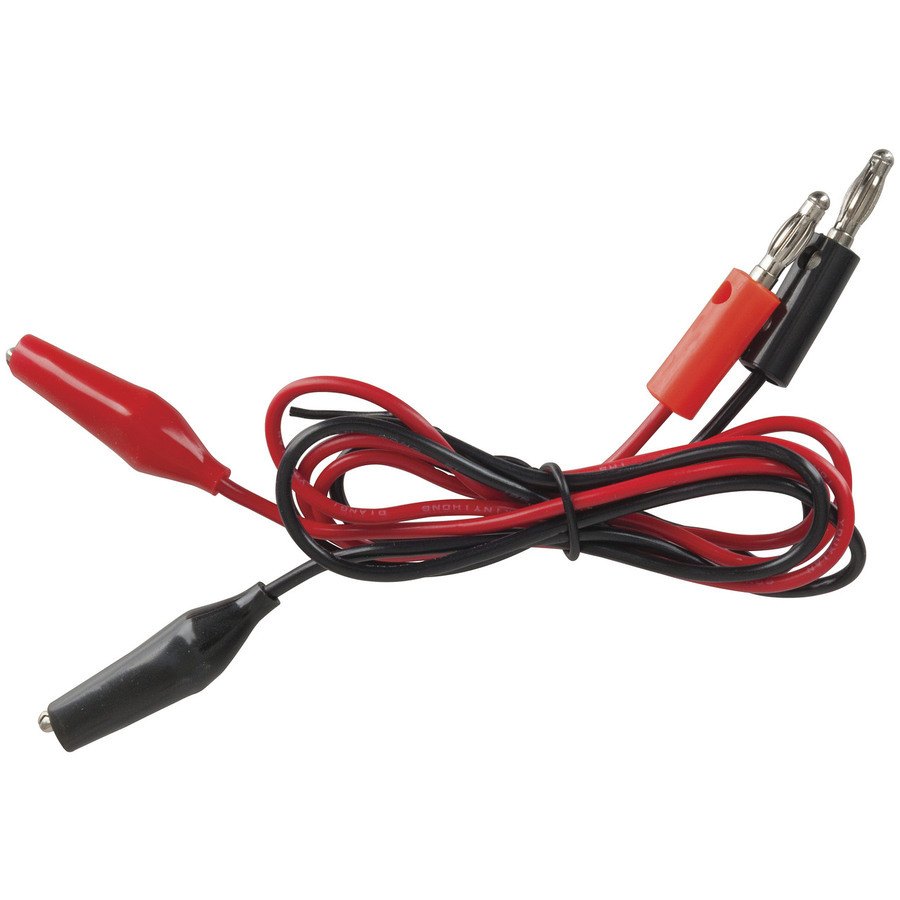

Power your devices with accuracy and the confidence that only comes with a professional lab power supply. Select precise voltage level and current limits to prevent overheating, burnout, and over-current. Of course the output is short-circuit protected too. The compact construction uses surface mount technology and a powerful internal cooling system to deliver a highly flexible power source. With ripple voltage a tiny 1mV, you know you’re getting precisely the voltage required, reducing the risk of burnout or damage when testing and prototyping sensitive components. Output voltage is adjustable from 0 to 30VDC, and output current can be limited between 0 and 5A. Banana plug/binding posts provide output on the front of the unit, while a bright LED display keeps you informed. Includes a short banana to alligator lead set.
Features:
• Precise voltage level and current limit settings
• 1mV ripple voltage
• Avoid overheating, burnout, and over-current
• Easy-to-use LEDdisplay panel
• Input voltage: 220-240AC 50-60Hz
• Output voltage: 0-30VDC adjustable (10mV accuracy)
• Output current: 0-5A adjustable (1mA accuracy)
• Ripple current: 3mA
Specifications
| AC Voltage rating : 230V |
| AC Frequency : 50Hz |
| DC current rating : 5A |
| DC Voltage : 30V |
| Length : 270mm |
| Width : 120mm |
| Height : 185mm |
| Weight : 4.8kg |
| Mains Voltage Range : 220V, 240V |
| Frequency : 50Hz |
| Rated for AU Mains : true |
| Rated for US Mains : false |
| Auto-select mains voltage : false |

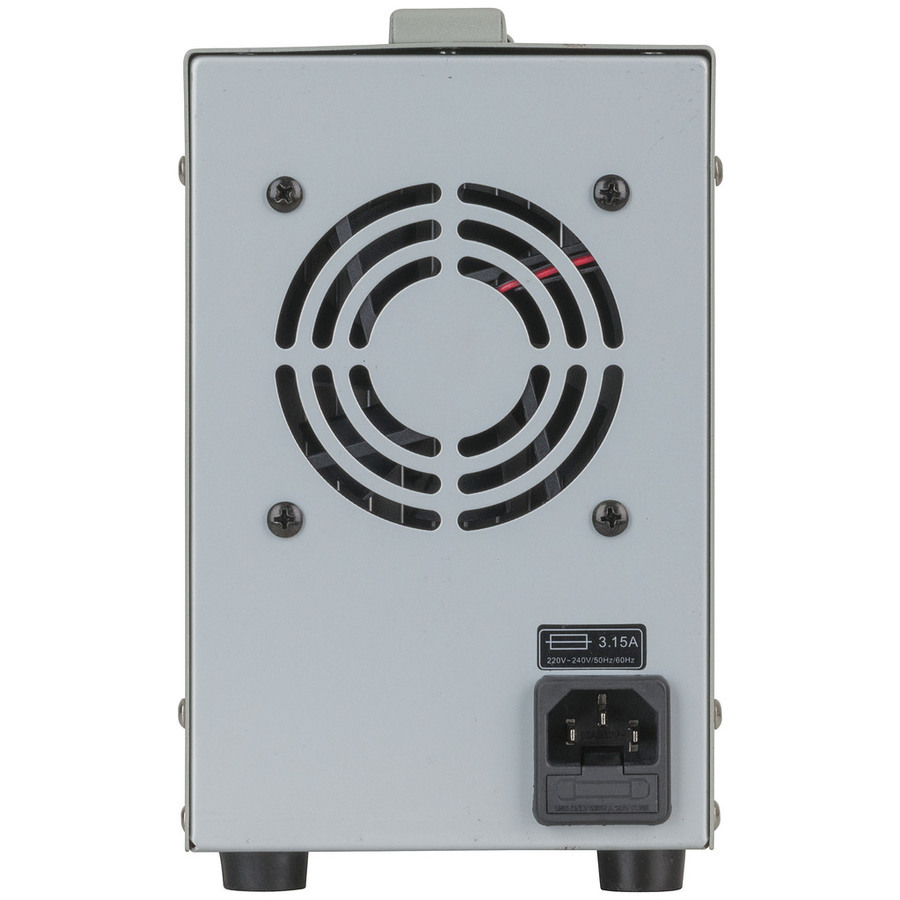

| Mains Item connection : Standard IEC320 (C13/C14) |
| Mains lead included : true |
| Packaged Volume : 15.74l |
| Packaged Weight : 5.47kg |
| Packaged Length : 30.4cm |
| Packaged Width : 20.8cm |
| Packaged Height : 24.9cm |
| Type of Power Supply : Laboratory |
| Regulation Type : Regulated |
| Voltage Display : true |
| Current Display : true |
| Output Connection : Banana 4mm (standard)Binding Post Terminals |
| Number of Outputs : 1pc |
| Ripple Voltage : 1mV |
CLICK HERE TO SEE OTHER VARIABLE POWER SUPPLIES IN OUR RANGE
3 Month Warranty
| SKU | PS2453 |
| Barcode # | 9351634063406 |
| Brand | eFuel |
| Shipping Weight | 6.5000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.240m |
| Shipping Length | 0.360m |
| Shipping Cubic | 0.001350000m3 |
| Unit Of Measure | ea |
