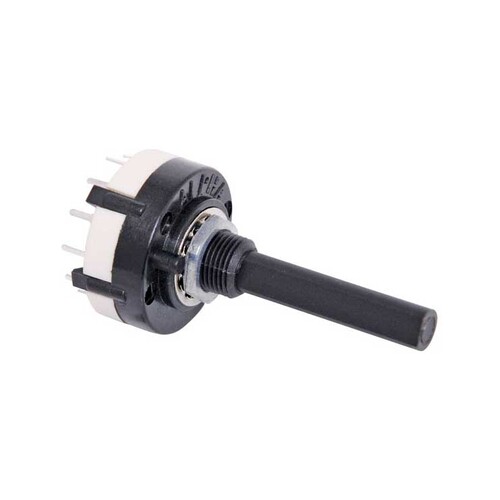

1 Pole 2-12 Position PCB Mount Rotary Switch

Rotary Switches for your Electronics Projects!

A configurable PCB mount rotary switch with 6.35mm D shaft. Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement. This model can be configured for 1 pole, 2 position up to 1 pole 12 position.

SPECIFICATIONS:

• Shaft Diameter: 6.35mm
• Shaft Length: 30mm
• Shaft Shape: Round with knob location flat
• Contact Timing: Break before make
• Contact Rating: 150mA @ 250V AC
• Contact Type: Silver Plated
• Max. Working Voltage: 300V
• Termination: 1.2 mm PCB Pins
