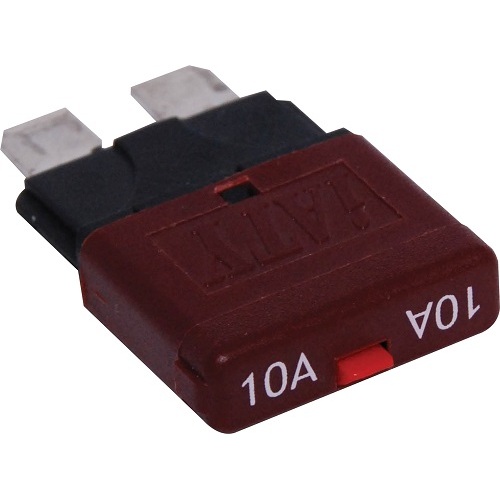

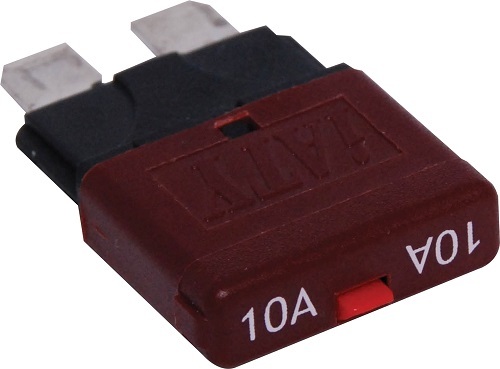

10A 12V-24V DC Circuit Breaker Blade Fuse

Replacement Automotive Blade Fuses

A resettable blade fuse style 10A circuit breaker suitable for 12V or 24V DC power systems. Suits most automotive blade fuse holders.
A drop in replacement for automative blade fuses. Max voltage 28V DC. Resettable 5mm blades.

Note: Due to the added height, these fuse/breakers are not suitable for use in some covered fuse blocks

Dimensions:

Trip Time vs % of Rated Current

Specifications:

• Rating: 10A, 28V DC.
• Colour: Light Brown
• Interrupt Rating: 100A @ 28V DC.
• Operating Temperature Rating: -40°C to 85°C
• Storage Temperature Rating: -40°C to 125°C
• Testing Standard: SAE J553
