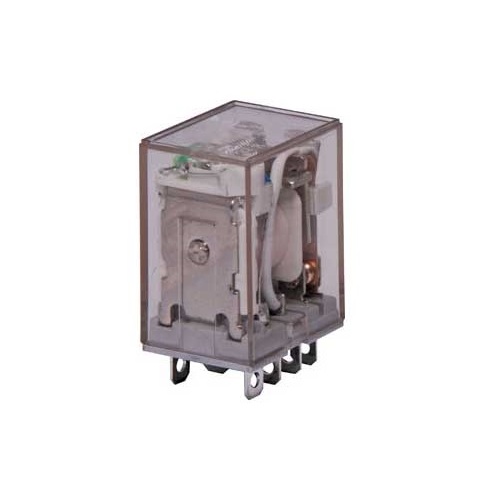

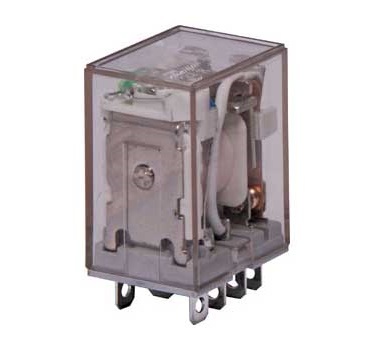

10A 12VDC DPDT Cradle Relay

12V Relay

10A DPDT relay. Cradle style featuring an in-built indicator. 12V DC coil.

• Max Switching Voltage: 300V AC, 30V DC
• Max Switching Current: 20A (total)
• Max VA (Watts): 280VA (280W)
• Contact Material: Silver Cadmium Oxide
• Coil Resistance: 160Ω
• Max Coil Power: 900mW
• Insulation Resistance: >1000MΩ @ 500V DC
• Dielectric Strength (for 1 min): 1000V AC between open contacts
• 1500V AC between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 20 million operations

  *Specifications are subject to change without notice.
