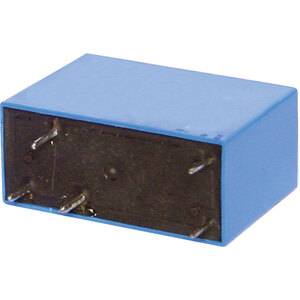

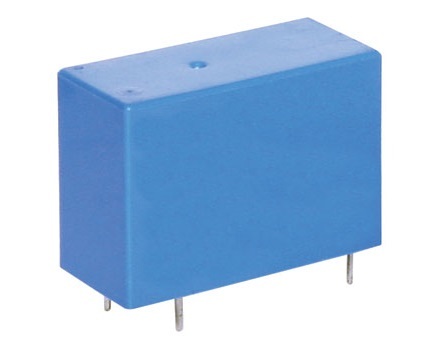

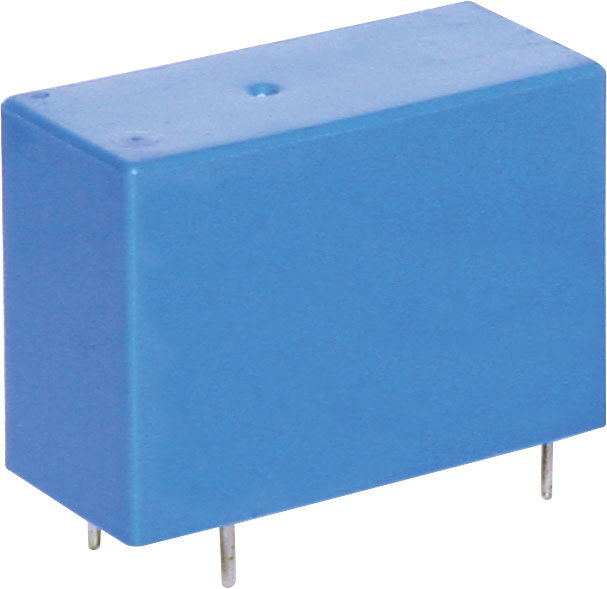

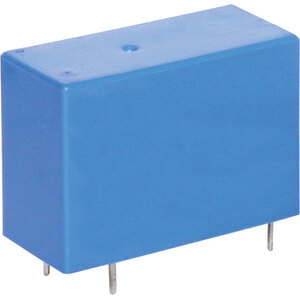

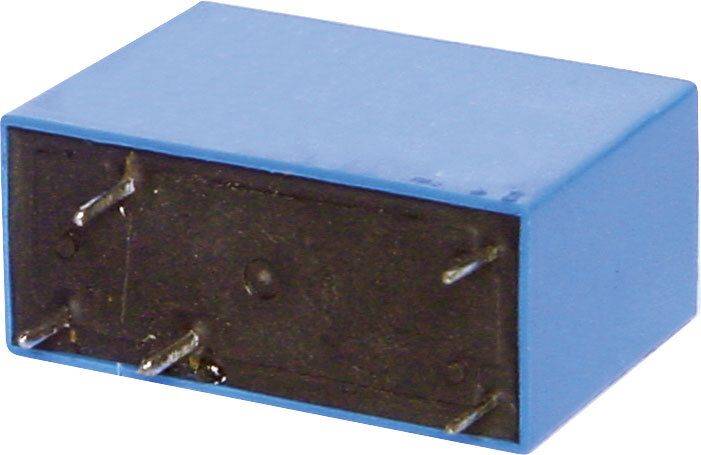

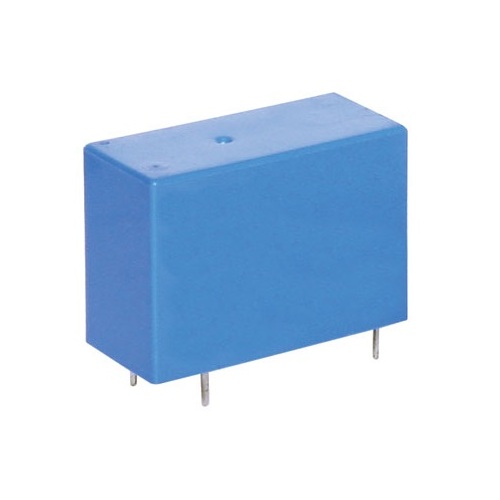

10A 12VDC SPDT PCB Mount Relay - Blue

12V Relay

SKU: ER0020


$6.50
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $6.17
Buy 11 to 20: Pay $5.86
Buy 21 to 100: Pay $5.57




Calculate Shipping

10A 12VDC SPDT PCB Mount Relay - Blue

12V Relay

Non-sealed type, suitable for flow soldering.

  • Max switching voltage: 240V AC, 110V DC
  • Max switching current: 10A
  • Max VA (Watts): 1200VA (300W)
  • Contact material: Silver Cadmium Oxide
  • Coil resistance: 200Ω
  • Max coil power: 720mw
  • Insulation resistance: >100MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical life: 100,000 operations
  • Mechanical life: 10 million operations
  • Dimensions: Ëœ29.1W x 13L x 20.6H mm"

    *Specifications are subject to change without notice

SKU ER0020
Barcode # 9351634054152
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
