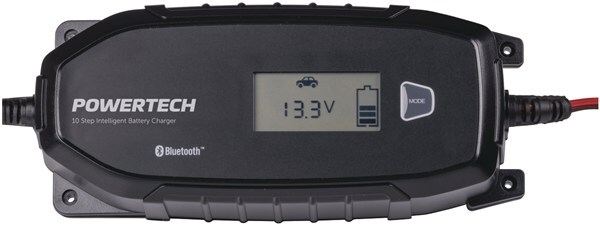

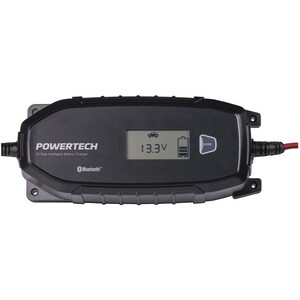

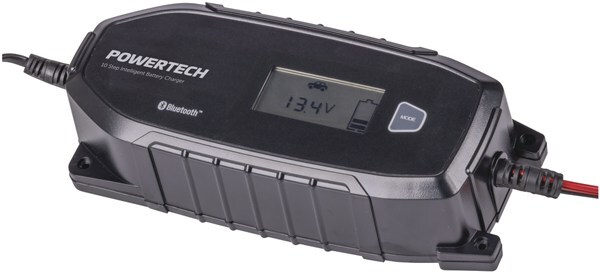

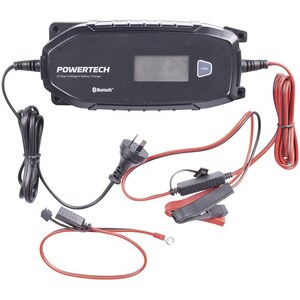

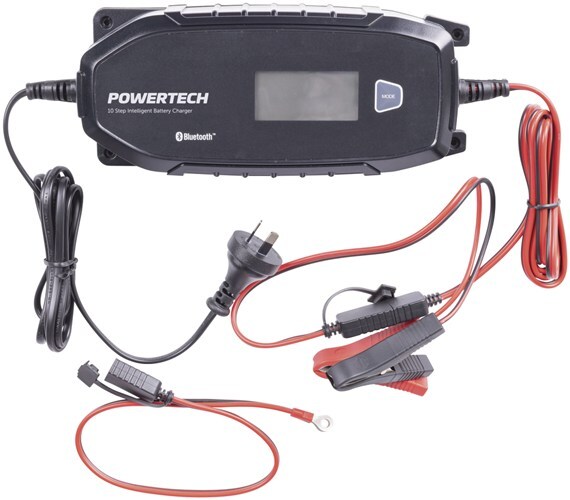

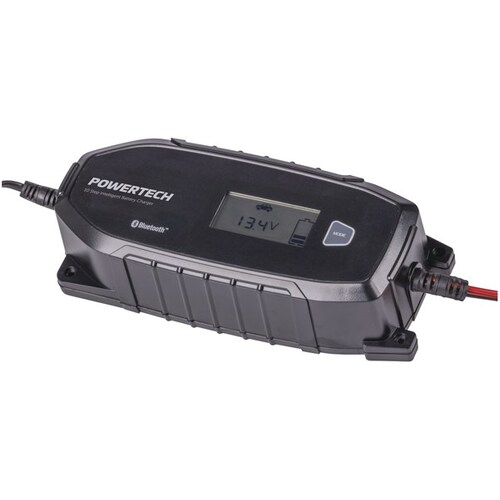

12/24VDC 7.5A 10-Step Bluetooth® Intelligent Lead Acid & Lithium Battery Charger
Fast Charger & Mainatiner for 12/24V Automotive battery
SKU: PS3542
12/24VDC 7.5A 10-Step Bluetooth® Intelligent Lead Acid & Lithium Battery Charger
Fast Charger & Mainatiner for 12/24V Automotive battery
This intelligent battery charger suits 12V or 24V LiFePO4 and Lead Acid batteries. It has 10-step charging modes to ensure your battery is in tip-top condition, and safety features include overload, short circuit, reverse polarity, safety timer and wrong battery protection. An LCD screen with pushbutton controls enables you to select the charging mode, and integrated Bluetooth® technology lets you to conveniently check and control the charging status from your Smartphone. The charger can also double as a DC power supply by providing 13.6V up to 5A. Supplied with battery clip or eye terminal leads. Mains powered.
FEATURES
- 12V or 24VDC
- 10 Step Charging
- Lead Acid and LiFePO4
- Bluetooth® Connectivity*
- 13.6V 5A DC Power Supply Option
*Please note cannot recharge a completely flat battery.
*Please note password 123456 is needed for B/T connection.
SPECIFICATIONS
Charging Voltage:
Lead Acid (normal): 14.5V/29VDC
Cold/AGM: 14.7V/29.4VDC
LiFePO4: 12.8V/4 cells
Charging Current:
- Lead Acid: 12V 7.5A, 24V 3.75A
- LiFePO4: 5A
Power Supply Output: 13.6V 5A
Ingress Rating: IP65
Bluetooth password is "123456"
Specifications
| Length : 252mm |
| Width : 109mm |
| Height : 62mm |
| Weight : 960g |
| Packaged Volume : 4.82l |
| Packaged Weight : 1.32kg |
| Packaged Length : 35.1cm |
| Packaged Width : 17.6cm |
| Packaged Height : 7.8cm |
| Type of Batteries : Sealed Lead Acid (SLA)Lithium Ferrous Phosphate (LiFePO4) |
| Charger Output Voltage : 12.8V, 29.4V |
| Charger Output Current : 5A |
| Number of Modes : 10 count |
| SKU | PS3542 |
| Barcode # | 9351634063673 |
| Shipping Weight | 1.3300kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.100m |
| Shipping Length | 0.360m |
| Shipping Cubic | 0.006840000m3 |
| Unit Of Measure | ea |
