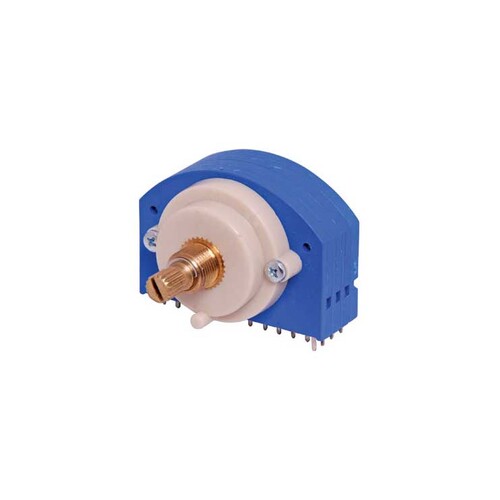

12 Position 90 Deg. PCB Mount Rotary Switch
Rotary Switches for your Electronics Projects!
SKU: AC3150
$19.95
RRP $39.95
In Stock
12 Position 90 Deg. PCB Mount Rotary Switch
Rotary Switches for your Electronics Projects!
PCB mount 2 pole, 12 position rotary switch. Break before make contacts.

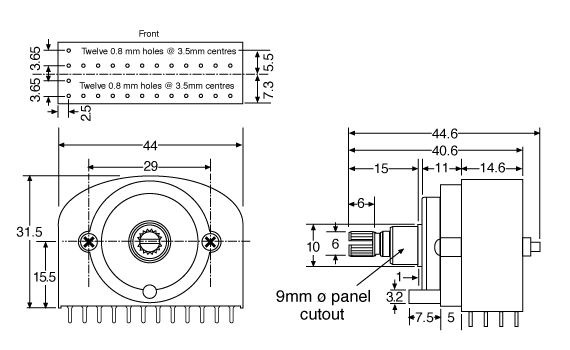

SPECIFICATIONS:
- Shaft Diameter: 6mm
- Shaft Length: 7mm
- Shaft Shape: 18 tooth spline
- Contact Timing: Break before make
- Contact Rating: 500mA @ 30V DC
- Termination: 0.8 mm PCB Pins
| SKU | AC3150 |
| Barcode # | 9321758077016 |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
