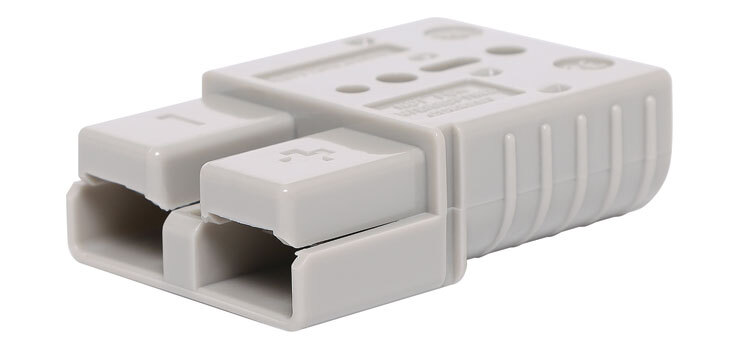

120A 600V Grey High Current DC Anderson Style Power Plug

Anderson Style Heavy Duty DC Plugs

Anderson style blue 120A DC power connector. These heavy duty DC plugs feature a reversible gender design (the same plug can be used as both male and female). Not suitable for connecting or disconnecting circuits under load.

Supplied with connector housing and two crimp lugs.




Cable Size:
38mm2. (2AWG)

• Contact barrel size (AWG): 2
• Wire size: 38mm/sq
• Current rating: 120A
• Voltage rating: 600V
• Max. wire insulation diameter: 14.6mm
• Contact retention force: 100lbs
• Operating temperature: -20º - 125ºC
• Flammability rating of housing material: UL94V-0

  *Specifications are subject to change without notice.
