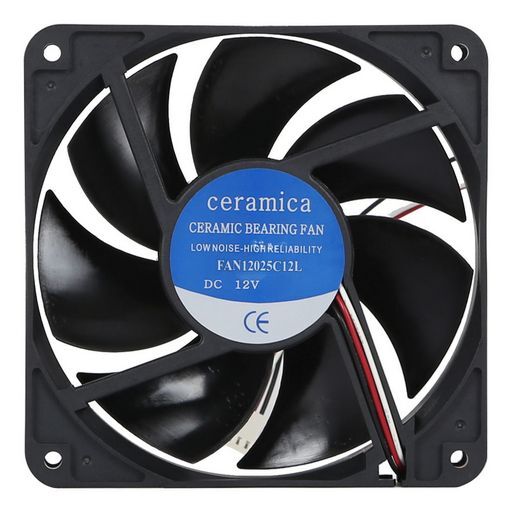

120mm 12V DC 3 Wire Ceramic Bearing Cooling Fan - 5W

12V Fan with Ceramic Bearing

DAICHI branded fans are Dual Ball Bearing Fans (Some are sleeve brearing).
CERAMICA branded Fans use the newer Ceramic Bearing Technology.

CERAMICA: Ceramic materials have come a long way since their discovery last century and the development costs have fallen dramatically due to special low cost techniques. New production developments have allowed Ceramica to develop a process of injection molding of ceramic sleeves using zirconia powder together with an adhesive to produce a very strong, flexible and durable ceramic sleeve that replaces the common plastic sleeve and/or metal bearing. These new, cost effective ceramic bearings are claimed to be far superior to the conventional ball bearing and economical sleeve bearing types of fans, offering greater performance with less noise and a longer service life of an average of 300,000 Hours!.

DAICHI: These fans are of high grade with extended life using dual ball bearing systems for greater reliability with an average service life of over 50,000 hours.

DC type cooling fans are essential for many different types of cooling applications, but they do have a relatively short life expectancy when used on products that are designed to operate continuously in hot or hostile environments. One of their major limitations comes from the bearing system within the fan mechanism. Generally, there are several options of bearings to consider. Sleeve type bearings, with an average life expectancy of 30,000Hr. Single ball-bearing or a double ball bearing types. The double has an extended life expectancy of 50,000 Hr. (Note that these figures will drop if the fan is exposed to high ambient temperatures, corrosive or hostile environments). Noise levels on these metal type bearing fans can also be a downfall, as it will increase in loudness as operational time gets longer. Ceramica fans offer a vast improvement to these systems with their new range of Ceramic Sleeve Bearing Fans which offer the advantages of all systems plus even longer life by using new materials technology.


• Dual (2) Ball-Bearing fans from Daichi offer improved relaibilty with a longer service life over single ball bearing and sleeve type fan systems.
• Ceramic bearings run more smoothly, are quieter than their metal ball raced equivalents and their life expectancy is increased by a factor of six!
• While the average life span of a ball bearing fan is 50,000 Hr a ceramic equivalent model has a 300,000 Hr life expectancy.
• Zirconia (or ceramic steel) offers the traditional ceramic benefits of hardness, wear resistance and corrosion resistance, without the typical characteristic ceramic property of absolute brittleness.
• An ideal solution has been formulated with a product using Zirconia powder that can be injection molded for an economical manufacturing process.

BEARING TYPES
Each fan in stock is listed with its bearing type:
Cer. Ceramic Ball Metal Ball Bearing Slv. Sleeve CU-Sintered
High-Reliability High-Reliability Line contact sleeve
Low-Noise Double Ball type Low-Noise
Cost-Effective Cost-Effective Cost-Effective

Specifications:

Description    Ceramica 12V Fan with Ceramic Bearing - 120x120x25mm
Volts    12V
Size    25mm
Watt    5.0W
Depth    25mm
Speed    3000rpm
Bearing    Ceramic
Wire    3x
Air    106cfm
Noise    51dB
Manufacturer    Ceramica
Dimensions    120x120x25mm
