120mm 240V AC Ball Bearing Cooling Fan

Cooling Fans and Accessories

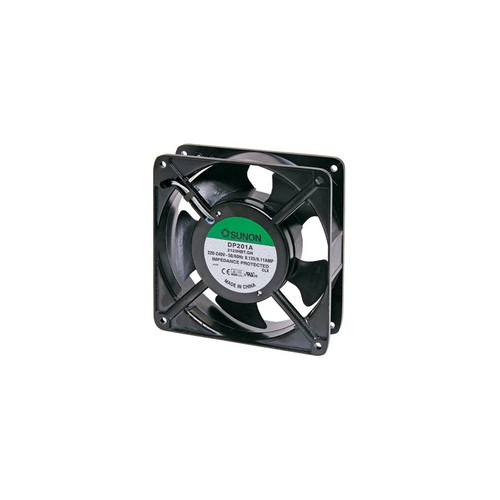

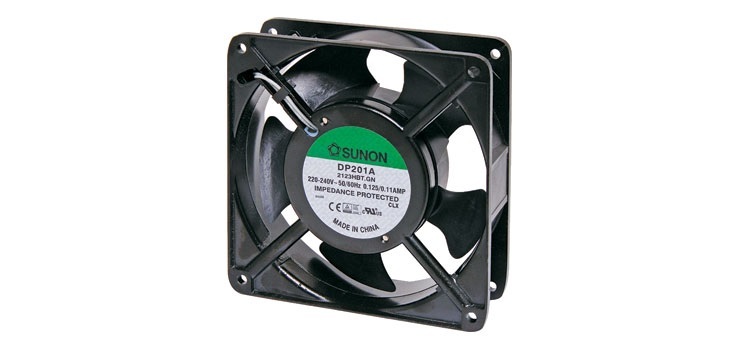

A 240V AC 120mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

Designed for long-life and minimal noise operation.

Sunon DP201A-2123HBT.GN 240V AC 120mm Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings

SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: Shaded pole motor construction
• Motor Protection: Impedance protected
• Bearing System: Precision ball bearing system
• Frame Material: Die-cast aluminium
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 550g
• Dimensions: 120 x 120 x 38mm

Electrical Characteristics

• Rated Voltage: 220-240V AC at 50/60Hz
• Rated Current: 0.125/0.11A
• Rated Power: 20/19W
• Operating Voltage Range: 185-245V AC
• Starting Voltage: 185V AC (25° Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 2750/3050 RPM ±10%
• Air Flow: 87/107 CFM
• Static Pressure: 0.26/0.32 Inch-H2O
• Noise Level: 45/50dB(A)
