120mm 24V DC Ball Bearing Cooling Fan

Cooling Fans and Accessories

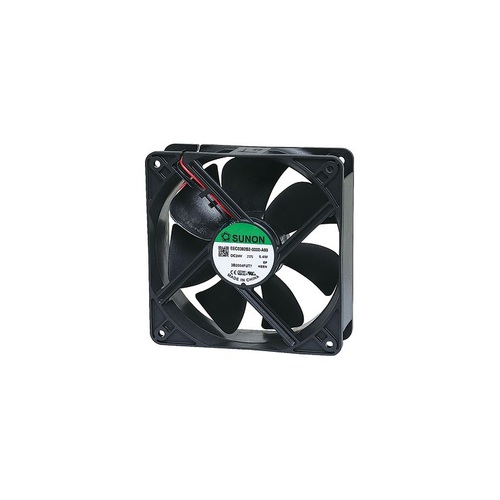

A 24V DC 120mm Sunon Ball Bearing Cooling Fan with thermoplastic frame

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.

SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: 2 phases, 4 poles brushless DC motor
• Bearing System: Precision ball bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 214g
• Dimensions: 120 x 120 x 38mm

Electrical Characteristics

• Rated Voltage: 24V DC
• Rated Current: 224mA
• Rated Power Consumption: 5.4W
• Operating Voltage Range: 10~27.6V DC
• Starting Voltage: 10V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 2600 RPM ±10% at rated voltage
• Air Flow: 116 CFM
• Static Pressure: 0.26 Inch-H2O
• Noise Level: 44dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 70,000 hours at 40°C, 65% RH, 90% CL
• Protection: Automatic restart, polarity protection
