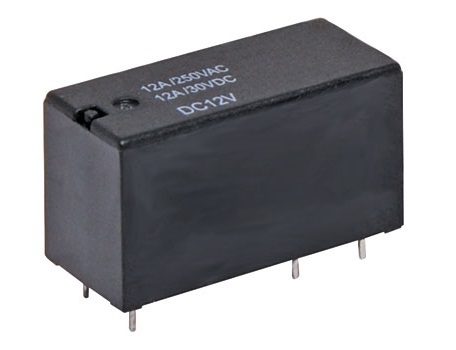

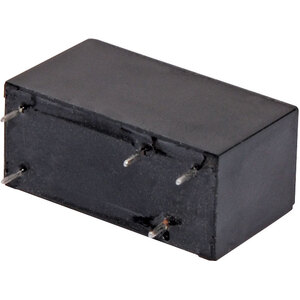

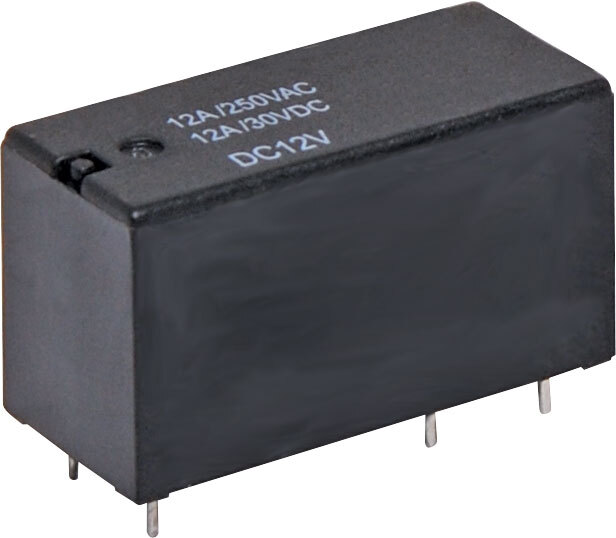

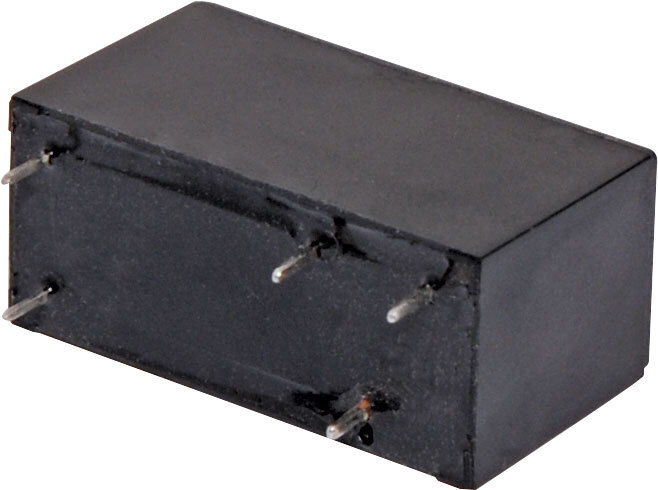

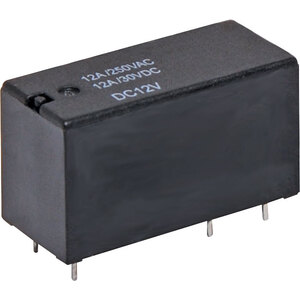

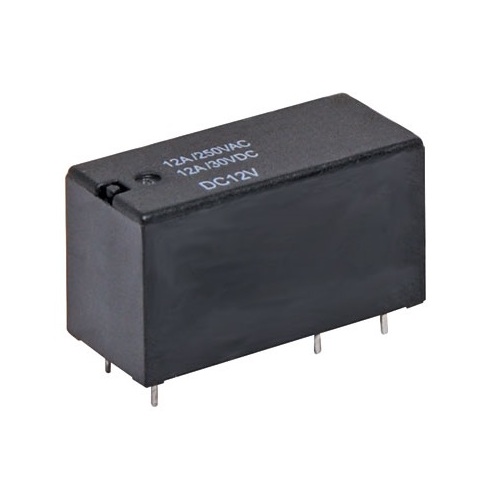

12A 12VDC SPDT PCB Mount Relay

12V Relay

12A SPDT relay. PCB mount style. 12V DC coil.
Non-sealed type, suitable for flow soldering. For a plug-in relay base to suit, see ER0019.

PCB Layout:

• Max Switching Voltage AC: 440V
• Max Switching Voltage DC: 125V
• Max Switching Current AC: 12A
• Max Switching Current DC: 12A
• Max Switching Power AC: 600VA
• Max Switching Power DC: 480W
• Contact Material: Silver alloy
• Coil Resistance (12V): 351Ω
• Max Coil Power: 400mW
• Insulation Resistance: >1000MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 1000V AC between open contacts
• 5000V AC between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 10 million operations
• Dimensions: 29W x 12.7L x 15.7H mm

  *Specifications are subject to change without notice
