12A 24VDC SPDT PCB Mount Relay

24V Relay

SKU: ER0036


$7.50
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $7.12
Buy 11 to 20: Pay $6.76
Buy 21 to 100: Pay $6.43




Calculate Shipping

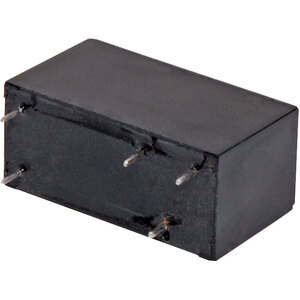

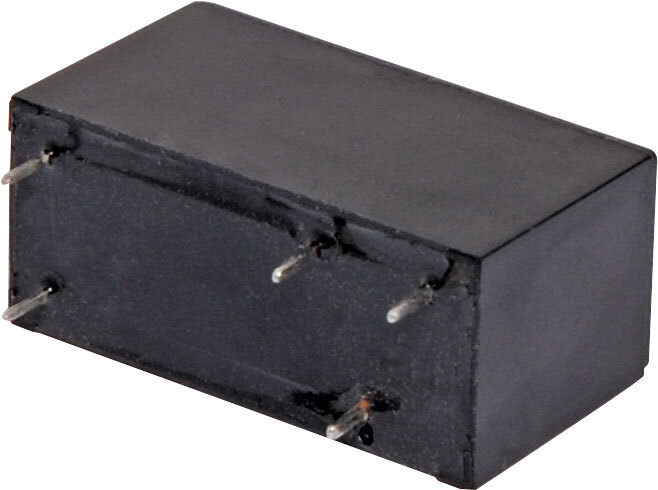

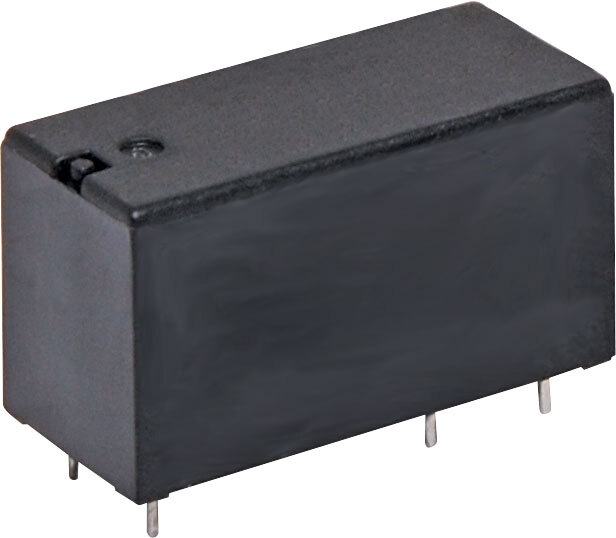

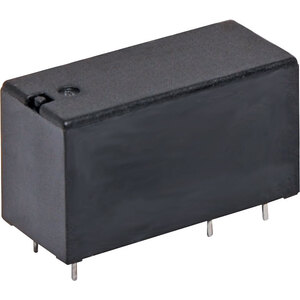

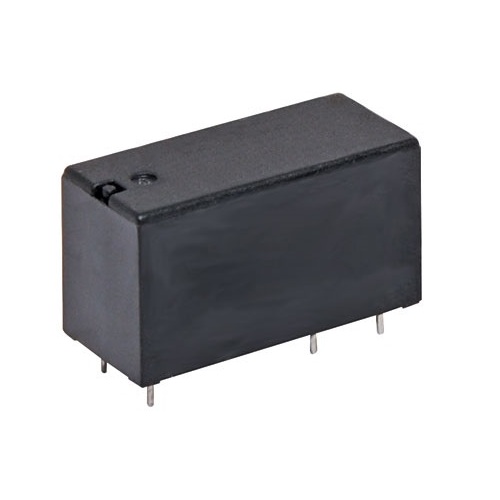

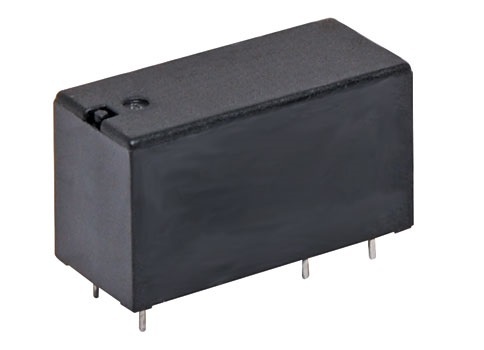

12A 24VDC SPDT PCB Mount Relay

24V Relay

12A SPDT relay. PCB mount style. 24V DC coil.
Non-sealed type, suitable for flow soldering. For a plug-in relay base to suit, see ER0019.

PCB Layout:

  • Max Switching Voltage AC: 440V
  • Max Switching Voltage DC: 125V
  • Max Switching Current AC: 12A
  • Max Switching Current DC: 12A
  • Max Switching Power AC: 600VA
  • Max Switching Power DC: 480W
  • Contact Material: Silver alloy
  • Coil Resistance (12V): 1405Ω
  • Max Coil Power: 400mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 29W x 12.7L x 15.7H mm

    *Specifications are subject to change without notice

SKU ER0036
Barcode # 9351634054312
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
