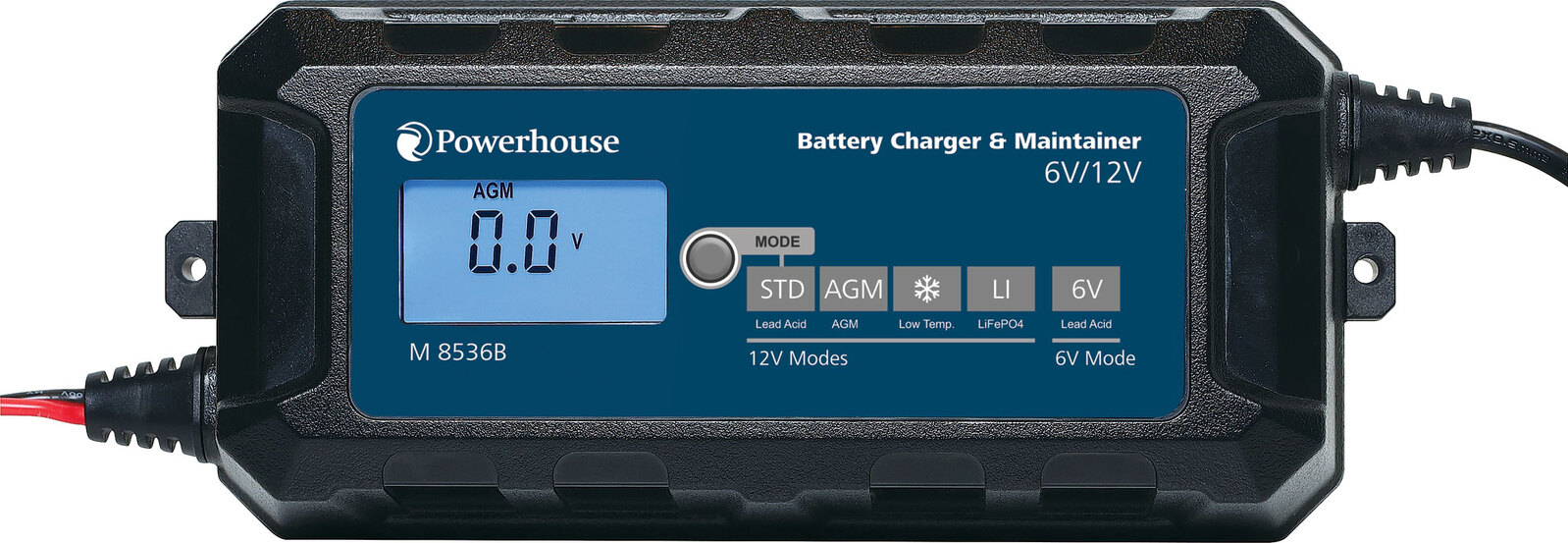

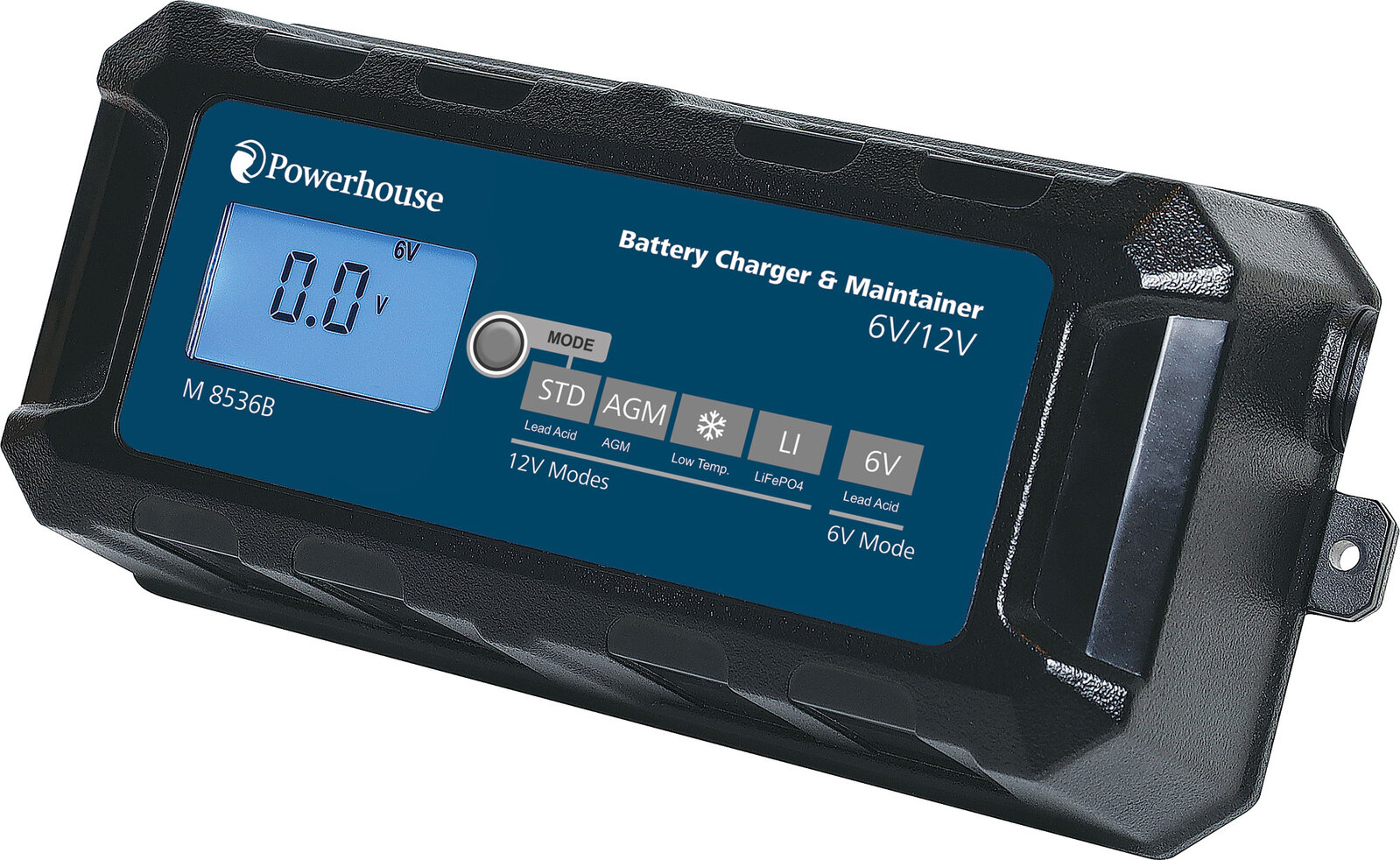

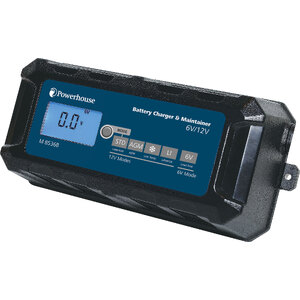

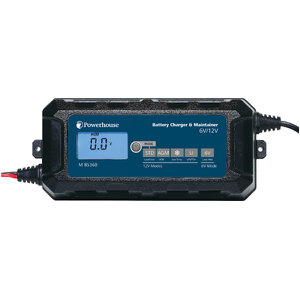

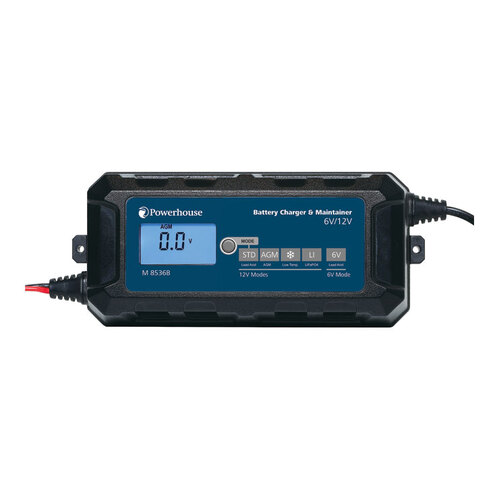

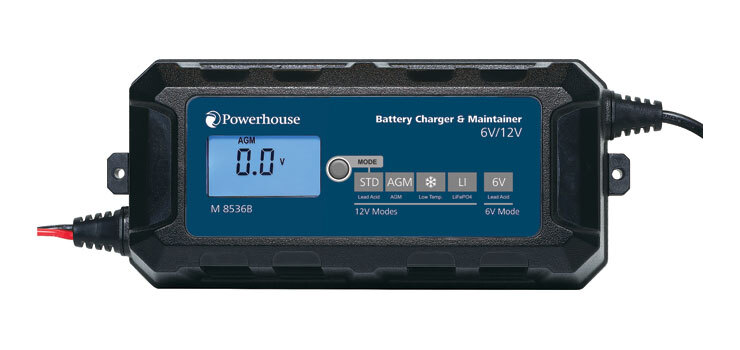

12V 10A / 14.4V 9A Automotive Battery Charger

Fast Charger and Mainatiner for 12V Automotive battery

This compact charger is suitable for all lead acid type and Lithium (LiFePO4) type batteries. It will charge 6V/12V cells using a 6-stage charging circuit. The circuitry automatically diagnoses the battery state and delivers the appropriate charge current to maintain optimum performance. The charger may be permanently connected without overcharging or damaging the battery, which is ideal for seldom used vehicles.

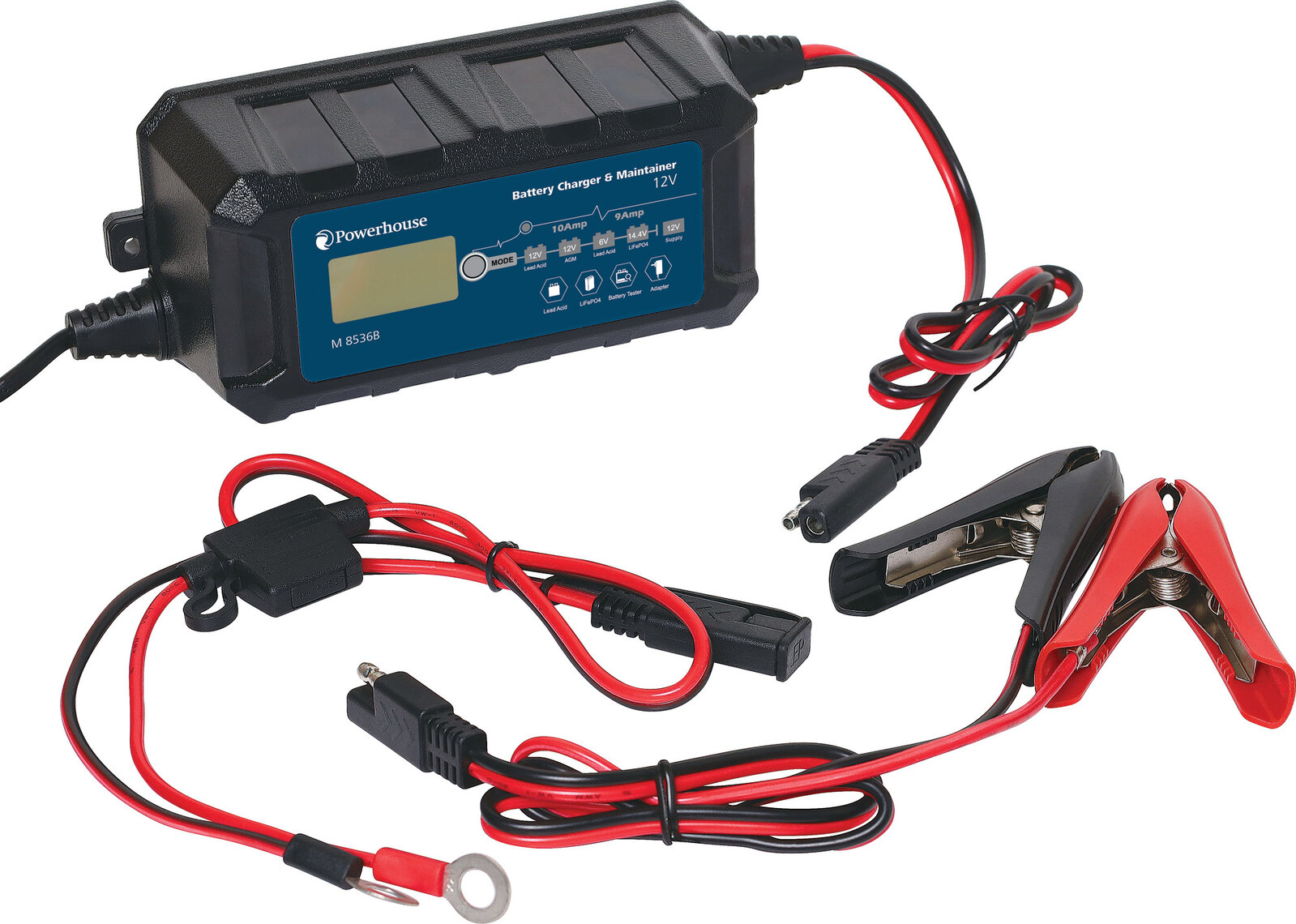

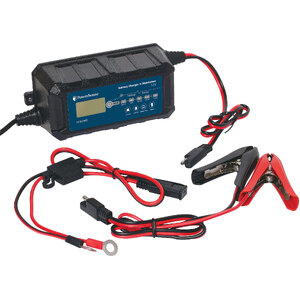

Package Contents
1x Battery charger
1x Operating instructions
1x Cable with battery clamps
1x Cable with o-ring connectors
1x Cable with cigarette lighter plug


Features

• Short circuit and reverse polarity protected
• Overheating protection
• Includes car accessory socket lead, battery clamps and ring terminal lead
• Suits 12V cells
• Defective cell detection
• Trickle charge function
• IP65 rated

Specifications:

• Input: Auto-switching 110V-220V AC 50/60Hz
• Input Cable: 14AWG U.S.SPT-2/EU-H03W AUST/NZ-H03WV
• Output: 6V 10A for Pb batteries; 13.8V 10A for Pb batteries; 14.4V 9A for LiFePO4 batteries; 14.9V 10A for AGM Battery; 12V 10A for DC adapter
• Output Cable: Clamp cable length 23.6 inch; Ring terminal cable length 23.6 inch; Cigarette cable length 23.6 inch
• Max Voltage: 14.5V Lead-Acid (Pb) batteries; 14.9V AGM batteries; 14.4V LiFePO4 batteries
• Output Cable: 14 AWG
• Min Starting Voltage: 2.0V (the charger cannot charge batteries under 2.0V)
• Fuse Protected Cables: 10A
• Cooling: Natural
• Operating Temperature: -10°C to 50°C
• Waterproof Rating: IP65
• Battery Capacity: Charging and maintenance all 12-120Ah Lead-Acid batteries; Charging 5-36Ah LiFePO4 batteries

  *Specifications are subject to change without notice.
