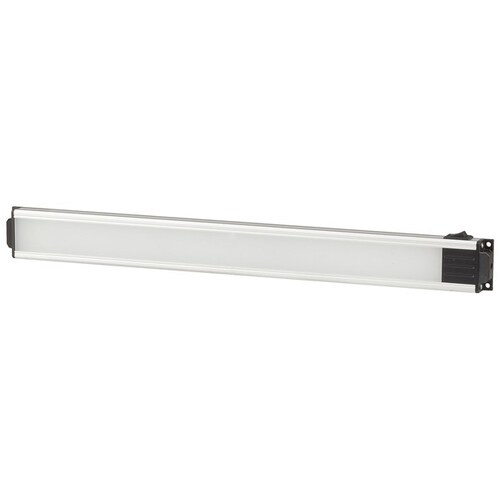

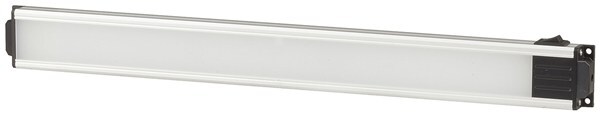

12V 48 LED Aluminium LED Strip with Switch
Complete your light projects with our Rigid LED strips
SKU: OP1650
A quick and easy LED strip light solution. The LED strip is pre-assembled in the channel diffuser with an integrated switch encased in attractive anodised aluminium alloy. They feature a generous beam angle with evenly distributed light thanks to the frosted white diffuser. Great for use on window displays, restaurant foyers, showrooms, hotels, and caravan or RV applications. Four mounting screws are included for fast and easy installation. Available in 48 and 84 LED strips.
Suitable accessories:
In-line dimmer: 12VDC/24VDC LED Dimmer Switch
Recommended power supply: 12VDC 1.5A
Specifications
| Packaged Volume : 0.97l |
| Packaged Weight : 0.14kg |
| Packaged Length : 39.1cm |
| Packaged Width : 10.8cm |
| Packaged Height : 2.3cm |
| Length : 313mm |
| Width : 30mm |
| Height : 12mm |
| DC Plugpack Voltage : 12V |
| DC Current Draw : 0.42A |
| Item Connection : Barrel Plug |
| Suitable PSU Included : false |
| Connection Size (Inner Diameter) : 1.3mm |
| LED Connection : SMD |
| LED Type : 3528 SMD |
| LED Quantity : 48pc |
| Colour Temperature : 6000K, 6500K |
| Outdoor Light Type : Universal Strip / Module |
| Light Layout : Single Row Array |
- Input: 12V DC
- Chip Size / LEDs: 2538 SMD (39pcs)
- Wattage: 5 Watts
- Colour: Warm White 2800-3200K
- Lumens: 975lm max per strip
- CRI: 80
- Rated Lifetime: > 50,000 hours
- Dimmable: Yes with X3234
- Dimensions: 25W x 10H x 500L mm
*Specifications are subject to change without notice.
| SKU | OP1650 |
| Barcode # | 9351634069521 |
| Brand | Aus Electronics Direct |
| Shipping Weight | 0.2125kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000750000m3 |
