12V Infrared Reversing Camera with Mounting Bracket

Tough Waterproof Reversing Camera

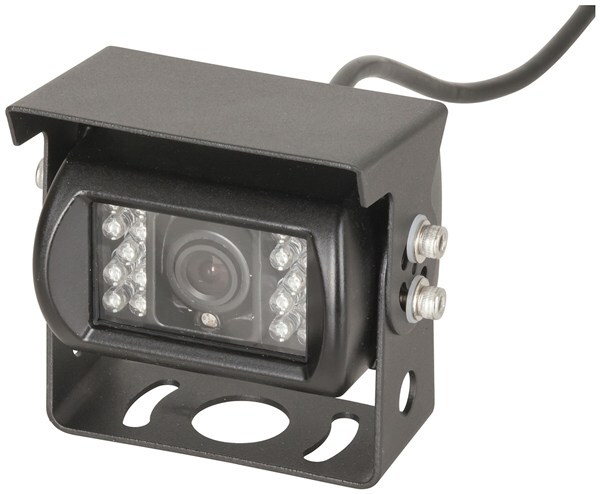

The camera housing is constructed using tough aluminium alloy and equipped with a black metal shield which helps deflect sun glare, rain and dust.  It is shock and vibration resistant and fitted with Infrared LEDs for night illumination. It is IP68 rated and suitable for heavy duty applications such as trucks, buses, RV's and caravans.

Features:
•    Sensor: Sharp ¼ CCD
•    Resolution: 420 TV lines
•    Minimum Illumination: 0.5Lux
•    IP Rating: IP68
•    Video out: 1Vp.p. 75 ohm
•    Power Supply: 12VDC only, not suitable for 24VDC applications
•    Operating temperature: -20 - +70 deg C, RH95 max.

Specifications:
Camera View Angle : 120°
IP Rating : IP68
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 8 - Immersion beyond 1m
IP Rating certificate : true
Packaged Volume : 0.97l
Packaged Weight : 0.51kg
Packaged Length : 13.6cm
Packaged Width : 9.5cm
Packaged Height : 7.5cm
