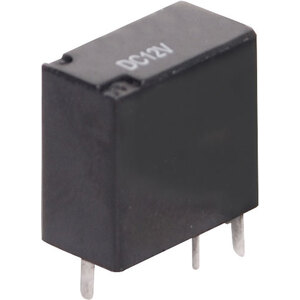

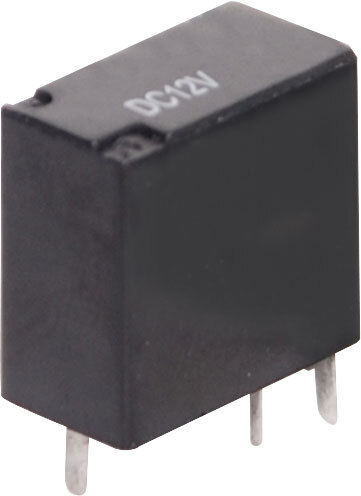

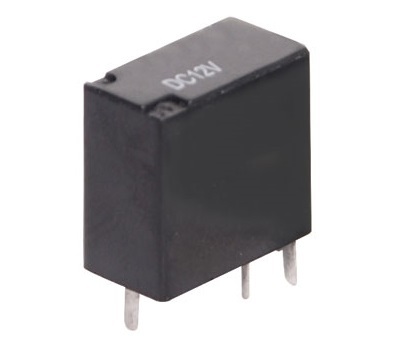

12VDC 25A SPDT Automotive Relay

12V Automotive Relay

A 25A SPDT relay. Automotive type. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

• Max Switching Voltage AC: Not suitable
• Max Switching Voltage DC: 16V
• Max Switching Current AC: Not suitable
• Max Switching Current DC: 30A
• Max Switching Power AC: Not suitable
• Max Switching Power DC: 480W
• Max Continuous Current: 25A
• Contact Material: Silver Tin Dioxide
• Coil Resistance: 225Ω
• Max Coil Power: 640mw
• Insulation Resistance: >100MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 500V AC between open contacts
• 1000V AC between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 10 million operations
• Dimensions: 7.5W x 14.5L x 14H mm

  *Specifications are subject to change without notice.
