15kg Metal Gear Analogue Servo
Suitable for 1:10th scale RC steering applications
SKU: HS0108
15kg Metal Gear Analogue Servo
Suitable for 1:10th scale RC steering applications

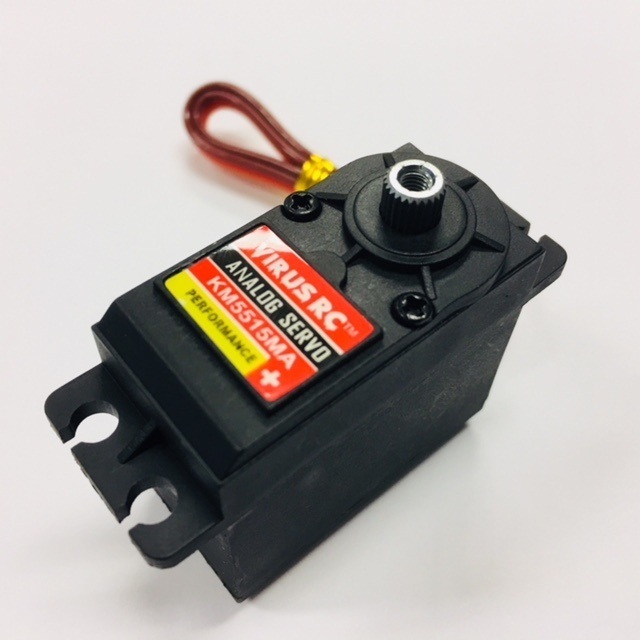

Virus Rc VRSKM5515MA 15kg Metal Gear Analogue Servo
- Standard size
SPECIFICATION:
Dead band: 4μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 300hz
Operating Voltage: DC4.8~6.0 V
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8V): 0.15sec/60 dagrees at no load
Operating Speed (6V): 0.13 sec/60 dagrees at no load
Stall Torque (4.8V): 15.25kg. Cm (211.82oz/in)
Stall Torque (6V): 16.58 kg-cm (230.30 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.2X20.5X43.5mm /1.58 X0.81X1.71 in
Weight: 55.6 g (1.96oz)
Connector Wire Length: JR 180 mm (7.09in)
FEATURE:
--High torque and quick respond
Standard servo
--High-precision aluminium gears
Ensure long-life and durability
--Tiny gear clearance
--Dual ball bearings
--Water proof
SKU | HS0108 |
Barcode # | 9351634023622 |
Brand | Tornado |
Shipping Weight | 0.1000kg |
Shipping Width | 0.080m |
Shipping Height | 0.030m |
Shipping Length | 0.080m |
Shipping Cubic | 0.000192000m3 |
15kg Metal Gear Analogue Servo
By: Steve on 14 April 2022Awesome servo great price excellent power an speed highly recommend
(5)
