16A 12VDC SPDT PCB Mount Latching Relay

12V Relay

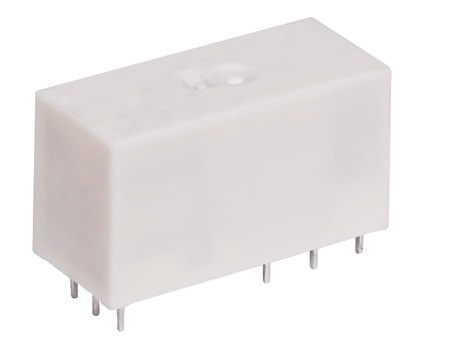

16A SPDT mini relay. PCB mount style. 12V DC coil.
Double coil magnet latching relay. Coil requires pulse with voltage equivalent to the nominal coil voltage to operate. Ensure latch and reset coil are not powered simultaneously. Non-sealed type suitable for flow soldering.

• Max Switching Voltage AC: 440V
• Max Switching Current AC (250V): 16A (2 coil 0.6W)
• Max Switching Power AC: 4000VA
• Contact Material: Silver alloy
• Coil Resistance: 2 x 240Ω
• Max Coil Power: 0.6W
• Insulation Resistance: >1000MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 1000V AC between open contacts
• 5000V AC between coil & contact
• Electrical Life: 50,000 operations
• Mechanical Life: 5 million operations

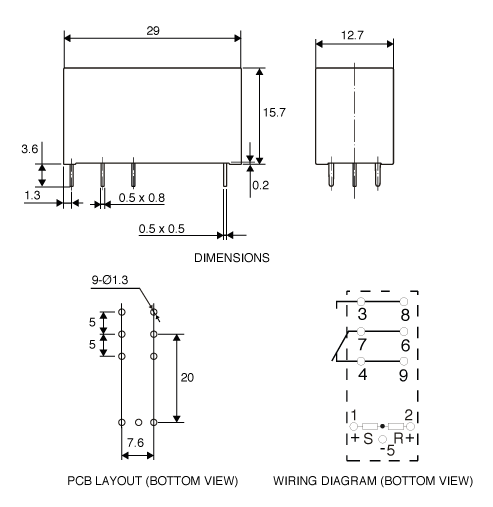

• Dimensions: 12.7W x 29L x 15.7H mm (excluding terminals)

  *Specifications are subject to change without notice
