16A 24VDC SPDT PCB Mount Relay

24V Relay

SKU: ER0025


$5.75
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $5.46
Buy 11 to 20: Pay $5.18
Buy 21 to 100: Pay $4.92




Calculate Shipping

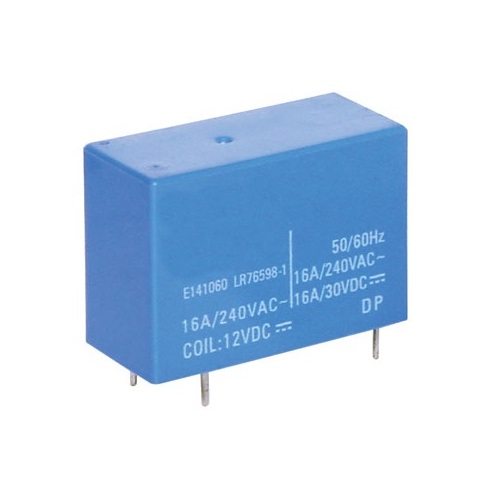

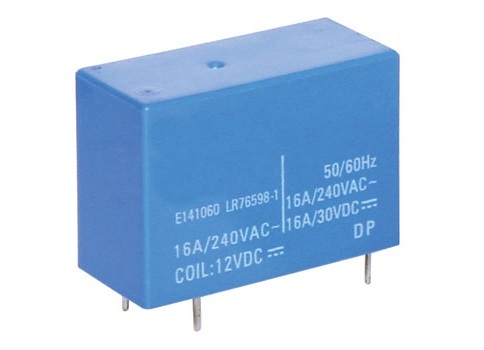

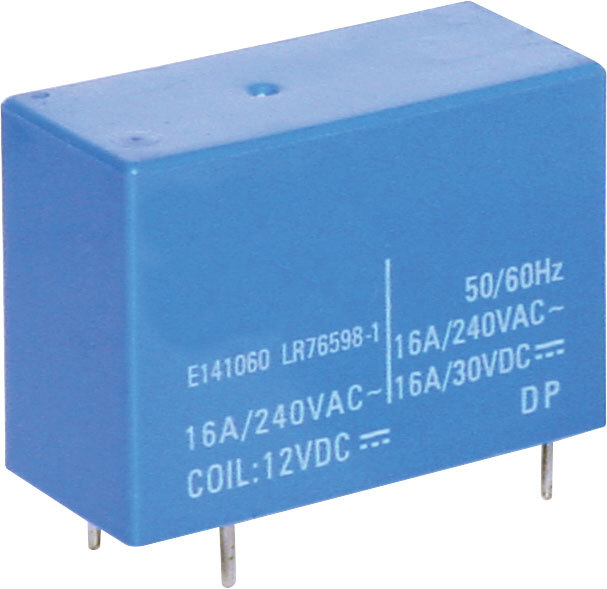

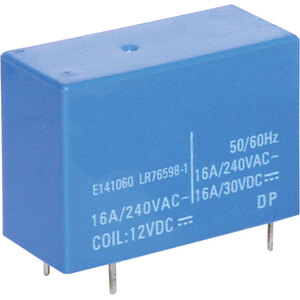

16A 24VDC SPDT PCB Mount Relay

12V Relay

16A SPDT relay. PCB mount style. 24V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

  • Max Switching Voltage: 250V AC, 110V DC
  • Max Switching Current: 16A
  • Max VA (Watts): 1800VA (450W)
  • Contact Material: Silver Selenium Dioxide
  • Coil Resistance: 820Ω
  • Max Coil Power: 720mw
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 13W x 29L x 21H mm

    *Specifications are subject to change without notice

SKU ER0025
Barcode # 9351634054206
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
