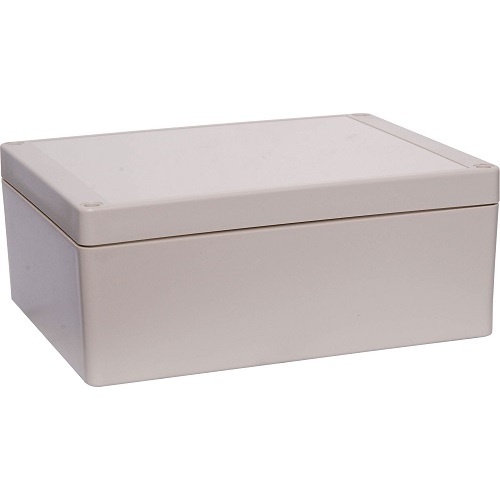

186 x 146 x 75mm IP65 Sealed ABS Enclosure

Keep Your Circuits & Connections Protected

Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Available with transparent or solid colour lid. PCB mounting points are moulded into the enclosure base.These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.


Features

• Meets IP65 Dust- and Hose-proof standards
• Brass screw thread inserts
• Neoprene gasket seal
• Moulded PCB mounting points
• Manufactured from high impact ABS
• Useable temperature range of -30°C to +80°C
• Available with a solid light grey lid or a polycarbonate clear lid (see H 0330)
• 186L x 146W x 75H
