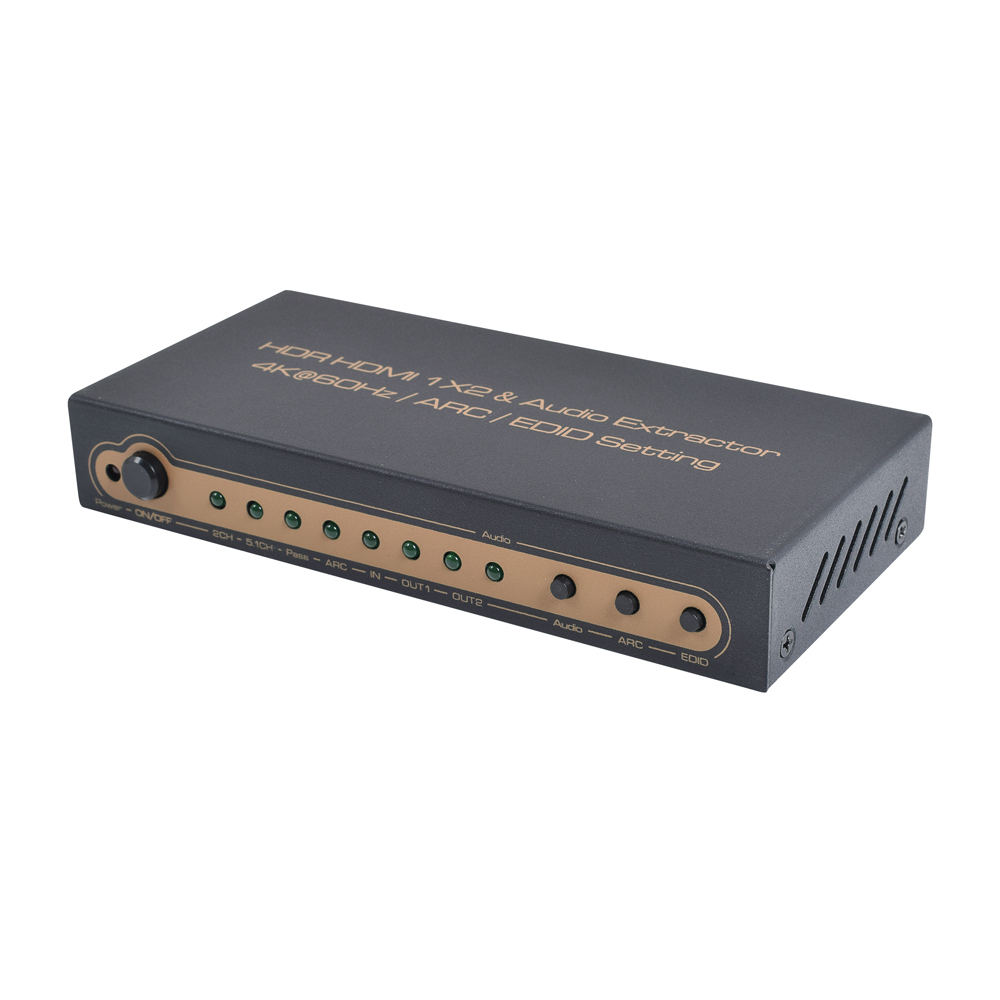

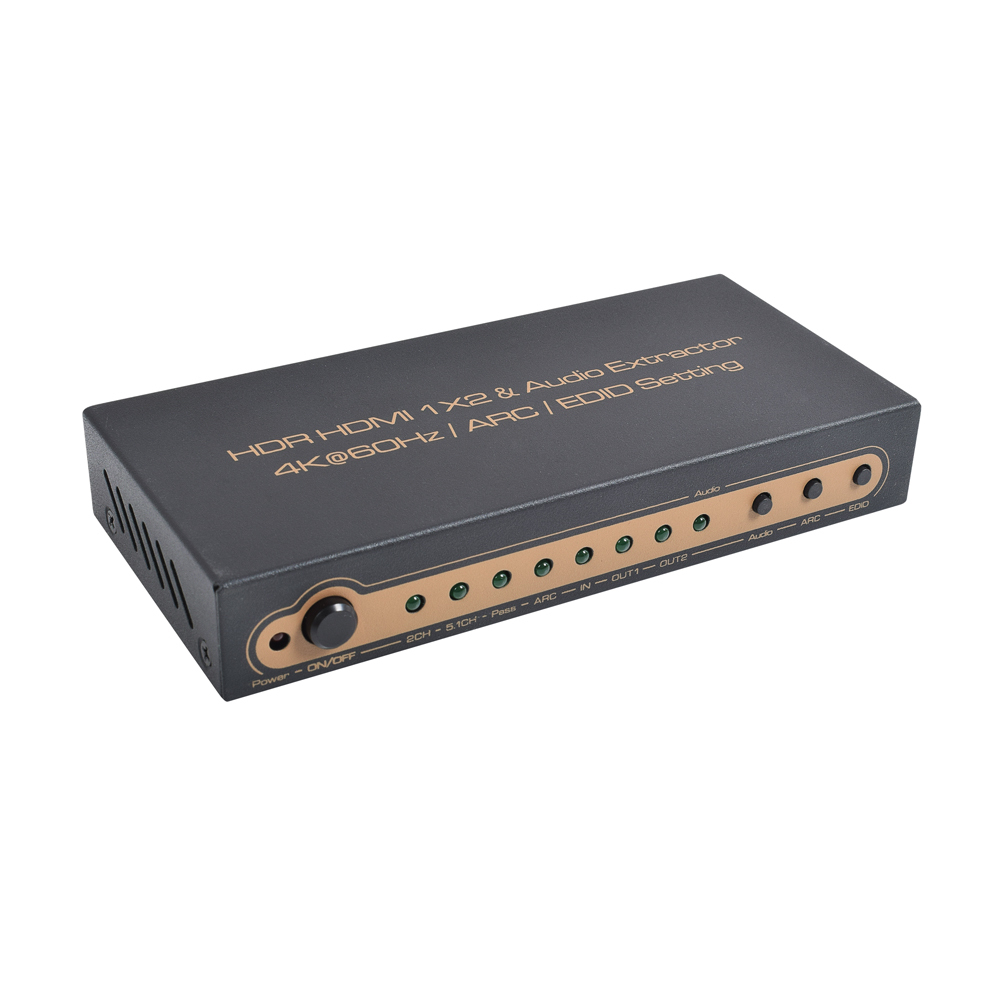

2 port HDMI 2.0 HDR Splitter with Audio Extractor

Allows connection of 2 4K Displays & Audio Receiver Amp

This HDMI 2.0 two way splitter allows for you to connect 2 x 4K HDMI LCD / TV to a 4K HDR source.  It has an EDID / Down scaler functionality so it is able to match the displays resolution; e.g. both 4K or mixed 4K and 1080p. It integrates an audio extractor so you are able to connect an amplifier / receiver via the digital toslink or analogue line level RCA outputs. Supports ARC, HDR, UHD, HLG and Dolby Vision.

Input channel HDMI port x1

Output channel HDMI port x2、Toslink port x1、L/R port x1

ARC features Support Toslink

Video format HDR、UHD、HLG、Dolby Vision

Resolution format 480P/720P/1080P/2160P@60/50/30/25/24(Support1080P@120)

Scale down

format Supports 4K@60/50/30/25/24(RGB/YCbCr444/422/420) scale

down to1080P

Deep color 8/10/12Bit@480P/720P/1080P 8Bit@2160P

Digital audio output supported audio format LPCM2.0/DTS/DOLBY-AC3……

HDMI Input cable length 2160P/AWG 26 ≤5m

1080P/AWG 26 ≤10m

HDMI Output cable length 2160P/AWG 26 ≤5m

1080P/AWG 26 ≤10m

DAC sample frequency range 32～192 KHz

HDMI transmission bandwidth 25~600MHz

HDMI transmission rate 0.75~18Gbps

Power adapter specification Input: AC 100~240V Output: DC 5V/1A

Max working current 400mA

Working temperature range 0 ~ +40℃

Working humidity range 5 to 85%RH（No Condensation）

Storage temperature -15 to 55℃

Storage humidity 5 ~95%RH(No Condensation)

Size 139x64.5x22.3 (mm)

Weight 216g

Accessories Manual, Power Adaptor
