2 Way HDMI 2.0 Splitter 18GBps Bandwidth

2 Port HDMI 4K @ 60Hz Splitter

Allows the connection of a single HDMI source to multiple HDMI displays with no loss of quality. Uses include home theatre, conference centres, sports bars etc. Includes power supply. HDCP compliant. 3D 4K x 2K, 12-bit deep colour and HD lossless audio support. 2 Way V2.0 18Gbps Bandwidth.

Package Contents
1 x HDMI Splitter
1 x 5V/1A DC Adaptor
1 x User Manual


Features

• Supports full 3D video format
• Displays an Ultra HD source on up to two Ultra HD displays
• Support high resolution up to 3840X2160@60Hz
• Supports four kinds of EDID handling abilities
• Supports HDCP2.2/1.4 Compliant
• Supports 36 bit deep colour
• Supports LPCM 7.1 Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio
• Bandwidth 18G
• Supports HDR
• Supports online firmware upgrade via Micro USB Port

Specifications

• Operating Temperature Range: -5 to +40°C
• Operating Humidity Range: 5 to 90%RH (No condensation)
• Bandwidth Frequency: 18Gbps
• HDCP: HDCP2.2

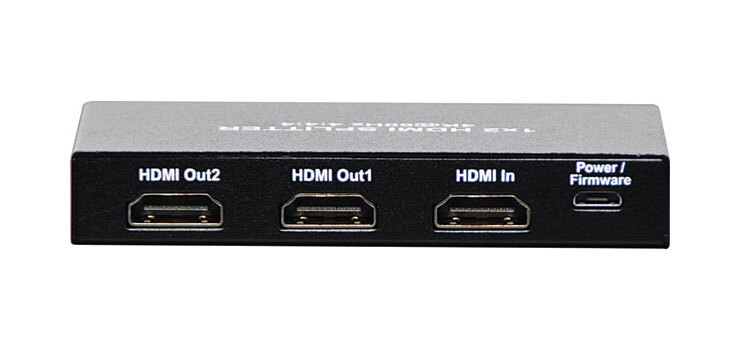

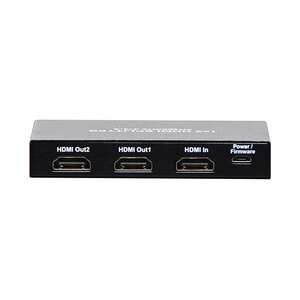

• Input Ports: 1 x HDMI (Female)
• Output Ports: 2 x HDMI outputs (Female)
• Resolution Output: up to 4K x 2K (3840X2160@60Hz YUV 4:4:4)
• Dimensions: 93.6 x 61 x 15mm
• Power Consumption: 1W Max
• Transmission Distance: 15, (Maximum) over standard HDMI cable/26AWG
• Weight: 120g

  *Specifications are subject to change without notice.
