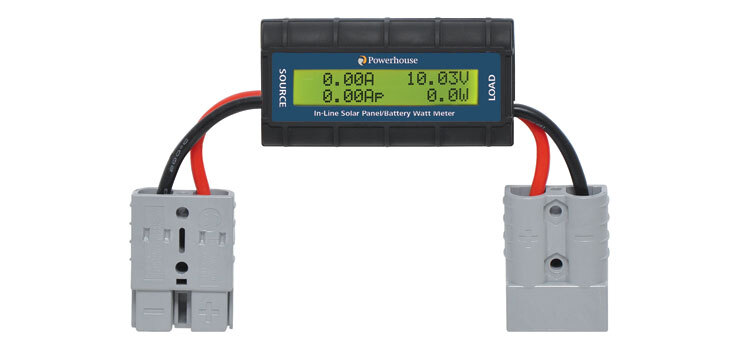

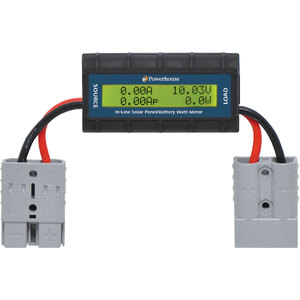

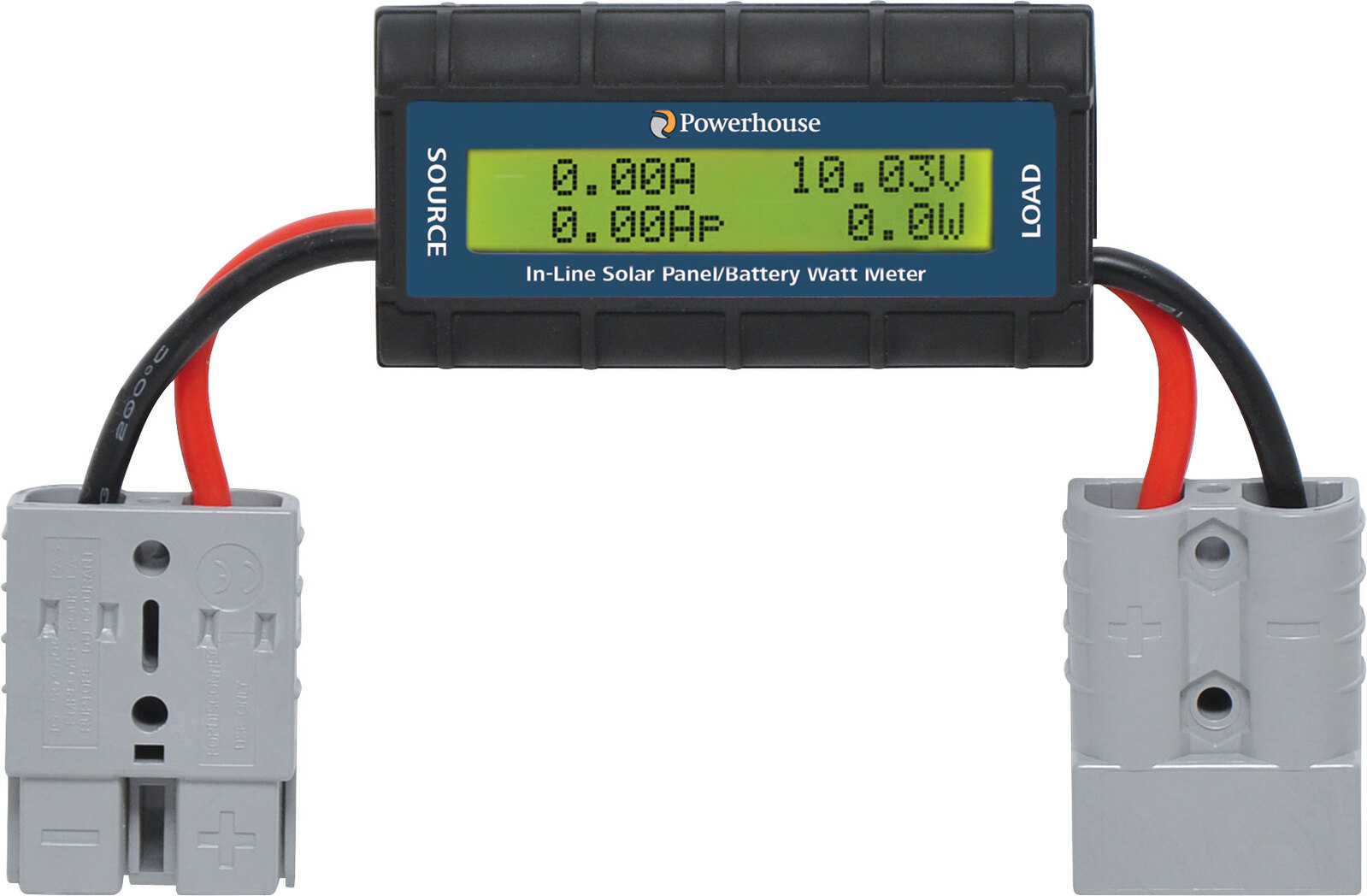

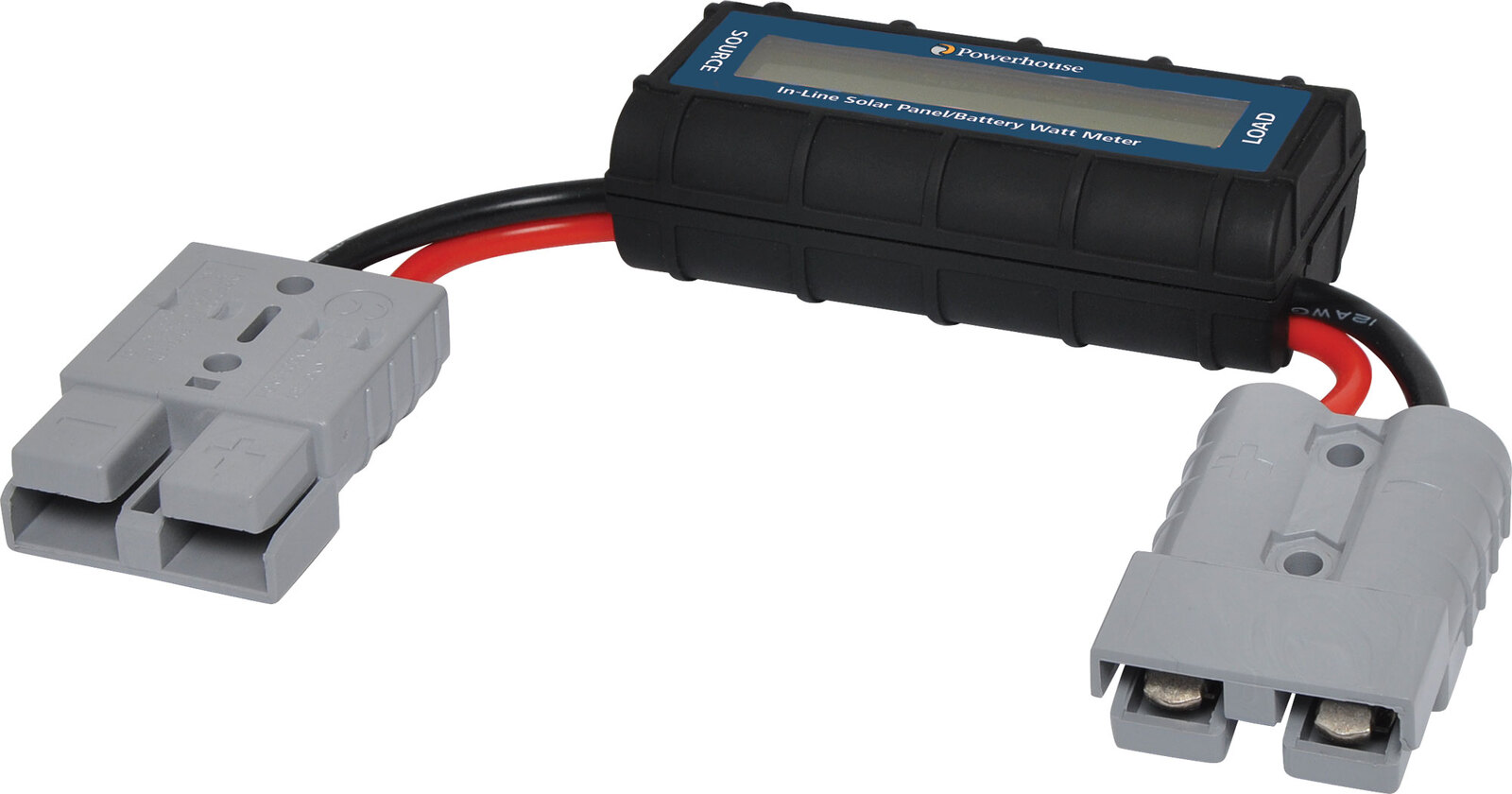

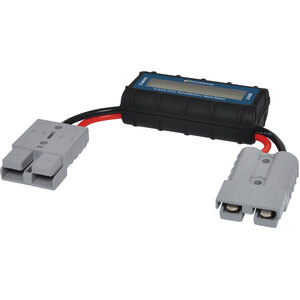

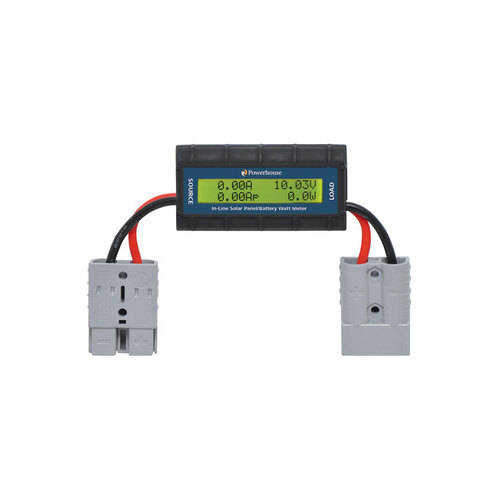

200A In-Line Solar Panel/Battery Watt Meter

Displays volts, amps, watts and average watts

The perfect solution for measuring input and output currents and wattage from solar panels or batteries. This watt meter accurately measures DC power usage. The display measures volts, watts and amps in real-time. The device also has a data scroll of eight key electrical parameters which reset every time the meter is powered off. Ideal for monitoring the output of solar panels or current draw from DC appliances such as portable fridges, lighting etc. 50A anderson style connectors provide an easy in line connection to the supply and load.


Features

• Operates 8-60V DC
• Ideal for 12V or 24V DC electrical systems
• Displays volts, amps, watts and average watts
• Backlit LCD Screen
• Anderson style connectors for easy connection
• Use with fridges, solar panels, dual battery systems and battery packs.

Specifications

• Operation
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Operating Voltage: 8-60V (0-8 V with auxiliary power)
• Operation Current: 0.2-0.5A
• Auxiliary Battery Operating Voltage: 9-60V DC
• Auxiliary Battery Operating Current: 0.2-0.5A
•
• Measures:
• 50A continuous. 200A (max - 1min)
• 0-60V, resolution 0.01V
• 0-6554W, resolution 0.1W
• 0-65Ah, resolution 0.001Ah
• 0-6554Wh, resolution 0.01W
• Measurement Update Period: 0.4s
•
• General
• Data Queue Sequence Time: 2s
• Wire Size: 12 AWG
• Display: 16 x 2 backlit LCD screen
• Dimensions: 85L x 42W x 25H mm
• Weight: 82g

  *Specifications are subject to change without notice.
