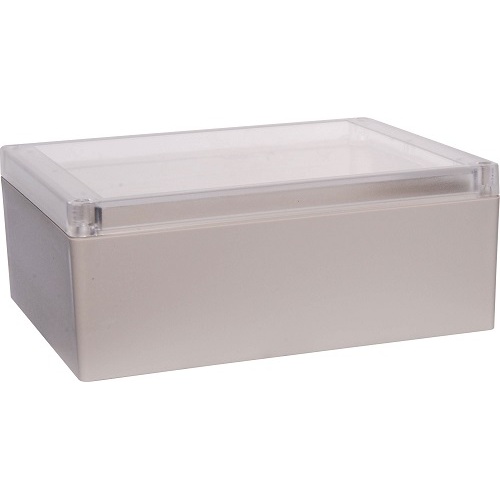

220 x 160 x 80mm IP65 Sealed ABS Enclosure

Keep Your Circuits & Connections Protected

Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a transparent lid. PCB mounting points are moulded into the enclosure base. These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.


Features

• Meets IP65 Dust- and Hose-proof standards
• Brass screw thread inserts
• Neoprene gasket seal
• Moulded PCB mounting points
• Manufactured from high impact ABS
• Useable temperature range of -30°C to +80°C
• Available with a solid light grey lid (see H 0312A) or a polycarbonate clear lid
• 220L x 160W x 80H mm
