240/9+9 30VA Toroidal Transformer

Toroidal Transformers

SKU: PB2311


$64.95
RRP $129.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $61.70 ea
Buy 11 to 20: Pay $58.62 ea
Buy 21 to 99: Pay $55.69 ea




Calculate Shipping

240/9+9 30VA Toroidal Transformer

Toroidal Transformers

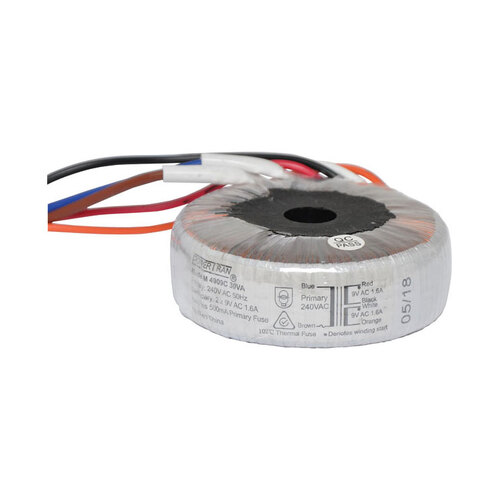

These low profile 30VA transformers will fit inside our 1 Unit 19" rack cases.

Toroidal transformers are becoming increasingly popular due to their improved magnetic properties. They can also be made to a lower profile than a standard solenoid core transformer. This allows the equipment to conform to a lower rack unit height i.e. 1RU, 2RU, 3RU.

The advantage of the toroidal (donut) shape is that, due to its symmetry, the amount of magnetic flux that escapes outside the core (leakage flux) is minimised. Therefore, the electromagnetic interference (EMI) that is radiated to nearby circuits or equipment is less. EMI is of increasing importance in modern low power, high frequency electronics.

Toroidal transformer are highly efficient and are replacing the laminated type as the accepted industry standard, because toroids offer advantages in size, weight, and lower radiated field.

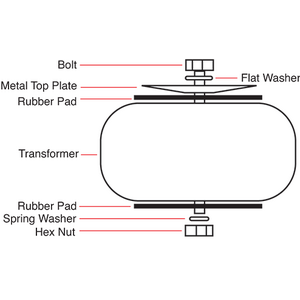

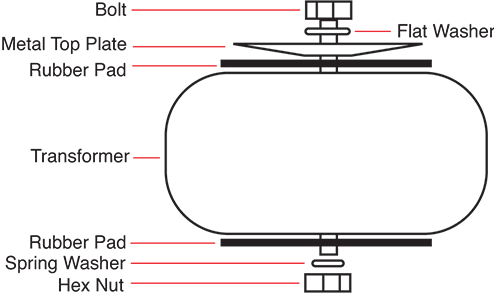

Included Mounting Hardware: 30VA Series - 1RU Height
Rubber Washer: Φ6.5 x 70 x 1.5mm - 1PCS
Screw: M6X35mm - 1PCS
Hex Nut: M6 - 1PCS
Washer: M6 - 1PCS
Lock Washer: M6 - 1PCS

Notes on Wiring

Secondaries parallel
Current available where secondaries are connected in parallel.

Secondaries series
Current available where secondaries are connected in series.

FEATURES:

  • Low profile design is suitable for use inside our 1RU 19” rack enclosures.
  • 30VA series models have potted epoxy centre core for easy mounting.
  • Lower electrically induced noise demanded by compact equipment.

SPECIFICATIONS:

  • Length: 210mm
  • Terminal: 10mm
  • Primary Lead No: 1-2
  • Colour: Brown, Blue
  • Rating: UL1672 AWG#18,105°C, VW-1, 300V, Double insulation
  • Secondary Lead No: 3-4
  • Colour: Red, Black
  • Secondary Lead No: 5-6
  • Colour: WHI-ORG
  • Rating: UL1015 AWG#20, 105°C, VW-1, 600V, Single insulation
  • Unloaded Voltage: 0-10.08V (V±5% regulation)
  • Loading Voltage: 0-9.0V
  • Rated Current (A): 1.6A
  • Tolerance: ± 2%



SKU PB2311
Barcode # 9321758197981
Brand Power Iran
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
