2A 12V DPDT Miniature PCB Signal Relay

12V Relay

SKU: ER0031


$5.70
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $5.41
Buy 11 to 20: Pay $5.14
Buy 21 to 100: Pay $4.88




Calculate Shipping

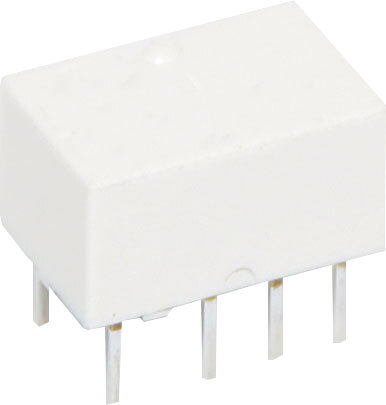

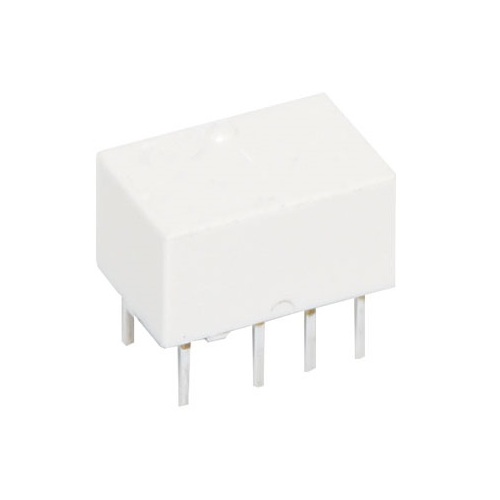

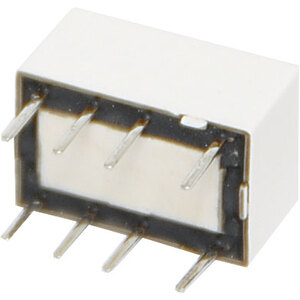

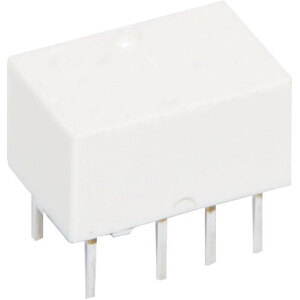

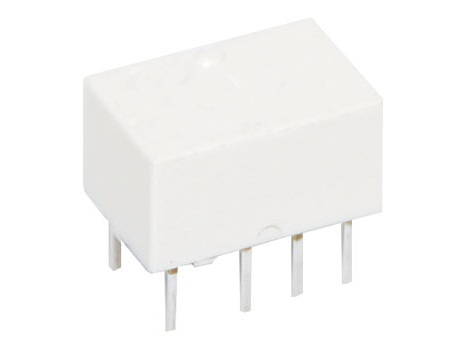

2A 12V DPDT Miniature PCB Signal Relay

12V Relay

A compact 2A DPDT mini signal relay. PCB mount style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

  • Max AC Rating: 0.5A @ 125V
  • Max DC Rating: 2A @ 30V
  • Max Switching Power AC: 62VA
  • Max Switching Power DC: 60W
  • Contact Material: Silver palladium + Gold plated
  • Coil Resistance (12V): 1028Ω
  • Max Coil Power: 200mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1600V AC between coil & contact
  • Life: 100,000 electrical 0.5A 125V, 10 million mechanical
  • Dimensions: 10W x 6.5L x 5.4H mm

    *Specifications are subject to change without notice

SKU ER0031
Barcode # 9351634054268
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
