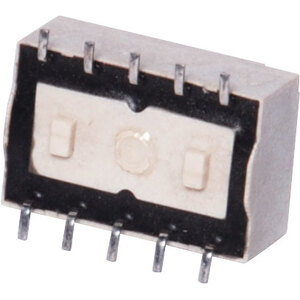

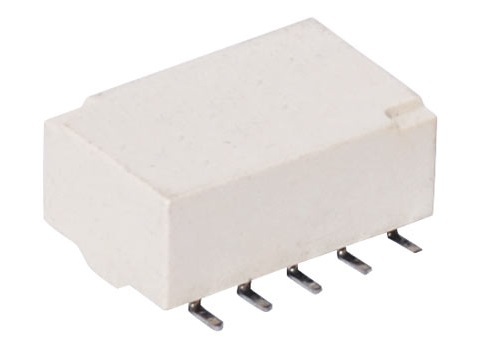

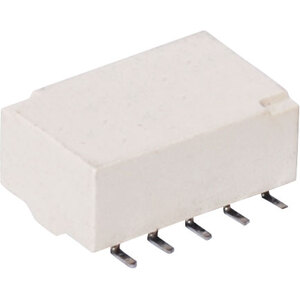

2A 12VDC DPDT SMD Telecom Relay

12V Telecom Relay

2A DPDT telecommunications relay. SMD style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

• Max Switching Voltage: 250V AC, 220V DC
• Max Switching Current: 0.5A AC, 2A DC (1A DC for UL approved applications)
• Max VA (Watts): 62VA (30W)
• Contact Material: Silver Palladium
• Coil Resistance: 1028Ω
• Max Coil Power: 200mw
• Insulation Resistance: >1000MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 1000V AC between open contacts
• 1000V AC between coil & contact
• Electrical Life: 200,000 operations 1A 24V
• Mechanical Life: 10 million operations
• Dimensions: 14W x 9L x 5H mm

  *Specifications are subject to change without notice
