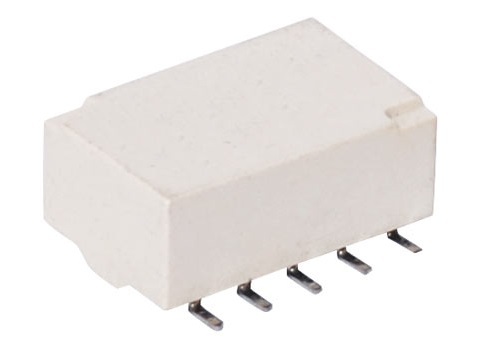

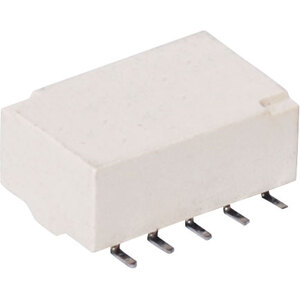

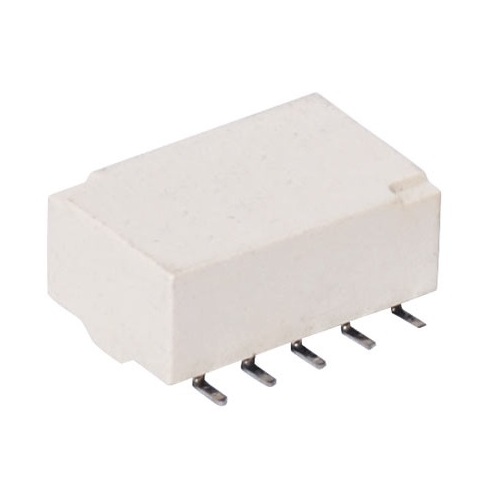

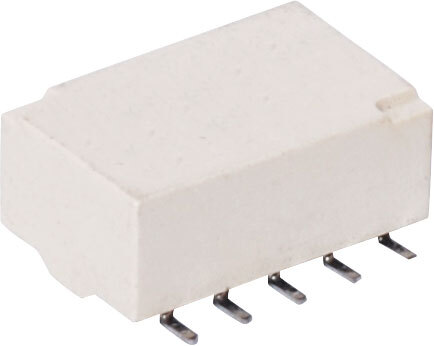

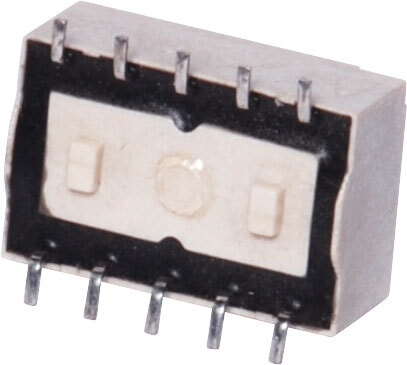

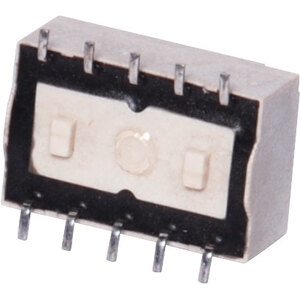

2A 24VDC DPDT SMD Telecom Relay

24V Telecom Relay

SKU: ER0011


$6.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $5.70
Buy 11 to 20: Pay $5.41
Buy 21 to 100: Pay $5.14




Calculate Shipping

2A 24VDC DPDT SMD Telecom Relay

24V Telecom Relay

2A DPDT telecommunications relay. SMD style. 24V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

  • Max Switching Voltage: 250V AC, 220V DC
  • Max Switching Current: 0.5A AC, 2A DC (1A DC for UL approved applications)
  • Max VA (Watts): 62VA (30W)
  • Contact Material: Silver Palladium
  • Coil Resistance: 2880Ω
  • Max Coil Power: 200mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 200,000 operations 1A 24V
  • Mechanical Life: 10 million operations
  • Dimensions: 14W x 9L x 5H mm

    *Specifications are subject to change without notice

SKU ER0011
Barcode # 9351634054060
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.140m
