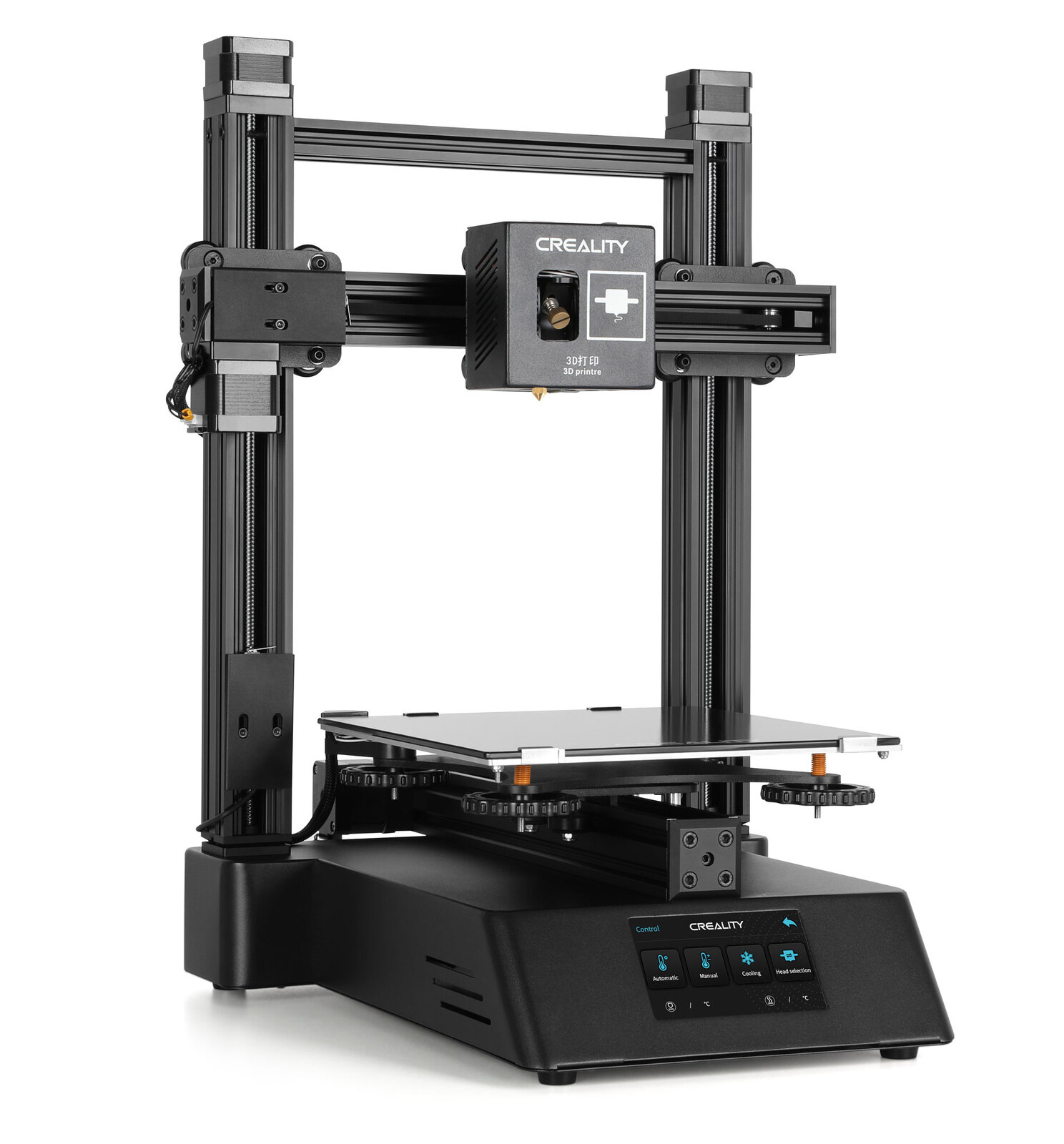

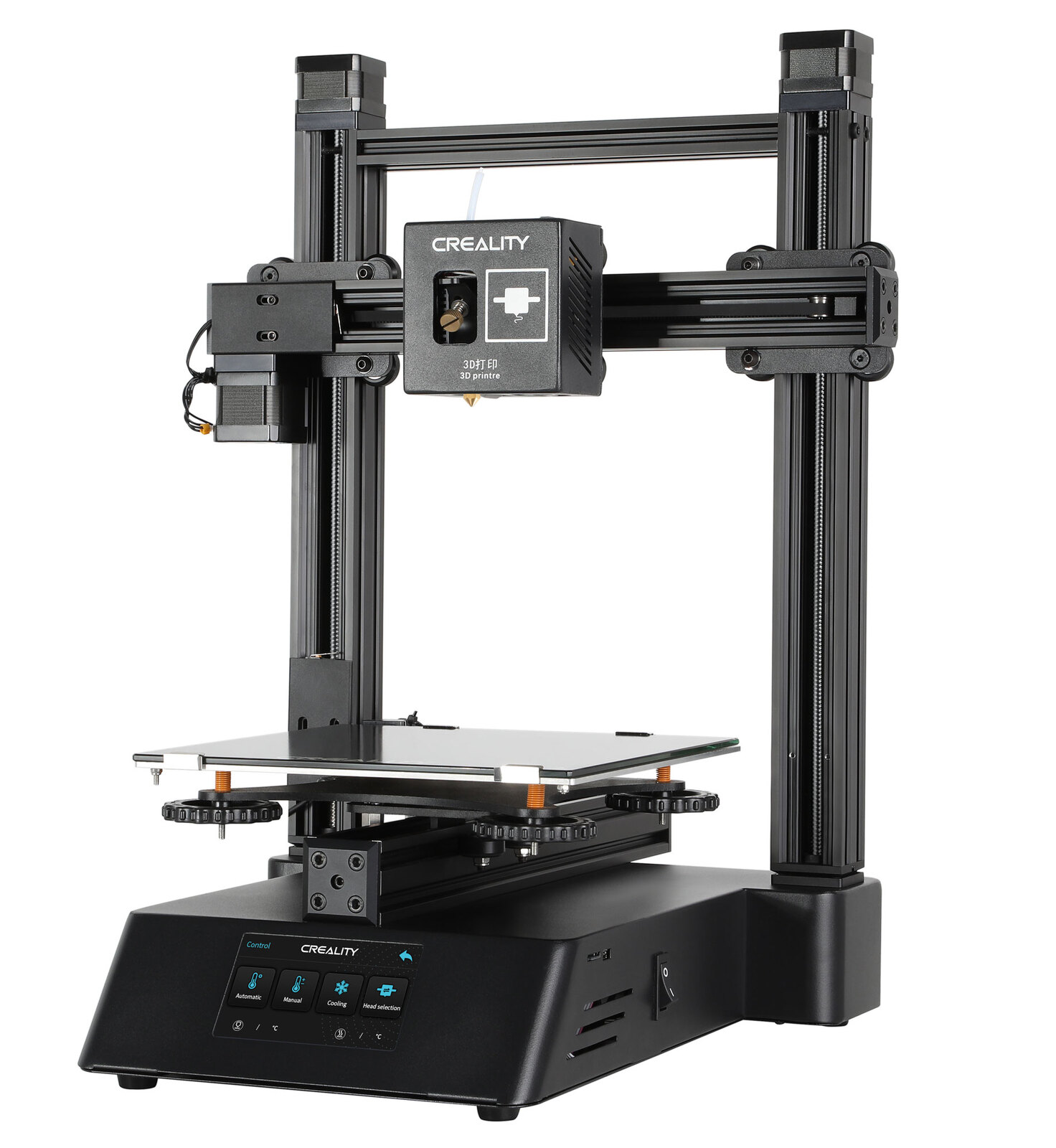

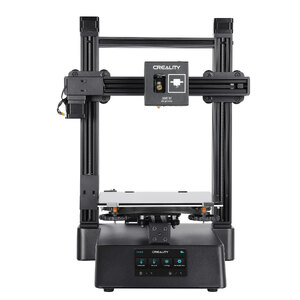

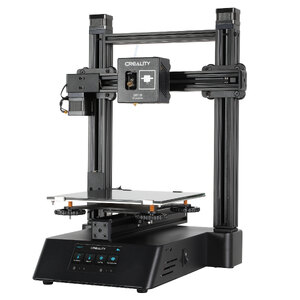

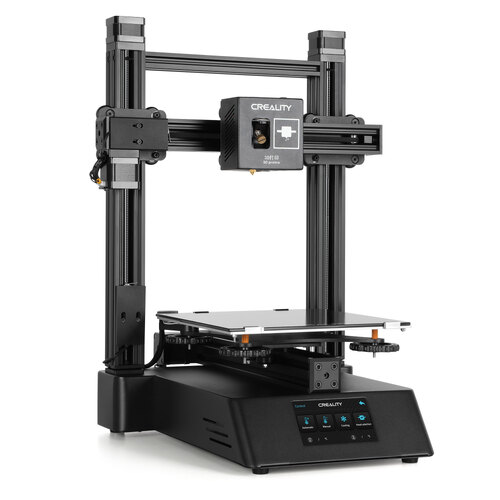

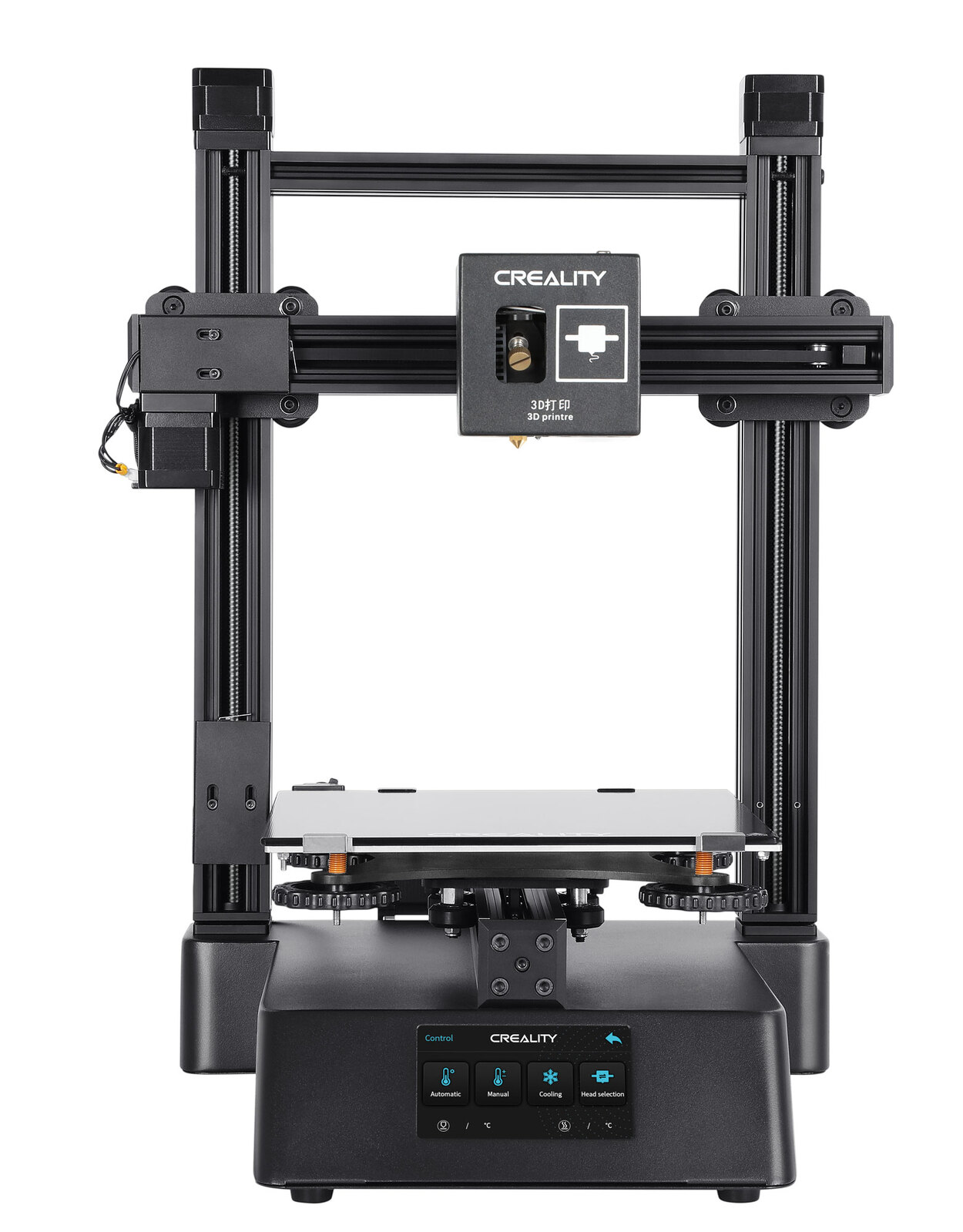

3 in 1 Desktop 3D Printer / Laser Engraver / CNC - CP-01

Ultimate 3 in 1 3D Printer, Laser Engraver & CNC Machine

With the Creality CP-01 you can add 3D printing, Laser Engraving and CNC Cutting to your workbench to produce working prototypes, ‘one-offs’ & finished designs downloadable from the internet. From printing your own gaming pieces to cosplay parts and fixes for broken parts, a 3D printer adds incredible versatility to your workbench. This 3 in 1 machine allows you to work with many different types of filament including; PLA, ABS and TPU. The hotbed heats up to 110° and the nozzle reaches a maximum temperature of 260°. The 3D printer offers high precision printing producing fine and smooth models without nearly any laminated striation. The CP-01 has the ability to engrave with high precision. Its compatible with laser heads of different power and many kinds of materials including; wood, paper, plastic, leather etc. With a fast rotational speed the CNC Cutter produces models with a high degree of finish and smooth surfaces. Wood, PCB, Paper and Plastic are the materials compatible with the CNC cutting abilities of the machine.



Features

• CNC Cutting
• 3D Printing
• Laser Engraving
• Fast Assembly
• Industrial-level aluminium frame stablity
• Machine head is easily changeable
• Full belt drive for higher quality models
• V-Slot profile and pulley for stable and smooth running low noise, wear resitance and long life
• Resume Printing
• High power motor
• Neat and clean design
• UI interface
• Easy leveling nut

Specifications:

• Model: CP - 01
• Type: 3D Laser,CNC,DIY
• Material (Frames): Aluminium extrusion
• Platform board: Aluminum alloy, aluminum Base
• Nozzle diameter: 0.4mm
• Nozzle temperature: 0-260°
• Product forming size: 200 x 200 x 200mm
• Layer thickness: 0.1-0.4mm
• Memory card offline print: TF card
• LCD screen: Yes
• Print speed: 10-80mm/s
• Platform temperature: Room temperature to 100 degree
• Language: English
• File format: AMF, BMP, OBJ, STL
• Model supporting function: Yes
• Voltage: 100V/240V
• Working power: Input; 100-240v output; 24v
• Host computer software: Cura, Simplify3D
• Packing type: unassembled packing
• Voltage range: Input 100-240V AC output 24V
• Connector type: TF card,USB
• Touch screen: 4.3 inches
• Gross weight: 10kg
• Operating system: Windows XP/Vista/7/10/Mac Linux
• Motor: 42 - 40 stepper motor, 42-34 threaded rod motor, step angle 1.8°
•
• 3D Printing
• Molding technology: FDM
• Molding size: 200 x 200 x 200mm
• File format: STL, OBJ, AMF
• Slicing software: Cura, Simplify 3D
• Supported filament: 1.75mm diameter (PLA, ABS, PVA)
• Nozzle diameter: Standard 0.4mm, can also be 0.6mm, 0.8mm, 1.0mm, 1.2mm
• Printing precision: ±0.1mm
• Printing speed: 10-80mm/s
• Hotbed temperature: ≤100°C
• Layer thickness: 0.1mm-0.4mm
•
• CNC Carving/Cutting
• Carving/cutting Size area: 200 x 200mm
• Supported materials: Wood, Paper, PCB, Plastic
• File format: SVG, BMP, NG, PG, DXF
• Spindle speed: 4,800rpm max
• Standard cutter Size: HRC55 tungsten steel milling cutter 4F 4*1
• Drill chuck clamping range: 0-4mm

• Laser Engraving
• Engraving size area: 100 x 190mm
• Supported materials: Wood, Paper, Feather, Plastic
• File format: SVG, BMP, NG, PG, DXF
• Laser power: Less than 0.5W

  *Specifications are subject to change without notice.
