3 Input HDMI 2.0 4K @ 60Hz Switcher with Audio Extractor
Features ARC with EDID Downscaler
SKU: AA6314
$84.95
RRP $179.00
Sold Out
3 Input HDMI 2.0 4K @ 60Hz Switcher with Audio Extractor
Features ARC with EDID Downscaler

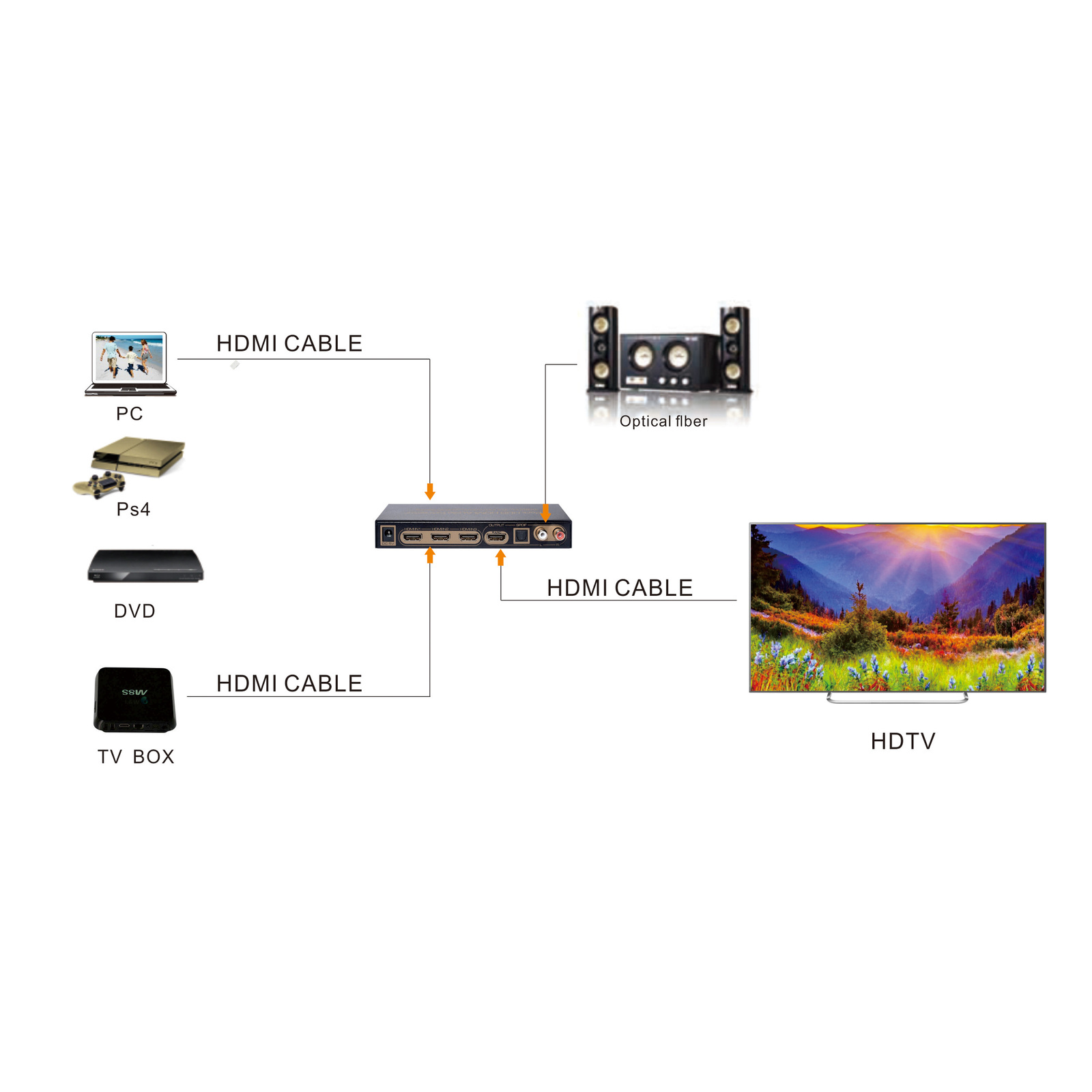

This is a high-performance HDMI switch box with 3 x HDMI 2.0 inputs, it allows switching of any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) and connect to a 4K Display and extract audio via the Toslink Digital Audio or RC Line Level Audio output for connection to an Amplifier, Receiver or soundbar. Supports ARC function.
The HDMI 4K Switcher also features EDID down scaler for varying HDMI input and display specifications.
FEATURES
Three HDMI input signals switched to a single HDMI sink device.
Any input HD Source can do audio extract by the SPDIF or L/R audio output port.
Supports HDR
Support 4K*2K @60Hz resolution
Video Format Support: 4Kx2K/60Hz 8Bit YcbCr 4:4:4
Supports ARC, TV audio will return and out by the Optical Port
HDMI to achieve the synchronization of audio signal separation. Support 2.0/ 5.1/ PASS three kinds of audio mode options
Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0

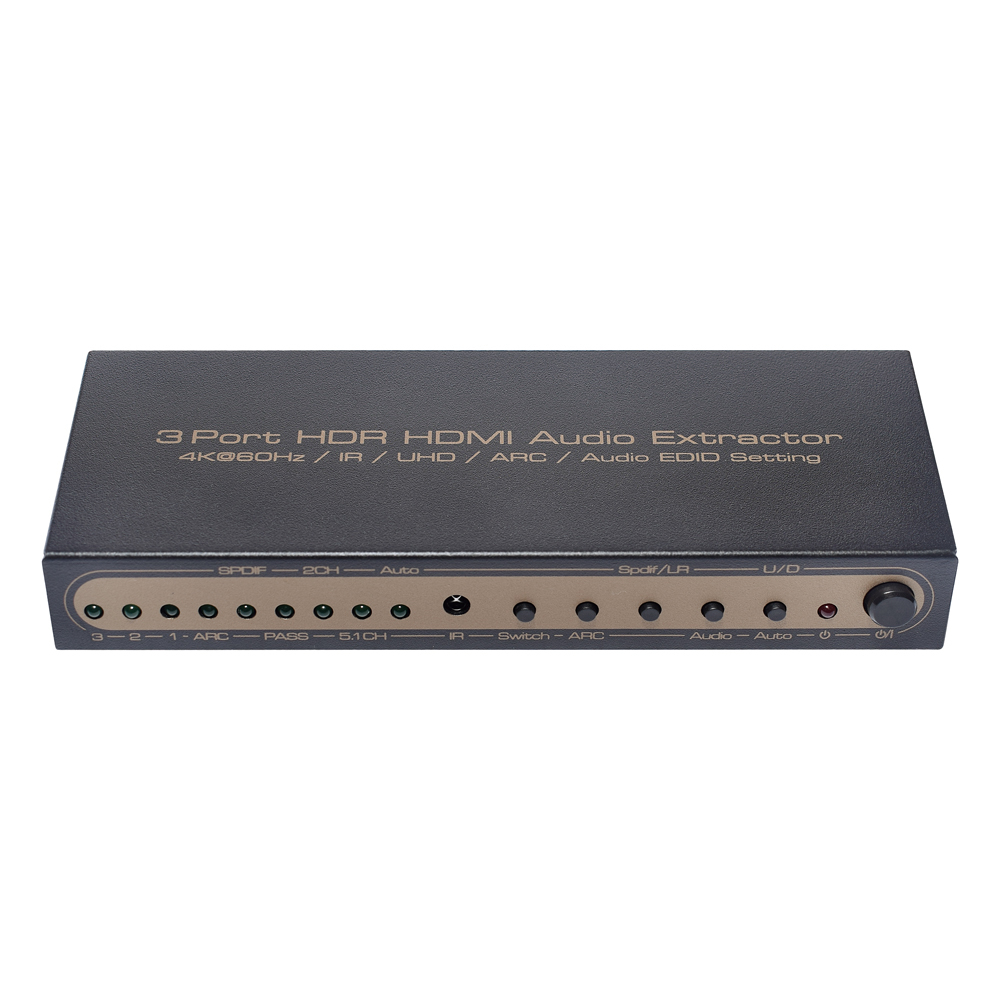

LED indication: when source or sink is working, LED related will go bright.
Led Status Light allows the user to know the working status easily.
No loss of quality
Need DC5V/2A power supply.
The accessories with the machines list as picture:
1、Main unit 1pcs
2、5V power adapter 1pcs
3、User manual 1pcs
4、Remote 1pcs
12 Month Warranty
SKU | AA6314 |
Barcode # | 9351634026814 |
Brand | Aus Electronics Direct |
Shipping Weight | 0.7400kg |
Shipping Width | 0.170m |
Shipping Height | 0.070m |
Shipping Length | 0.250m |
Shipping Cubic | 0.002975000m3 |
Unit Of Measure | ea |
