3 Port HDMI V1.4 AV Switcher
3 Port HDMI AV Switcher
SKU: AA6010
$24.95
RRP $49.95
Sold Out
3 Port HDMI AV Switcher
Supports 4K and 3D Formats

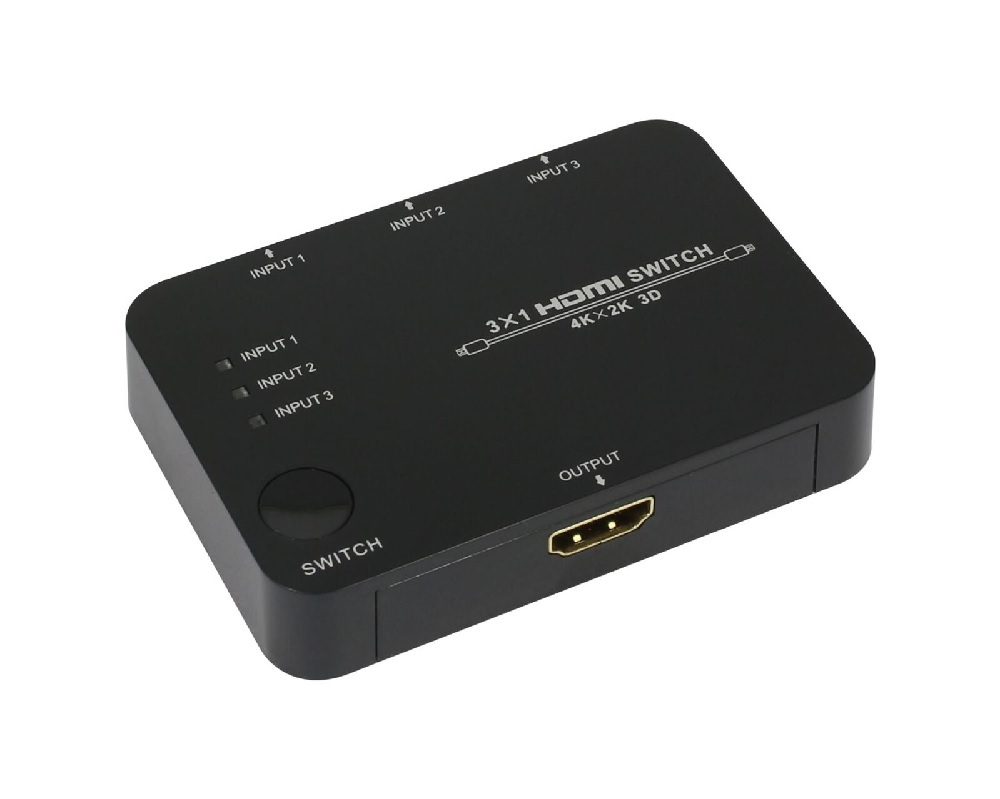

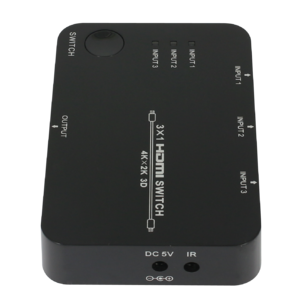

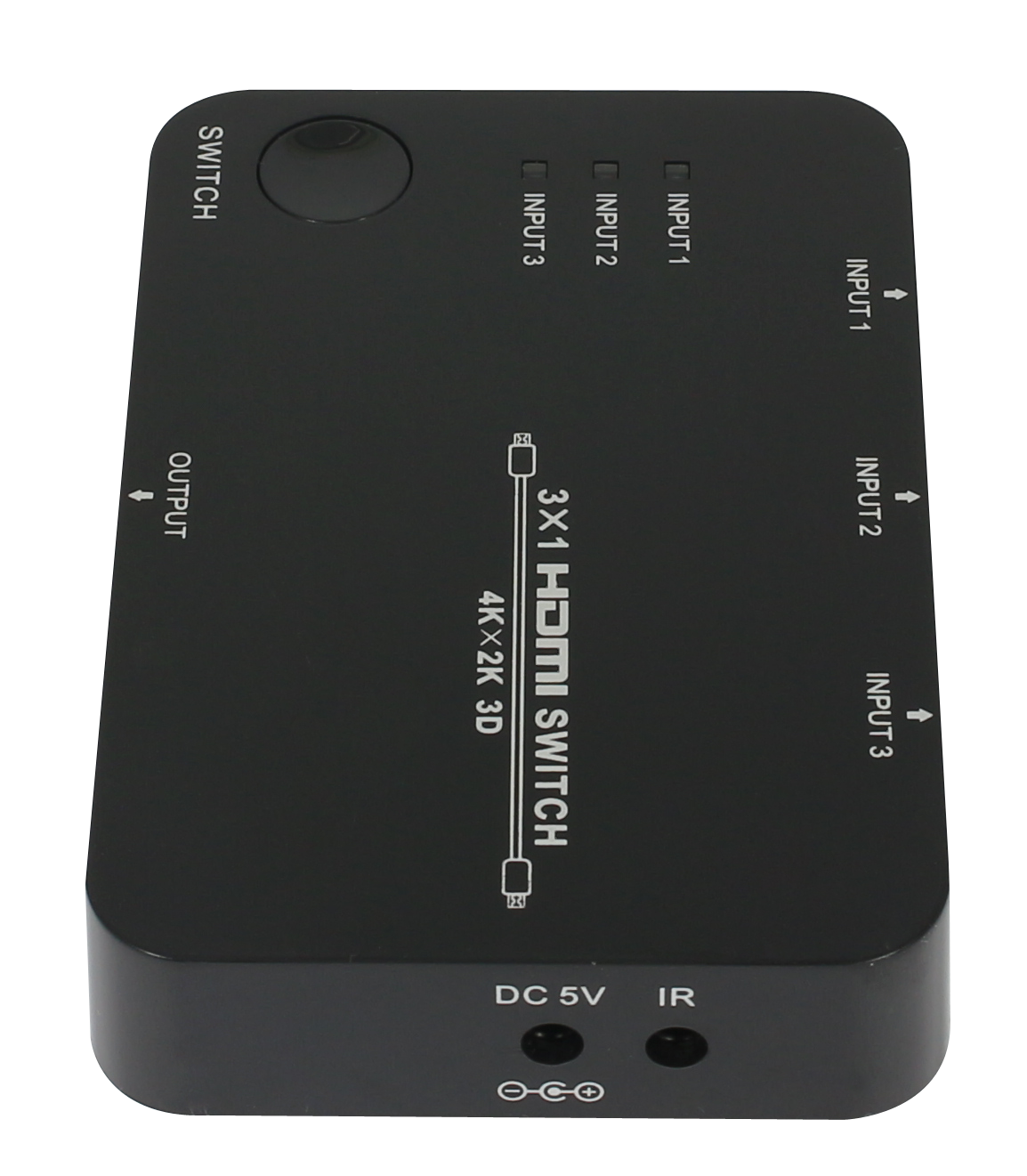

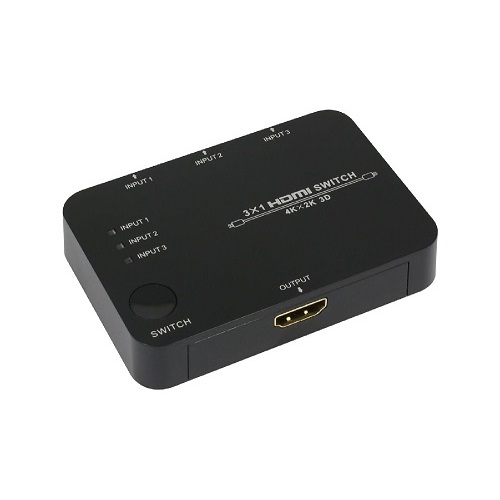

This is a high performance 3 HDMI input selector to 1 HDMI output switch box. This HDMI switch supports HDCP repeater functions and fast switching between any of the HDMI ports. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives complete control over the selection of sources and makes the device incredibly user friendly.
Features:
-
Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 standards.
-
HDMI 1.4 support: 3D TV support.
-
Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth.
Audio support:
-
Dolby True HD
-
DTS-HD Master Audio 7.1CH
-
Low power consumption, does not require an external power supply
Package:
-
HDMI 1.4 4by1 Switcher
-
5V USB to DC Power Supply cable
-
Remote control
-
IR Receive Extend cable
-
Operation Manual
Specifications:
-
Frequency Bandwidth:2.97Gbps
-
Input Ports: 3 HDMI Female ports, IR Receive port
-
Output port: 1 HDMI Female port
-
HDMI Audio Output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-True HD, DTS-HD
-
ESD Protection: Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
-
Dimensions (mm): 87(D) x59.5 (W) x 19(H)
-
Weight (g): 60
-
Power Consumption: 0.2W
-
Operating Temperature: 0ËšC ~ 40ËšC / 32ËšF ~ 104ËšF
-
Storage Temperature: -20ËšC ~ 60ËšC / -4ËšF ~ 140ËšF
Do I need a HDMI Switcher of a HDMI Splitter?
3 Month Warranty
| SKU | AA6010 |
| Barcode # | 9351634000180 |
| Brand | Playvision |
| Shipping Weight | 0.2100kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.080m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.001248000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.150m |
| Assembled Height | 0.020m |
| Assembled Width | 0.100m |
