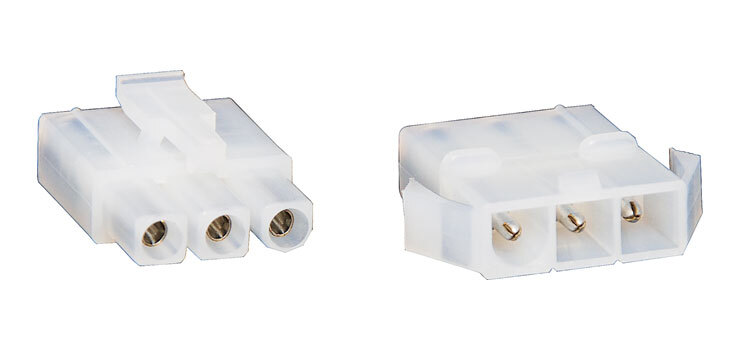

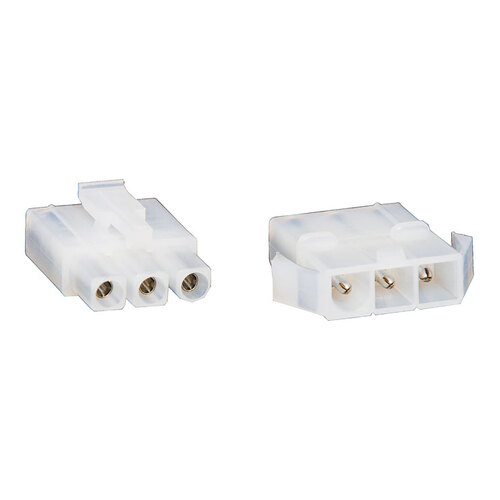

3 Way 14A Male And Female Inline Connector

Multi-Pole Connectors

Supplied with crimp pins. Pins crimp (or solder) onto cable and then snap into place inside the connector. Both the plug and socket are inline type, though can also be chassis mounted.
Rated at up to 300V AC/DC, these compact connectors will withstand1,500V AC/minute, and operate within a temperature range of -25 degrees C to 105 degrees C. Polarised to ensure correct mating, a positive locking latch also automatically engages at mating, and the option exists for in line or hand fitted panel mounted installation. The complete cell housing system fully covers and protects the contacts. The high reliability 2mm O.D. crimp contacts, are easily snapped into the housings by hand, with two sizes covering a wide wire range from0.2 to 2.0mm2. Maximum contact resistance is limited to 10 ohm.
Rated at 14A a.c.

Includes Plug & Socket
