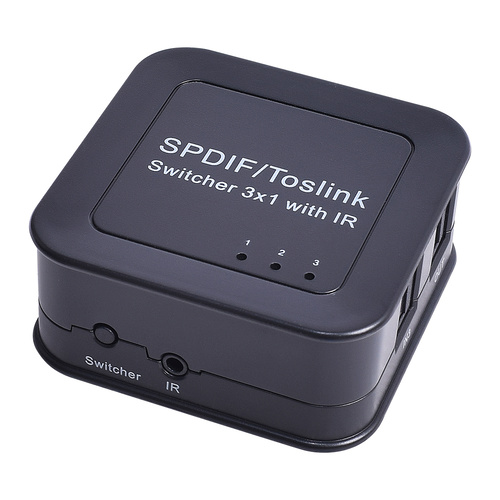

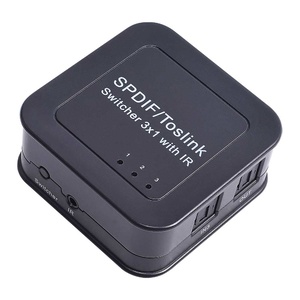

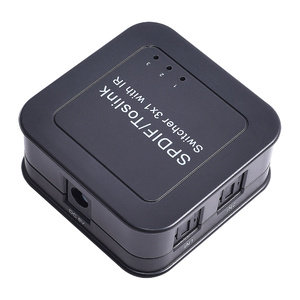

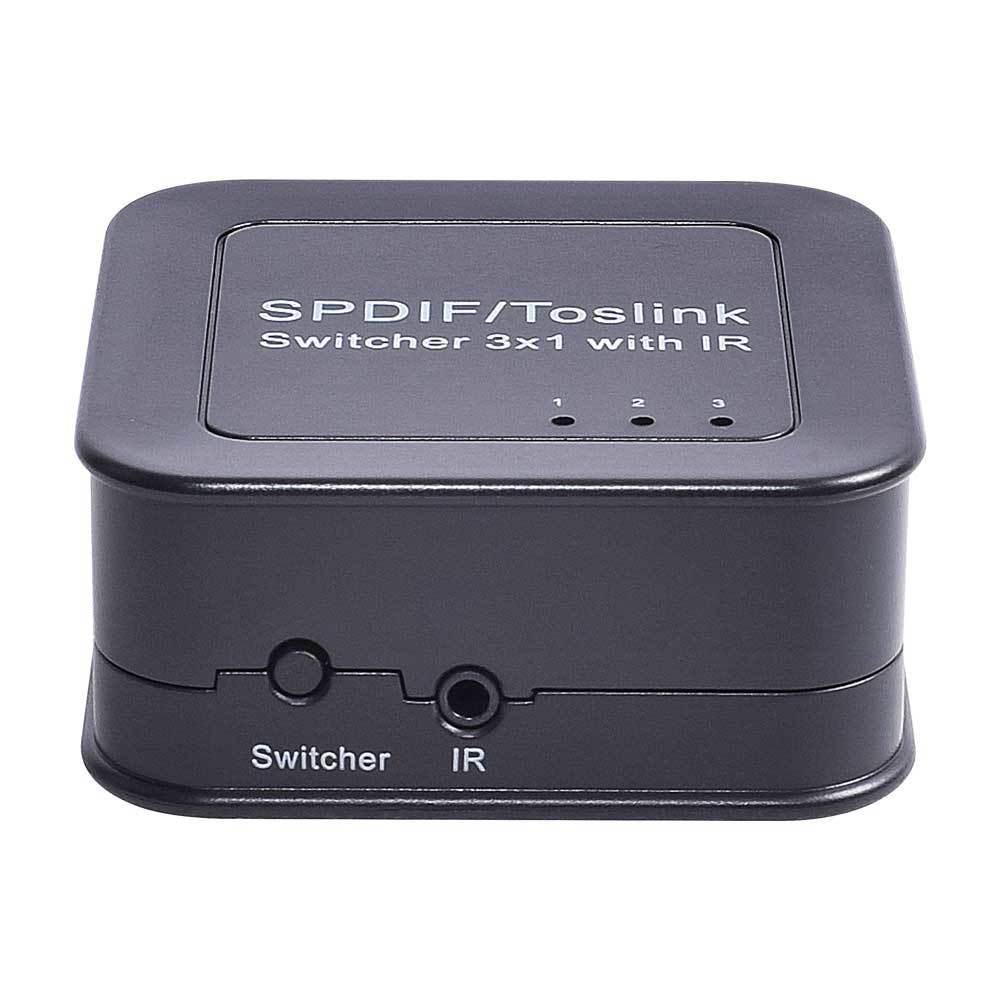

3 Way Toslink Digital Audio Switcher

Switch between 3 Digital Audio Inputs

This SPDIF/TosLink Digital Optical Audio Switch allows connection of three digital optical TosLink sources to one optical TosLink (SPDIF) input to an Amplifier or Audio Receiver. Toslink Auto switch.

Features:

• Three ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.

• Audio format support : LPCM2.0/DTS/Dolby-AC3

• Support signal retiming

• Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.

• The input control can through R/M and also can directly press the button

• Support last time working state memory when power off

• Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine

• LED status indicator

• No loss of quality

Contents:

1. 5V Power Adaptor

2. Operation Manual

3. Remote-control unit

4. IR extender line



Specifications:

Support audio format : LPCM2.0/DTS/Dolby-AC3

Peak wavelength : 650nm

Max baud rate : 16Mbps

Output cable distance : ≤40m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current : 100mA

Power adapter : DC5V/500mA

Operating Temperature range : (0 to +40℃)

Operating Humidity range : 5 to 90%RH (No Condensation)

Dimension (L x W x H) : 54x54x23.5 (mm)

Weight : 35g
