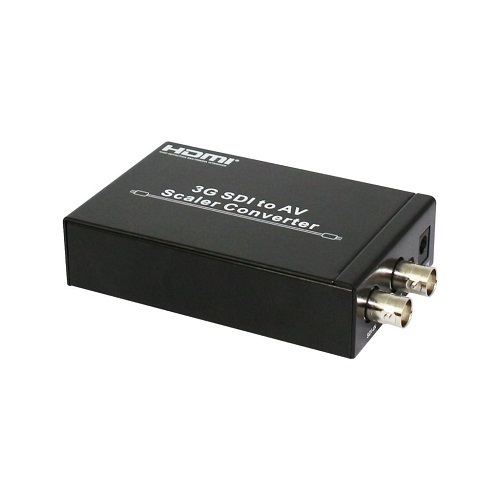

3G SDI Coax to Composite RCA Converter Box

Connect your SDI Devices to older RCA Displays

A compact 3G SDI to a composite AV RCA scaler and converter. This device allows you to connect SD, HD and 3G SDI signals on older LCD, TV and displays with only RCA (Red, White and Yellow) composite inputs while ensuring fast transmission without any signal loss at high bit rates of 2.970Gbit/s. It also integrates a loop-through 3G SDI design which allows RCA composite conversion plus a pass through 3G SDI output.

Features

• Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s

• Equalized and re-clocked loop output

• Auto video mode detection (3G/HD/SD)

• Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

• Connect with other units to extend your signal over long distances

• Simultaneous display with SDI /AV signals

• Alternative audio output to analog 2CH

• Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals

• Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

Package

• 3G SDI to AV Scaler Converter

• 5V DC Power Supply Adaptor

• Operation Manual

Specifications

SMPTE Standard                    425M Level A & B, 424M, 292M, 259M-C

SDI Transmission Rates         2.970 Gbit/s and 2.970/1.001 Gbit/s

SDI in/out Resolution       SD: 480i@60, 576i@50  HD:720p@50/60, 1080i@50/60

                                            3G:1080p@24/25/29.97/30/50/59.94/60

CVBS Output Resolution               PAL/NTSC-M

Input Port                          1 x BNC (SD/HD/3G-SDI)

Output Port                       1 x BNC (SD/HD/3G-SDI), 3 x RCA (CVBS,L/R)

Power Supply                    DC 5V -12V

ESD Protection Human body model             ±8kV (air-gap discharge) ,  ±4kV (contact discharge)

Dimension        95mm x 60mm x 25 mm

Weight      260g

Operating Temperature        0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature            -20°C ~ 60°C / -4°F ~ 140°F

elative Humidity                    20 ~ 90% RH (Non-condensing)

Power Consumption (Max)   5W
