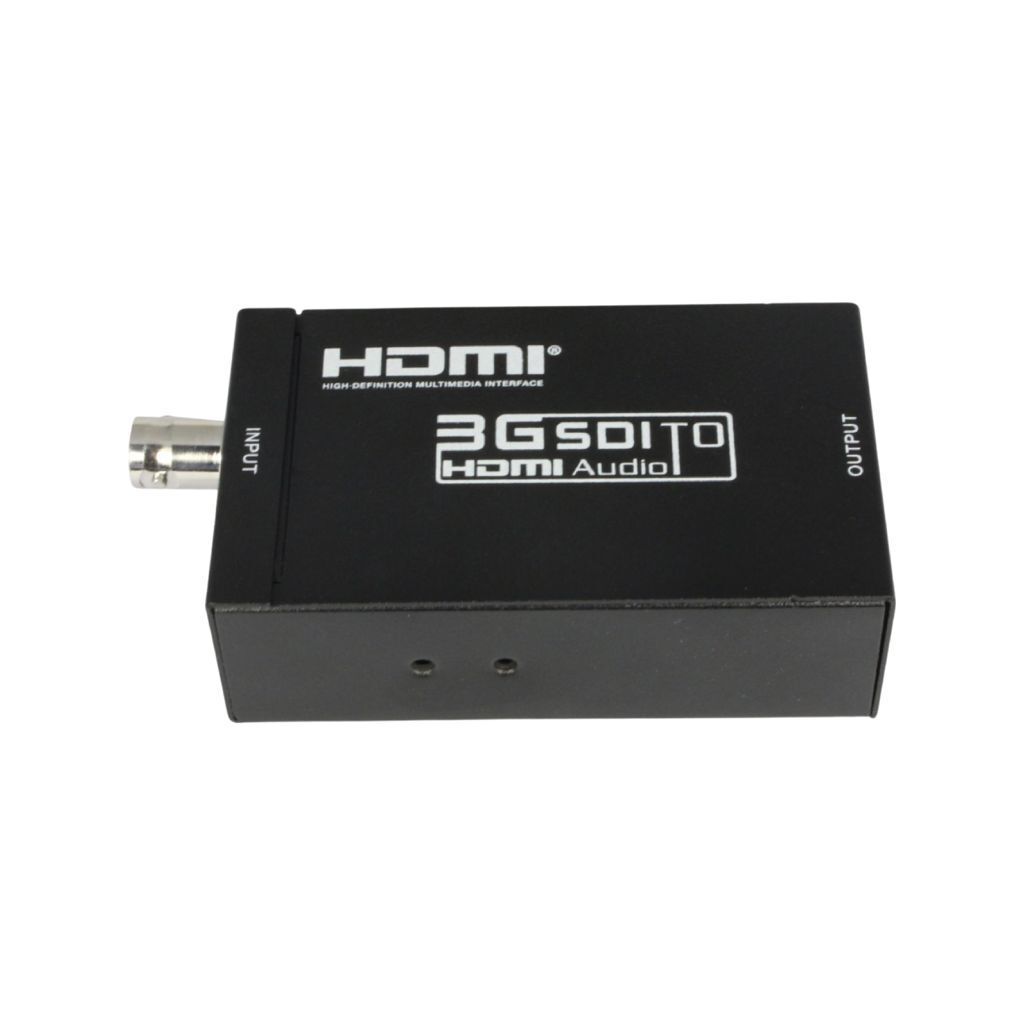

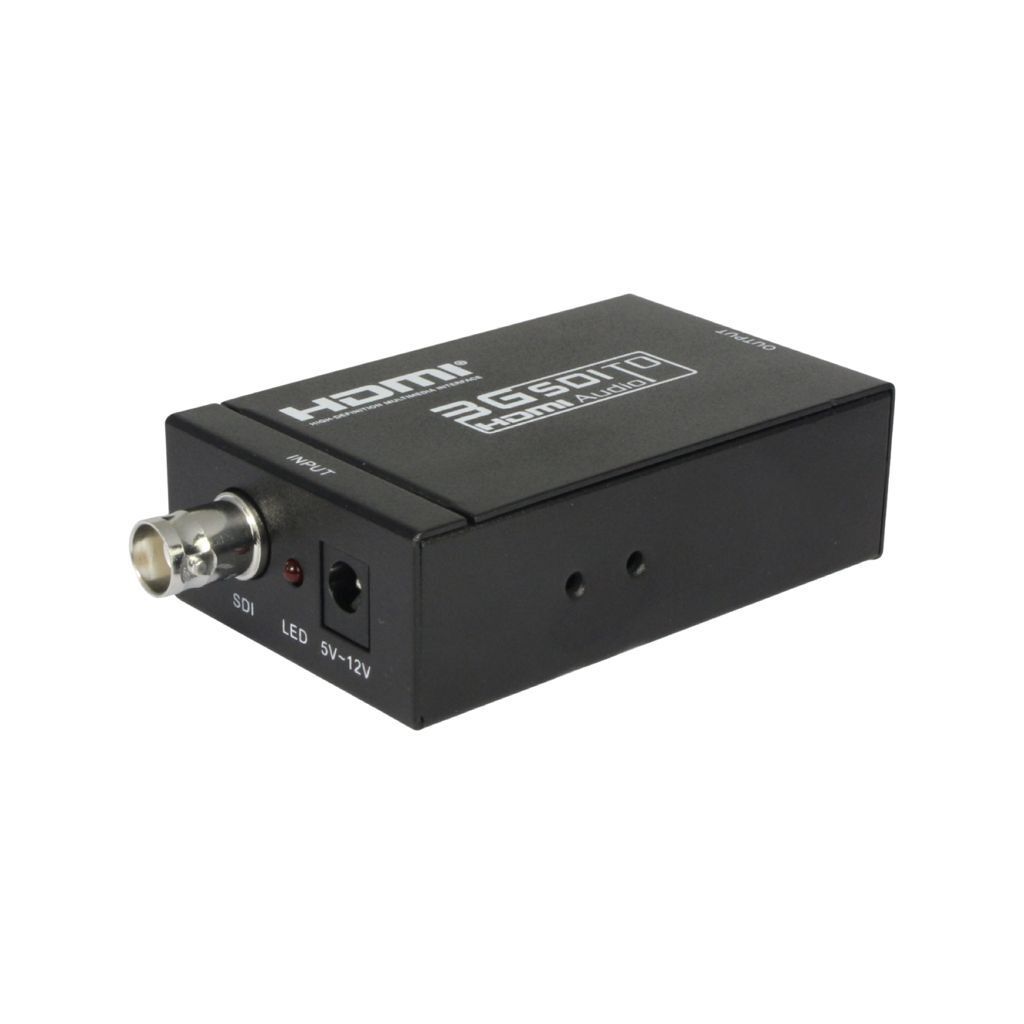

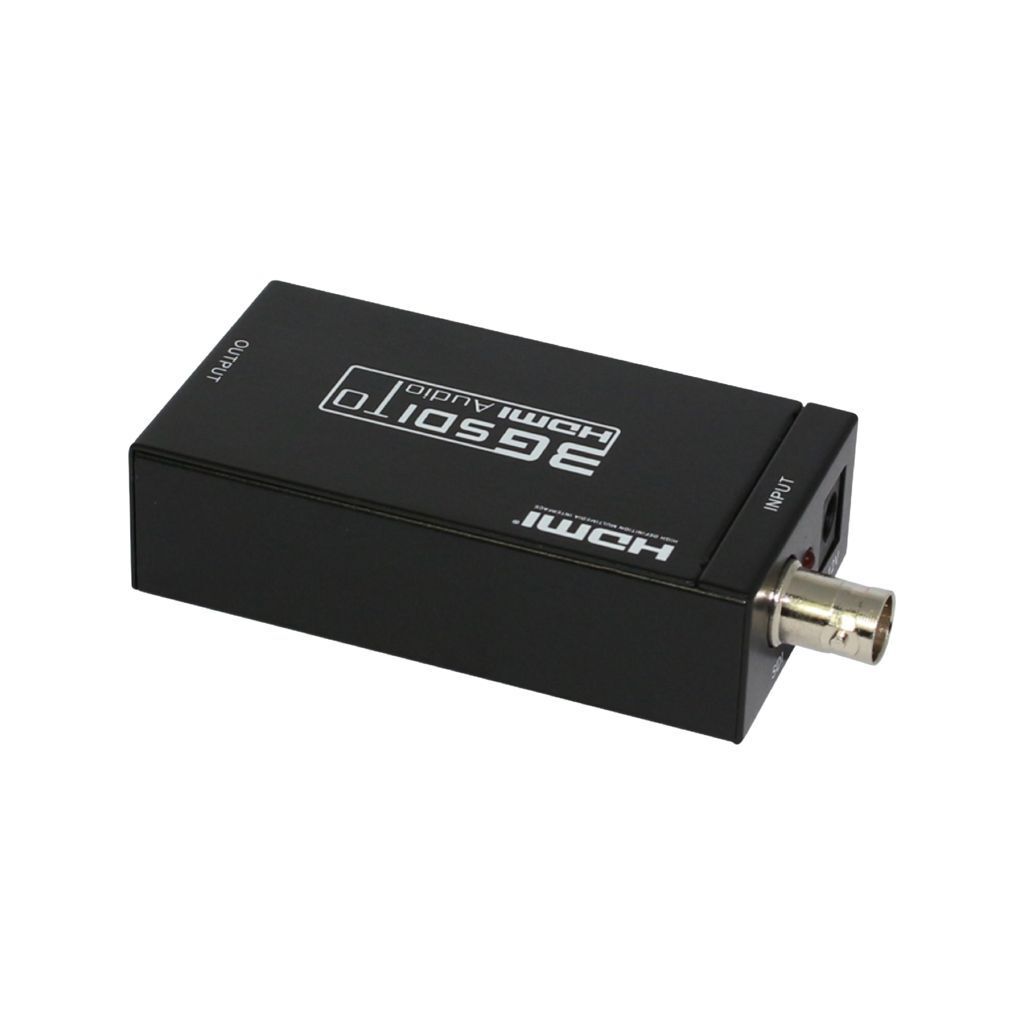

3G SDI Coax to Digital HDMI Converter Box

Connect your SDI Devices to HDMI LCD and TV's

This compact converter has a 3G SDI input and converts to a HDMI signal. A great economical solution for transmitting digital HDMI signals up to 100m in length or converting SD-SDI, HD-SDI and broadcast quality 3G SDI video signals for playback on HDMI LCD TV or displays. Also suitable for use with high end security camera solutions that uses the SDI protocols.

Features

• Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s

• Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C

• Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio

• Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

• Connect with other units to extend your signal over long distances

Package Includes

• 3G SDI to HDMI Converter

• 5V DC Power Supply Adaptor

• Operation Manual

Specifications

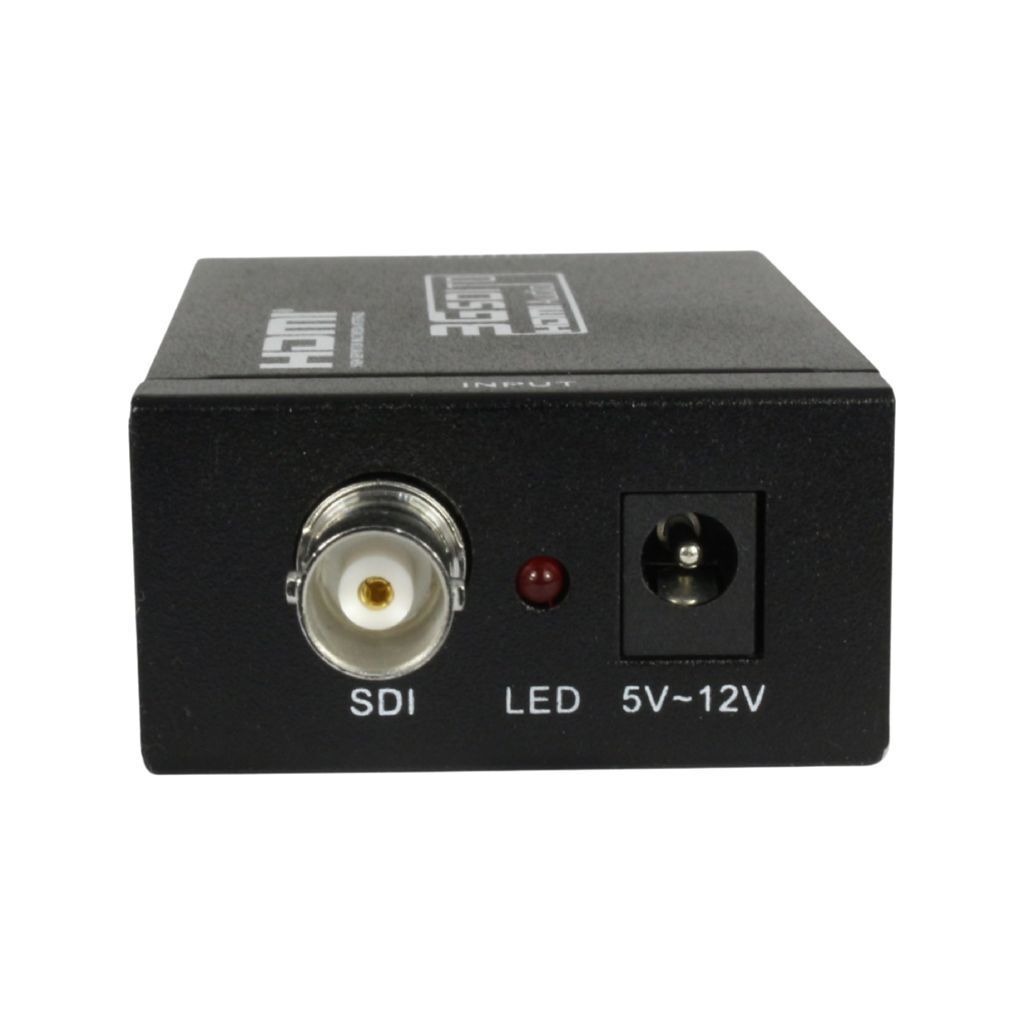

• Input Port     1 x BNC (SDI/HD-SDI/3G-SDI)

• Output Port    1 x HDMI

• SDI Transmission Rates  2.970 Gbit/s and 2.970/1.001 Gbit/s

• In/Output Resolution    480i, 576i, 720p @ 50 / 59.94, 60, 1080i @ 50/59.94/60, 1080p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

• Power Supply    DC 5V -12V

• ESD Protection Human body model       ±8kV (air-gap discharge) , ±4kV (contact discharge)

• Dimension                 80mm x 41mm x 25 mm

• Weight      150g

• Operating Temperature      0°C ~ 40°C / 32°F ~ 104°F

• Storage Temperature            -20°C ~ 60°C / -4°F ~ 140°F

• Relative Humidity              20 ~ 90% RH (Non-condensing)

• Power Consumption (Max)       5W
