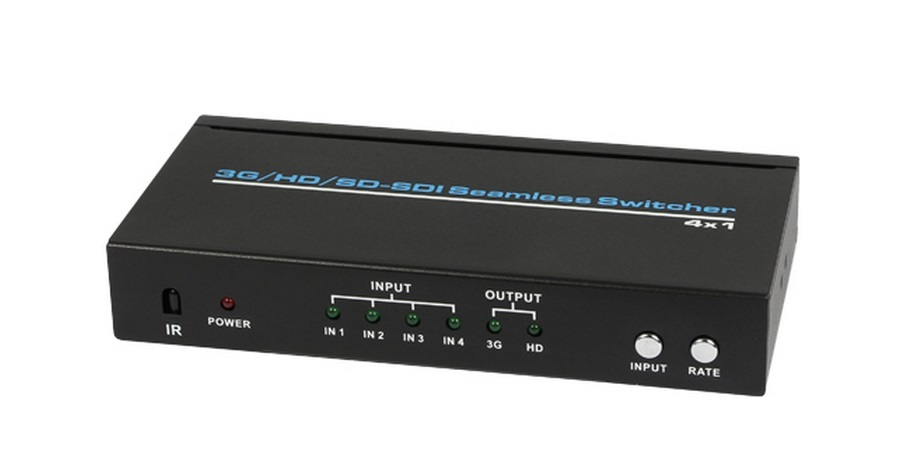

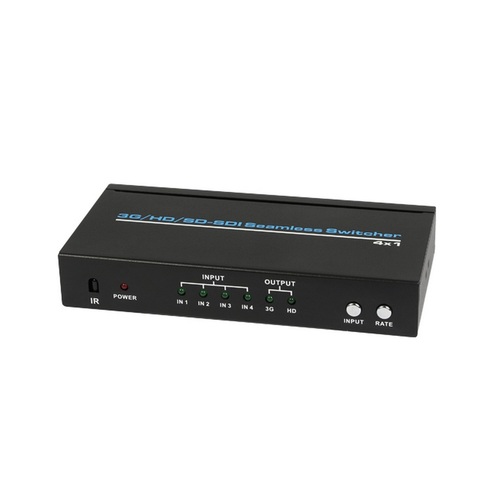

4 Input 1 Output SDI Switcher

Switch between 4 SDI Inputs

SDI switcher is a high-performance with seamless switching, it can be four input SDI/HD-SDI/3G-SDI serial digital video signal source, after scaling into HD-SDI or 3G-SDI serial digital video signal seamless switch to the on HD display device. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances. Features:
4 SDI input signal switch to 1 SDI sink devices.
Support seamless switching
Supports inputs SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
Built-in cable equilibrium, clock recovery and drive.
Supports outputs resolutions: 1080p@60Hz (3G) and 720p@60Hz (HD).
Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
Supports remote control and on-panel control
Supports 5-12V wide voltage input.
Specifications:
Frequency Bandwidth 3Gbps

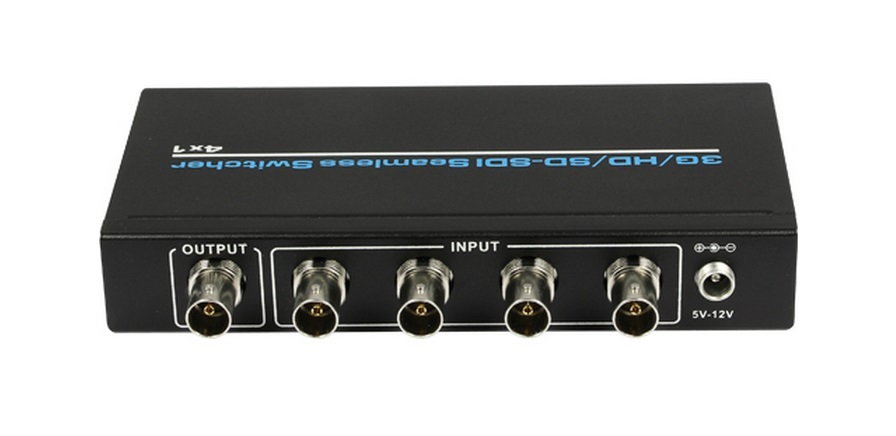

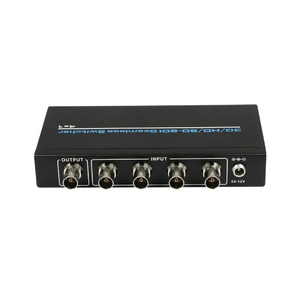

SDI Input Ports 4 x BNC Female input port
SDI Output Ports 1 x BNC Female output ports
Power Supply DC 5V 1A
ESD Protection Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
Dimensions (mm) 70(W) X 145 (D) X 25 (H)
Weight 350g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 4W
