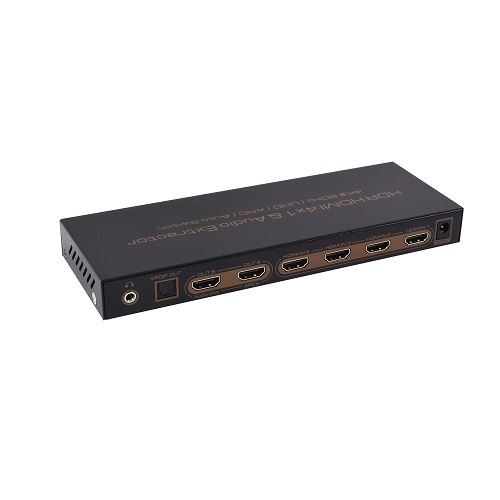

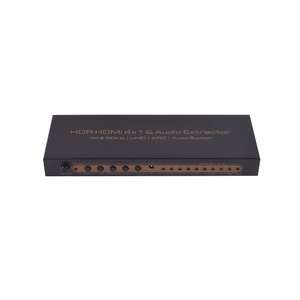

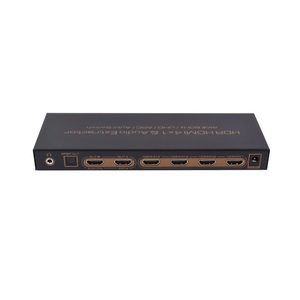

4 port HDMI 2.0 HDR Switcher with Audio Extractor

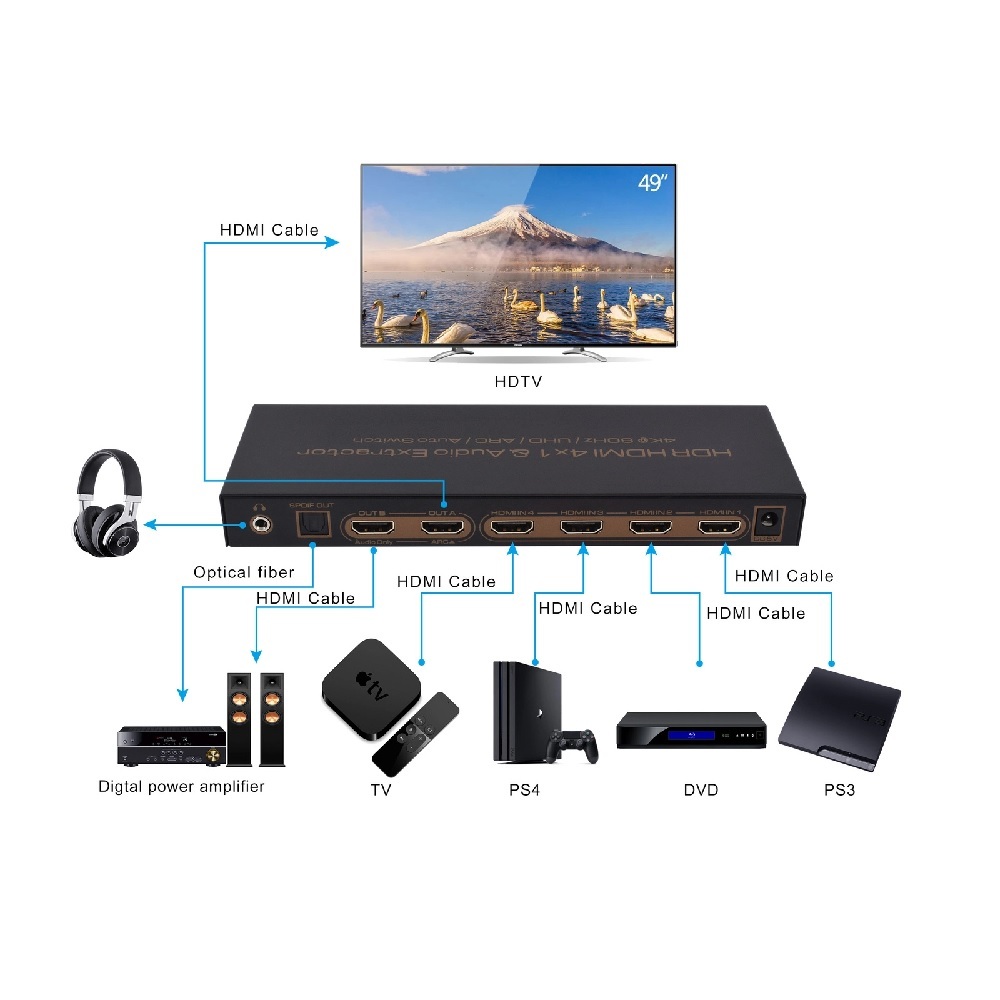

Allows switching of 4 HDMI 2.0 inputs to an LCD display and Audio Receiver simultaneously

This is a high-performance HDMI Matrix switcher box with four HDMI 2.0 inputs, it allows switching of any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on any of the two displays simultaneously, and supports 4K×2K, 3D, up to 48-bit Deep Colour.

It also has a built-in Audio splitter for connection to an amplifier, receiver or home theater set ups via Toslink or HDMI audio output.

FEATURES

•  Four HDR HDMI 2.0 Input signal switch to one HDR HDMI 2.0 Output and one HDMI Output(Audio only)

•  Support 4K @ 60Hz UHD signal input and output(only output channel A) and HDR Function

•  Any input HD Source can do audio extract by the SPDIF or L/R audio output port.

•  HDMI out port B can support Dolby-HD, DTS-HD, LPCM 7.1 high quality audio format.

•  Digital audio port of Toslink can support 192Khz Sampling Rate(LPCM2.0 Audio Format), also can support LPCM 2.0, Dolby-AC3, DTS audio output.

•  HDMI to achieve the synchronization of audio signal separation. There are 2.0、5.1、PASS three kinds of audio mode options

•  Support ARC, it can return the TV Audio to output by one Headphone port (only for the ARC audio source is LPCM 2.0) or by Toslink port. Only the OUT A port supports the ARC function.

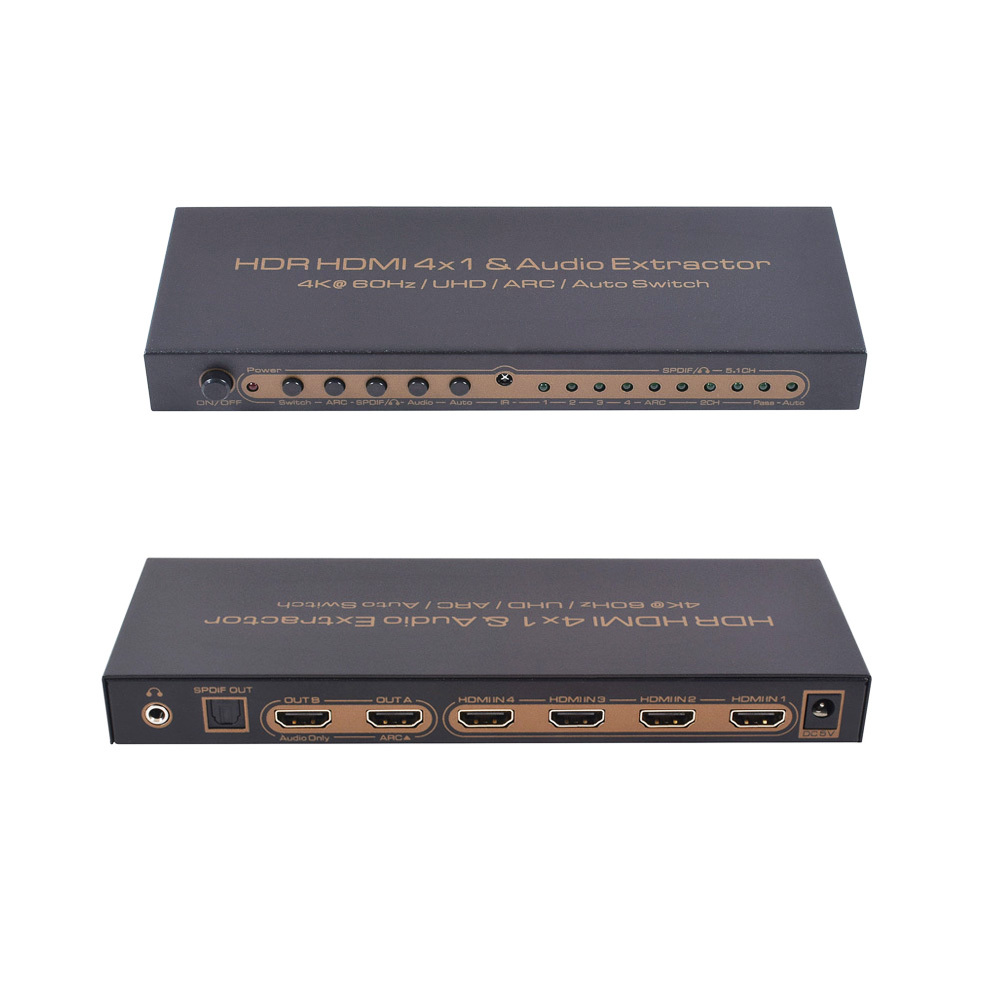

•  LED Status Light shows clearly the working state.

•  In 4K@60Hz HDMI UHD resolution, HDMI Input and Output distance can be up to 5m using the AWG24 standard HDMI Cable. In 4K@30Hz and other lower resolution, HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.

• Supports Dolby Atmos

Contents：

1、Main unit             1pcs

2、5V power adapter      1pcs

3、User manual          1pcs

4、Remote              1pcs

SPECIFICATIONS:

HDMI resolution……. 4Kx2K@60Hz /4Kx2K@30Hz/ 1080p/1080i/720p/576p/576i/480p/480i

HDMI In/Out Supported Audio Format : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Audio output : HDMI、SPDIF and 3.5mm Stereo

Digital Audio Output Supported Audio Format : LPCM2.0/DolbyAC3/DTS

Digital Audio Output Sampling Rate : 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz

Max bandwidth : 600MHz

Max baud rate : 18Gbps

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : ≤8m(1080P)/5m(4K) AWG24 HDMI standard cable

Output cable distance : ≤8m(1080P)/5m(4K) AWG24 HDMI standard cable

Max working current : 600mA

Power adapter : DC5V/1A

Operating Temperature range : -0 to +40℃

Storage Temperature range : -15 to +55℃

Operating Humidity range : 5 to 85%RH (No Condensation)

Storage Humidity range : 5 to 95%RH (No Condensation)

Dimension (L x W x H) : 205x74x26 (mm)

Weight : 350g
