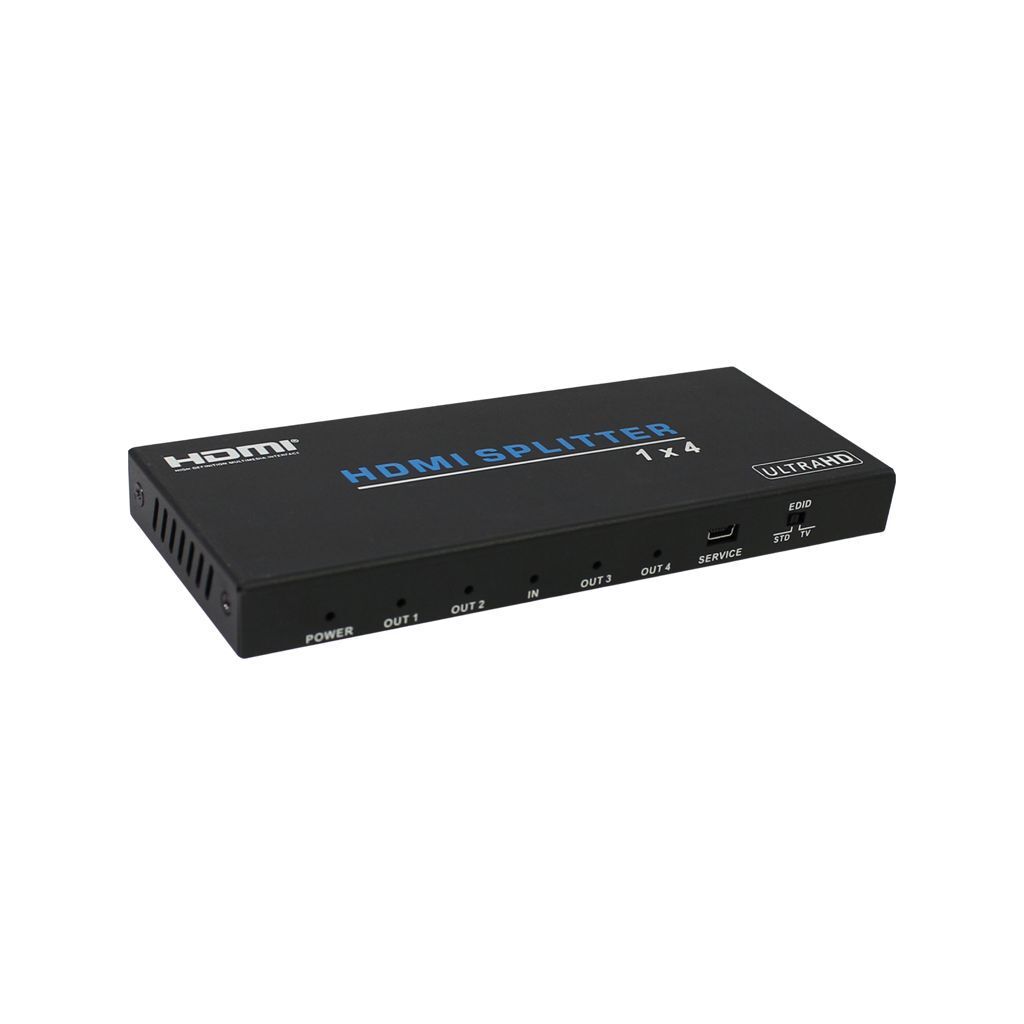

4 Way HDMI 2.0 18GBPS UHD Splitter
4 Way HDMI Splitter with 6G Audio and Video support
SKU: AA6096
4 Way HDMI 2.0 18GBPS UHD Splitter
HDMI Splitter with 6G Audio and Video support
This 4 output HDMI high bandwidth Splitter is an advanced solution for splitting a HDMI signal to two HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV4:4:4) and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.
Perfect for new 4K video sources such as Playstation 4 Pro or Xbox S One and other devices that require 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 specifications.
Features:
• HDMI 2.0b, HDCP 2.2 compliant
• Supports High Definition resolutions up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
• Supports 3D frame sequential video format up to 4K2K@30Hz
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

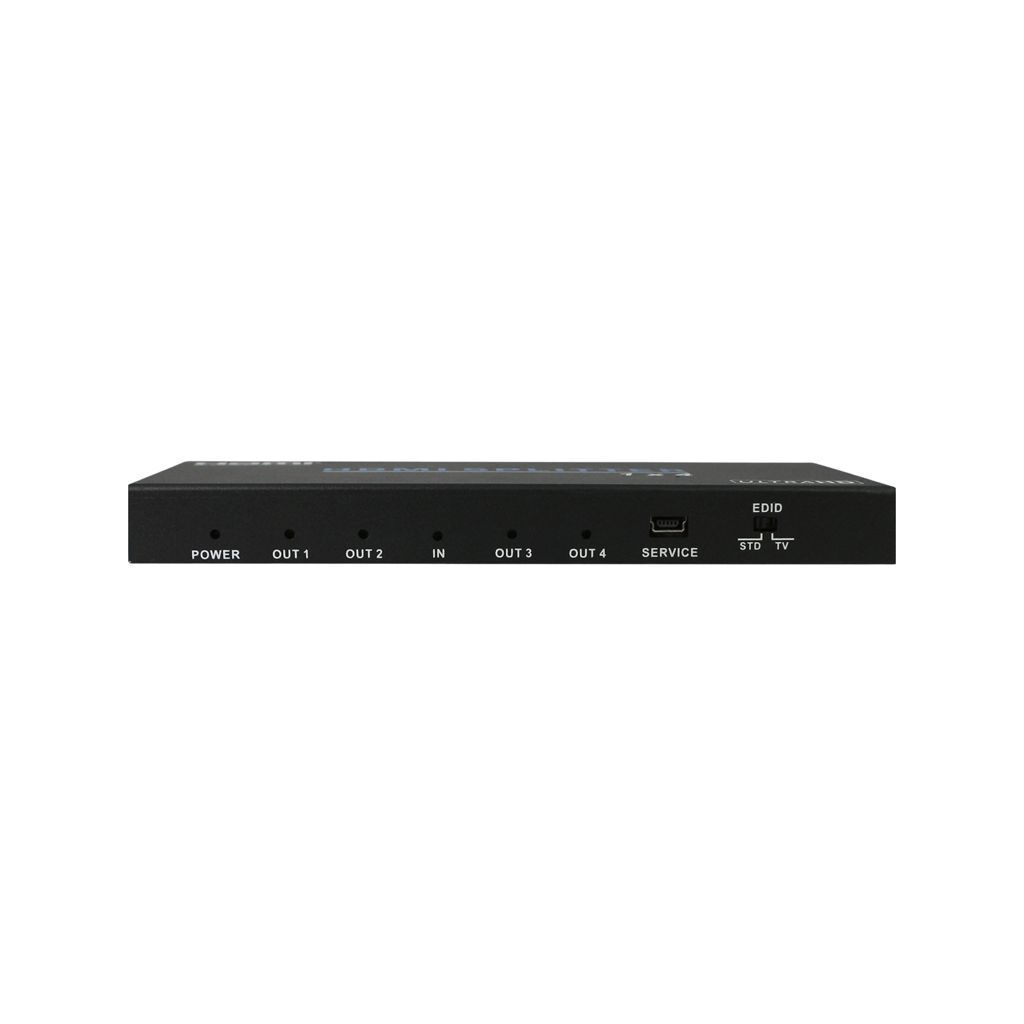

• HDMI input supports 'Standard' mode and 'TV' mode EDID settings
• Compact design for an easy and flexible installation
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18 Gbps
Video Resolutions up to 4K2K@60Hz(4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
Audio Formats PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

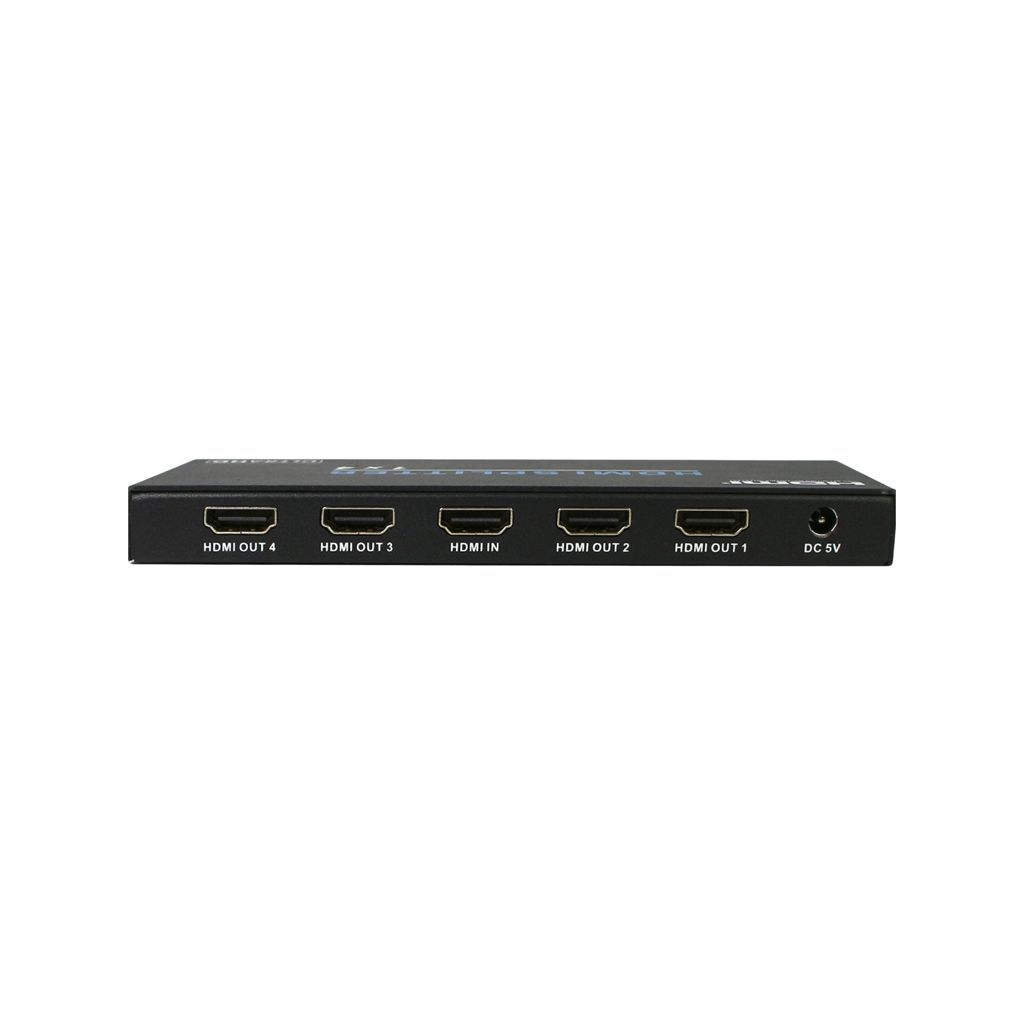

Connections
Inputs 1x HDMI Type A [19-pin female]
Outputs 4x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Dimensions 180mm [W] x 85mm [D] x 11.6mm [H]
Net Weight 300g
Power Supply Input: AC100 - 240V 50/60HzOutput: DC 5V/1A
Power Consumption (Max) 3W
Operation Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
What is HDMI Splitter?
12 Month Warranty
SKU | AA6096 |
Barcode # | 9351634008292 |
Brand | Playvision |
Shipping Weight | 0.2600kg |
Shipping Width | 0.140m |
Shipping Height | 0.070m |
Shipping Length | 0.200m |
Shipping Cubic | 0.001960000m3 |
Unit Of Measure | ea |
Assembled Length | 0.100m |
Assembled Height | 0.010m |
Assembled Width | 0.150m |
