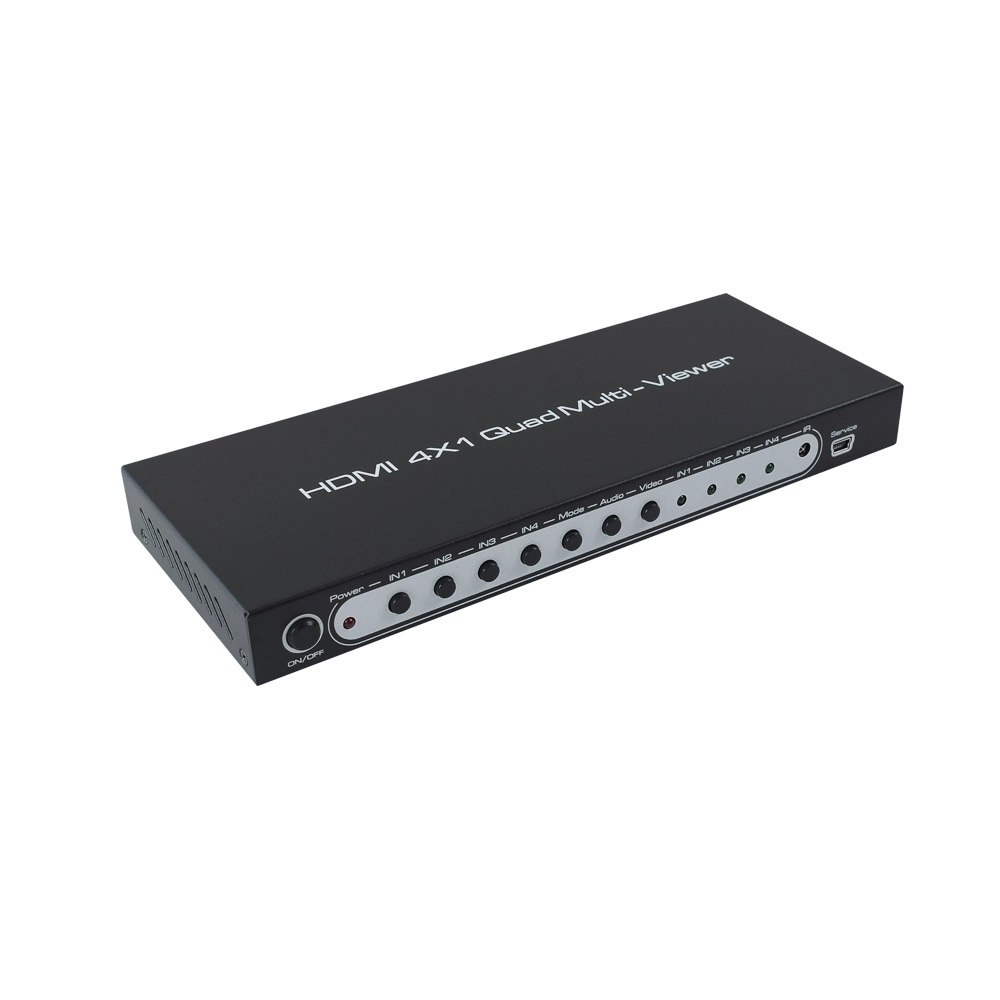

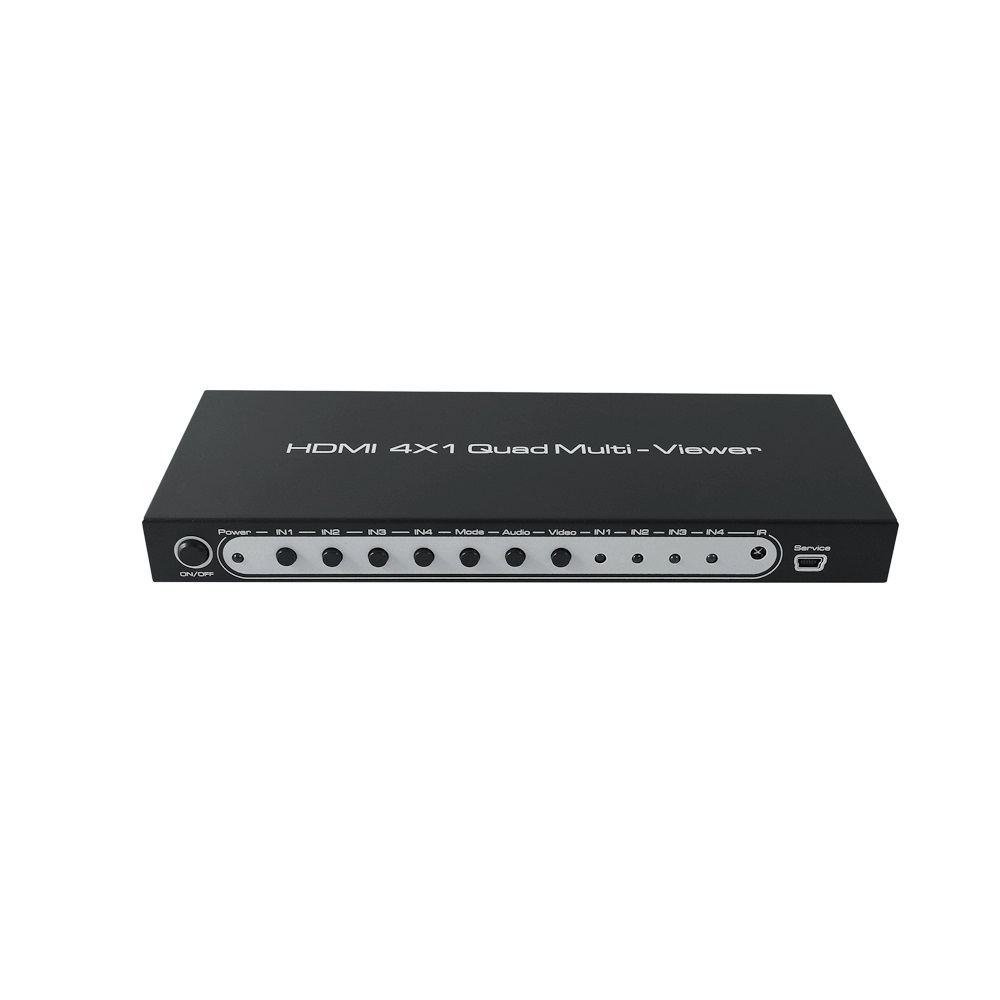

4 Way HDMI Quad Screen Multi-viewer

Display up to 4 HDMI Sources on one LCD or TV.

SKU: AA6109


$199.00
RRP $399.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $189.05 ea
Buy 11 to 20: Pay $179.58 ea
Buy 21 to 100: Pay $170.62 ea




Calculate Shipping

4 Way HDMI Quad Screen Multi-viewer

Display up to 4 HDMI Sources on one LCD or TV.

The 4 Way HDMI Quad Screen Multi-viewer with seamless switcher allows four HDMI inputs to be displayed to one HD Display simultaneously and support multi type of video splitter effect. Also has a Digital Audio Splitter built-in to allows connection to your home theater or amplifier set up.

Capable of displaying one HDMI Display, Seamless Switching between HDMI Inputs or display all 4 HDMI inputs in various configurations on your display.

The switcher can be controlled through the front panel button, IR Remote and RS232. It can be used for the gaming, security, Conference meeting rooms, etc

FEATURES

  • Four HDMI input signals switched to one single HDMI sink devices

  • Support Four HDMI Input to one Quad Multi-Viewer

  • Support Four HDMI Input Switch Seamless

  • HDMI input resolution highest support: 1080P @60Hz resolution

  • HDMI output resolution:720P/ 60Hz. 1080P/ 60Hzï¼›

  • Support SPDIF Coaxial digital audio format: Dolby digital (AC3), DTS and LPCM2.0

  • Support IR Remote Control and Push Button at device control.

  • Support RS232 Control and the device can do software upgrade by the PC.

  • LED indication: when source or sink is working, LED related will go bright.

  • Led Status Light allows the user to know the working status easily.

  • No loss of quality

  • Installs in minutes

SPECIFICATIONS:

HDMI input resolution : 1080p/1080i/720p/576p/576i/480p/480i

Max transmission bandwidth : 225MHz

Max baud rate : 6.75Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : ≤10m AWG26 HDMI standard cable

Output cable distance : ≤10m AWG26 HDMI standard cable

Max working current : 700mA

Power adapter : DC12V/2A

Operating Temperature range : 0 to +40℃

Storage Temperature range : -15 to +55℃

Operating Humidity range : 5 to 90%RH (No Condensation)

Storage Humidity range : 5 to 95%RH (No Condensation)

Dimension (L x W x H) : 220X87X23(mm)

Weight : 443g

CLICK HERE TO SEE OTHER HDMI SPLITTERS IN OUR RANGE

12 Month Warranty

SKU AA6109
Barcode # 9351634012657
Brand Playvision
Shipping Weight 0.8500kg
Shipping Width 0.220m
Shipping Height 0.070m
Shipping Length 0.290m
Shipping Cubic 0.004466000m3
Unit Of Measure ea

Love this box

By: on 17 May 2021
I've used this with several professional video cameras. It's a very stable switcher / quad viewer. Even with different frame rates / video resolutions on different channels, it doesn't blink.
(5)

seamless streaming YES... but other stuff no

By: on 5 May 2020
So this would be so cool if it worked like you think it would for a product that is as expensive as it is... Seamless switching is great ... looks great, however these are the problems i am not a fan of. who is the manufacturer how do we get tech support and firmware updates? when you split screens it is very skewed and no menu to change this. it says up at the top left the input number it is, you can click a button on the remote to turn it off, but it doesnt remember. Would be awesome if there was a menu system to change some of these options. It does the seamless switching so i give it a 3... and the price is to high for just seamless switching.
(3)

Hdmi quad display

By: on 9 October 2018
Great product
(5)
