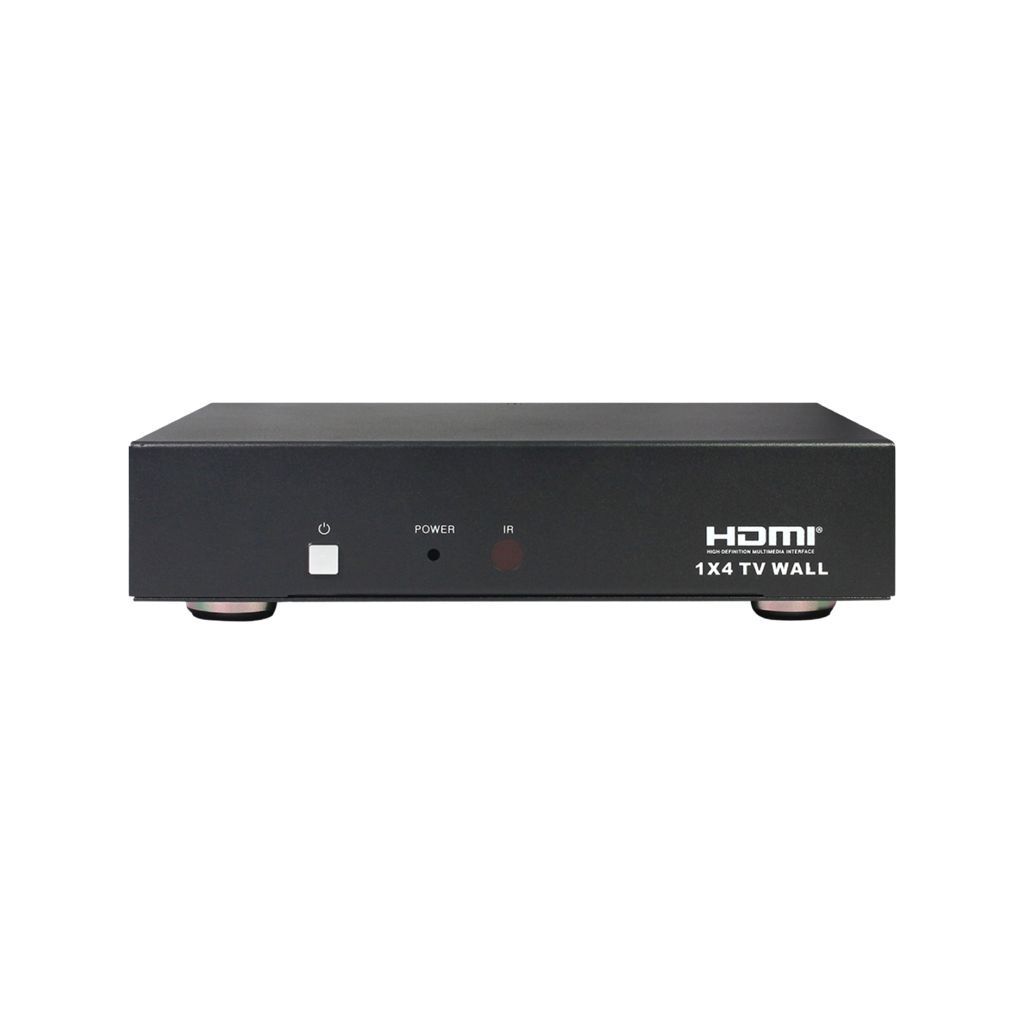

4 Way HDMI Splitter with Video Wall Function

Display a video source up to 4 LCD's on Video Wall mode

Special Order Product - May take 1 - 2 weeks for delivery

This 4 Way HDMI Splitter not only splits 1 input into 4 outputs, but it also has a Video wall function. It allows a video input to be displayed on up to 4 LCD's as one video display creating a video wall effect. Multiple units can be cascaded up to 4 layers; a total of 16 displays on a 4 x 4 display configuration.

It also supports HDMI/VGA/CVBS/USB input sources to be freely arranged on 4 HDMI displays. The embedded scaler converts any formats input signal to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to 1080P @ 60Hz. It supports up to 16 kinds of combination modes and up to 4 layers cascade application for 16 displays(4x4). Flexible control through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.

Disclaimer:
Orders for products valued over $500 is subject to identification check prior to dispatch. We will contact you to request for a copy of your ID in order to release your order for dispatch.

Features:

• Displays source signal on the four displays(2x2 video wall) as a full screen with adjustable bezel correction

• Supports up to 16 kinds of combination modes and up to 4 layers cascade application for 16 displays(4x4)

• HDMI loop out port for easy cascade application

• Supports High Definition resolutions up to 1080P@60Hz

• Output resolution supports 1080p,720p,1024x768,1360x768

• Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)

• Independent audio output through coaxial and analog audio

• Supports IR extension

• Flexible control through on-panel buttons, IR remote control, RS-232 or Ethernet protocol



Specifications:

Technical
HDMI Compliance : HDMI 1.3
HDCP Compliance : HDCP 1.3
Video Bandwidth : 4.95 Gbps
Video Resolutions : up to 1080P@60Hz
Color Space : RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth : 10-bit, 12-bit
Audio Formats : PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection : Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

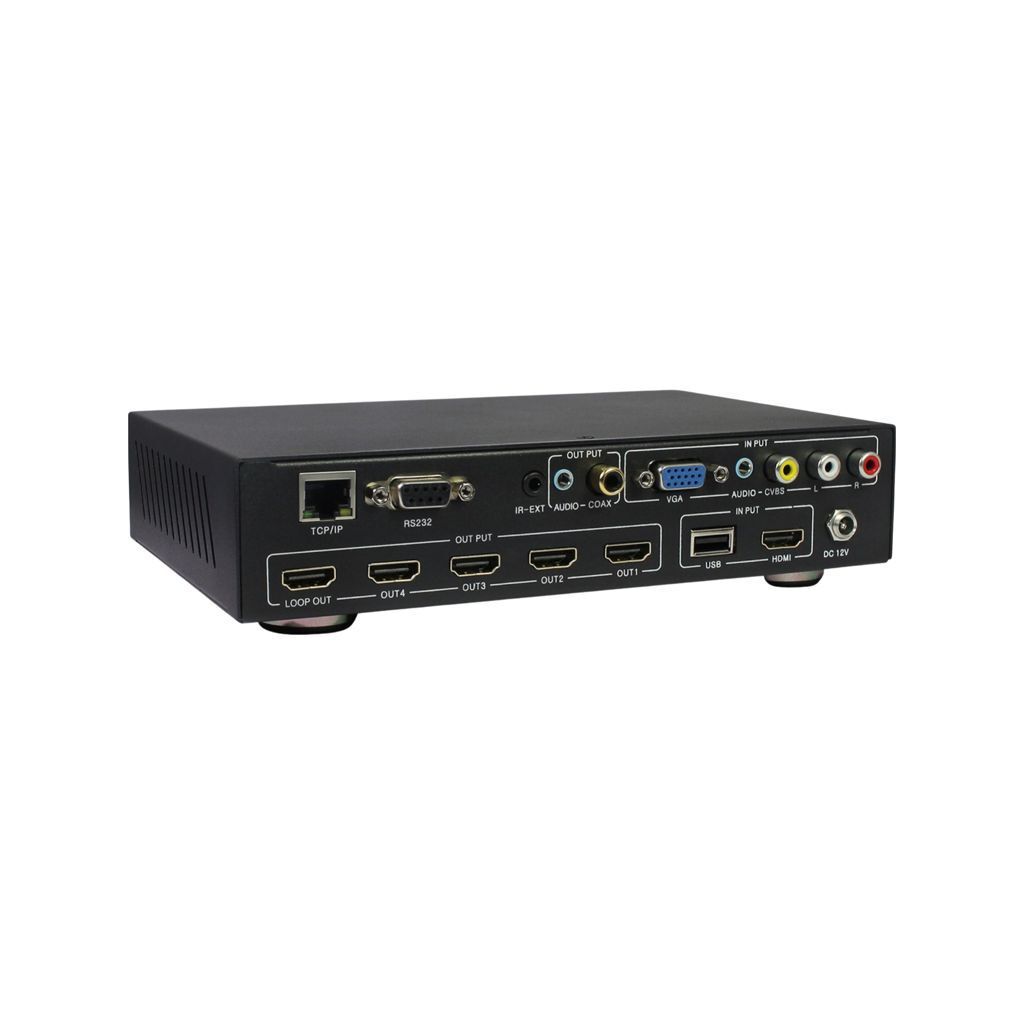

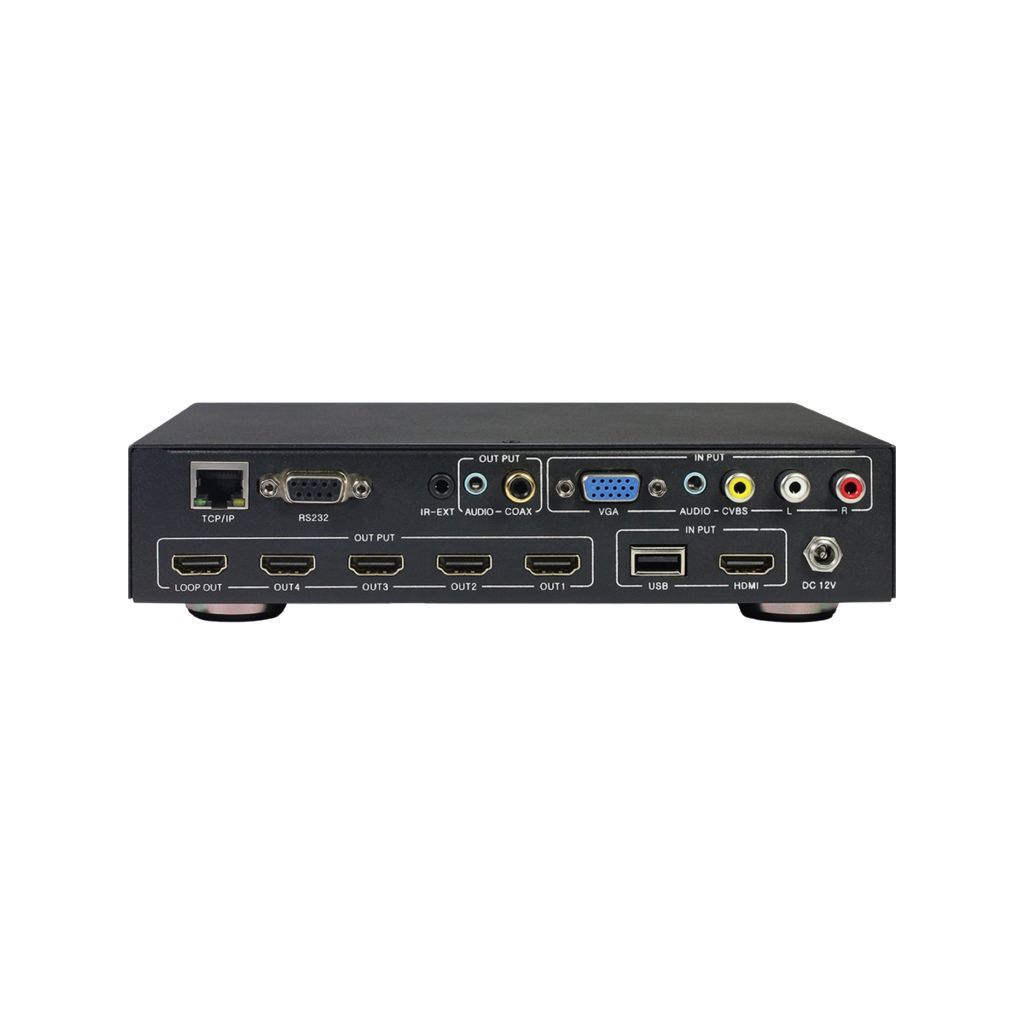

Connections
Inputs : 1x HDMI Type A [19-pin female]
1 x 15-pin D-sub [VGA]
1 x Stereo Audio In [3.5mm Stereo Mini-jack]
1 x RCA [AV]
2 x RCA [Stereo Audio]
1 x USB Type A [USB Data]
1 x 9-pin D-sub [RS-232]
1 x RJ45 [IP Control / LAN Serving]
1 x 3.5mm Stereo Mini-jack [Infrared Receiver]

Outputs: 5x HDMI Type A [19-pin female]
1 x Stereo Audio Out [3.5mm Stereo Mini-jack]
1 x SPDIF Out [coaxial]

Mechanical
Housing : Metal Enclosure
Dimensions : 250mm [W] x 118mm [D] x 32mm [H]
Net Weight : 1.05g
Power Supply : DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max) : 7.5W
Operation Temperature : 32 - 104°F / 0 - 40°C
Storage temperature : -4 - 140°F / -20 - 60°C
Relative Humidity : 20 - 90% RH (no condensation)
