4 Wheel Drive with Ultrasonic & Line Tracer Arduino Projects Robot Kit

Do it yourself Arduino based Robot kit

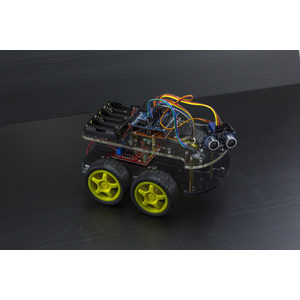

This DIY Arduino based robot car kit is based on Arduino Uno development board. It is based on a 4 wheel drive platform integrated with an ultra-sonic sensor to avoid obstacles and line tracer sensors. It is supplied with a n infra-red remote controller for manual steering of the robot. Comes complete with all necessary components and hardware and is supplied with a step by step instruction maual for assembly. This platform is upgradable and can replace, upgrade and expand the input sensors and add other functionality by adding other modules. You are able to add remote control functionality by adding Bluetooth or RF modules. You are limited by your imagination. Easy platform to assemble and is a fun way to get into Arduino and robotics.

Component list

• DC motor x 4
• Rubber Tyres x 4
• Motor hardware parts x 4
• Pre-built 100 x 213 x 5mm prespex chassis
• L298N motor drive module x 1
• iDuino UNO Development board x 1
• Sensor expansion board x 1
• Servo x 1
• Ultrasonic module x 1
• Line Trace Sensor x 1
• Infrared receiving sensor x 1
• Infrared remote controller x 1
• Mini breadboard x 1
• 6AA battery box x 1
• Jumper wires x 30
• USB Cable x 1
• Copper pillars
• Screws

*Does not include sprial wire wrap

Instruction Manual (Click below to download)

Schematic:
