4 Wheel Internal Sensor Caravan and Trailer Tyre Pressure Monitor System TPMS Steelmate TP-V1 Lite

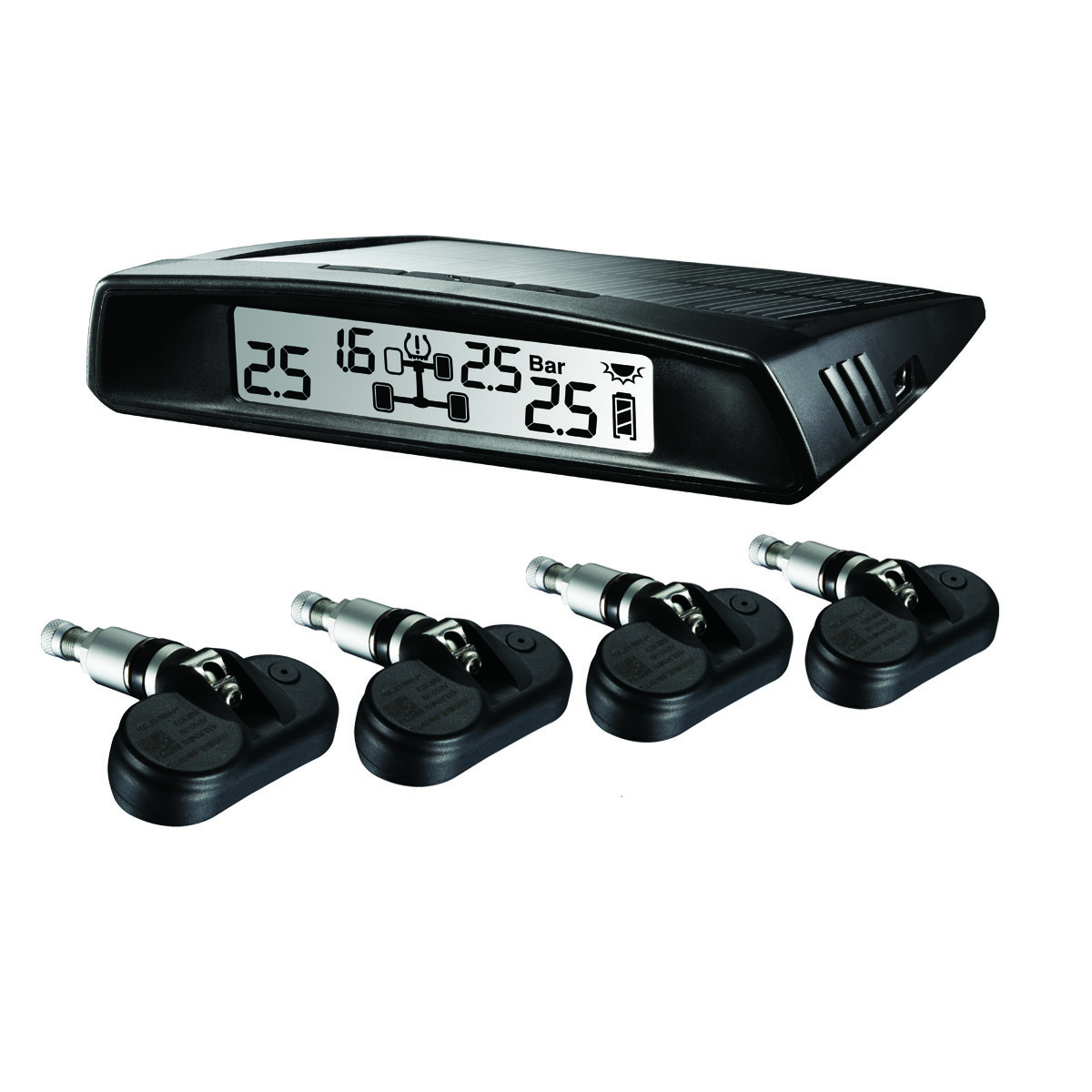

Steelmate TP-V1 Lite TPMS

The Steelmate Tyre Pressure Monitoring System (TPMS) monitors your caravan, trailer or motorhome tyre pressures. The system displays accurate levels and warns the user when levels are abnormal.

Key features:

For caravans or trailers with either 2 or 4 wheels
Pressure range: 0 - 8 Bar / 0 - 115PSI
Sensor location preset at the factory, no pairing needed after installation
Switch display easily and quickly when changing the towing vehicle
Wireless display
Display charged by solar power or mini USB charging port
Intelligent design for power saving of display
Self-tests every power on
Large display battery capacity for a months use without charge
Military sensor battery: long battery life 5 years or 100,000 KM
End user can set the tyre pressure warnings
Pressure unit (PSI / Bar)
Sleep mode
Display with visual and audible warning for tyre pressure
Low display battery warning
Sensors with wide range of operating temperature (-40°C - +125°C / -40°F - +257°F)

Technical specifications:

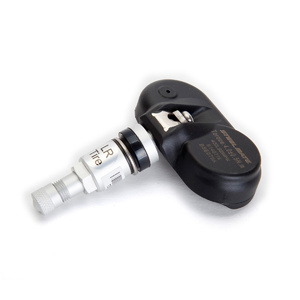

Professional sensor:
Operating frequency: 433.92MHz ±0.05MHz
Operating voltage: 2.2 - 3.6V
Operating current: =18mA
Static current: =1uA
Operating temperature: -40°C - +125°C / -40°F - + 257°F
Battery life: =6 years
Weight: 44g ±1g
Adjustable warning pressure range (Low pressure 1.0 Bar - 3.4 Bar / 15 PSI - 50 PSI) ( High pressure 3.4 Bar - 6.2 Bar / 50 PSI - 90 PSI)

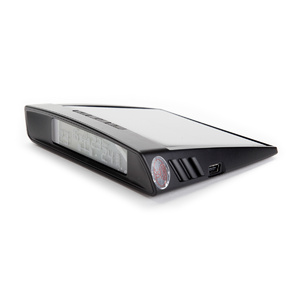

Display:
Operating frequency: 433.92MHz ±0.05MHz
Operating current: =3mA
Static current: =100µA
Operating voltage: 2.6-3.6V
Operating temperature: -20°C - +70°C / -4°F - +158°F
Built-in battery capacity: 3.2V/160mA
Charging temperature: 10°-+65°/ +14°-+149°
Solar charging current: =15mA
USB charging current: =40mA
