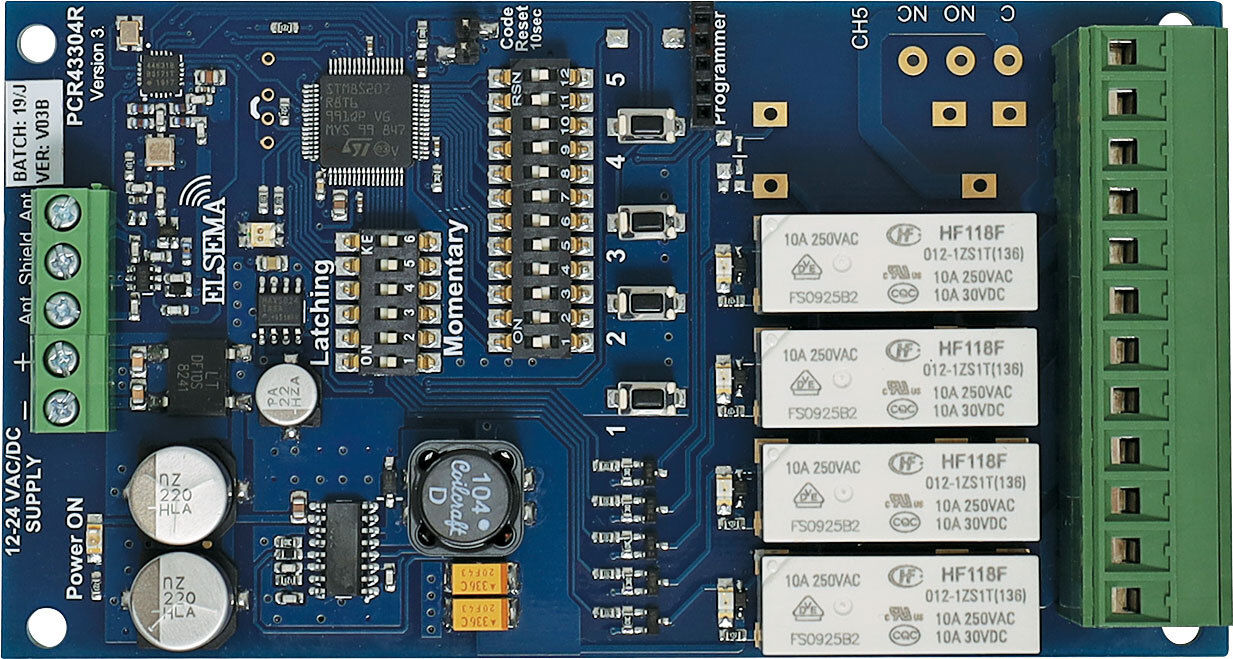

433Mhz 4 Channel Receiver - Penta PCR43304R

Wirelessly switch connected devices

These can be found in accessories listed below. The Receiver has four relay outputs which can be switched “on” and “off ” independently. The relays are capable of switching loads of up to 10 Amps at 240Volts AC.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.

Applications

Keyless access control for automatic gates and doors
Equipment and machinery control for factories and warehouses
Home automation i.e. garden lights, swimming pool control etc.
Security, lighting and automotive controls
Anywhere else you need a wireless signal to transmit a contact closure


Features

• Frequency hopping between 433.10 to 434.70MHz
• 12-way DIP switch or encrypted coding
• Momentary and latching modes are user selectable.
• Unlimited remotes can be programmed to the receiver
• Antenna diversity for robust link with extended range
• Compatible with PentaFOB® and PentaCODE® remotes
• Wide operating supply voltage and low current consumption
• On-board diagnostic LED’s to indicate correct power, reception and relay activation

Specifications:

• Supply Voltage: 12 to 24 Volts AC or DC
• Standby Current: 15 mA stand by at 24VDC
• Current Consumption: 91 mA with all relays “On”
• Frequency Band: 433.100 to 434.700MHz
• Receiver Sensitivity: 0.316uV (-117dBm)
• Operating Temperature Range: -5 to 50°C
• Receiver Memory Storage: Unlimited Remotes
• Decoding System: Encrypted 17 billion codes combinations or On board 12-way code switch
• Outputs: 4 change over relay outputs, rated at 10 Amps 240VAC each.
• Relay Contacts: Common (C) , Normally Closed (NC) & Normally Open (NO)
• Connections: Supply and Antenna is a screw type terminal block, Relay outputs are plug-in type terminal block
• Antenna 1: ANT433 series for long range applications. Antenna wire for short range applications
• Antenna 2: Use second antenna for extended range
• Operating Range: Refer to the remote control or transmitter data sheet
• Dimensions: 130 x 70 x 27mm
• Weight: 136g
• Useable Transmitters: FOB433 series and PCK series

  *Specifications are subject to change without notice.
