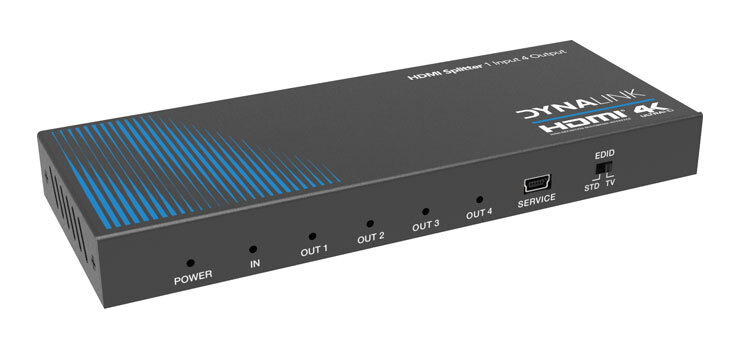

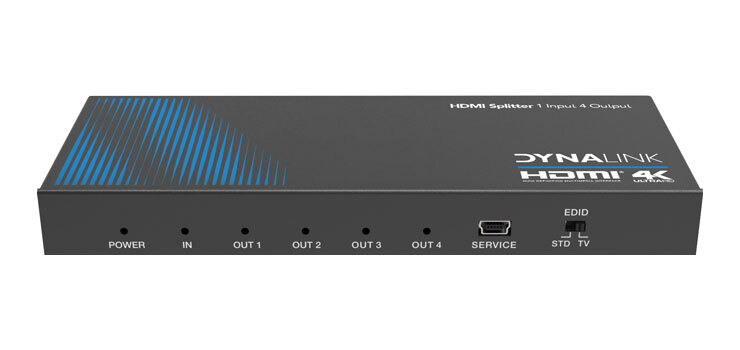

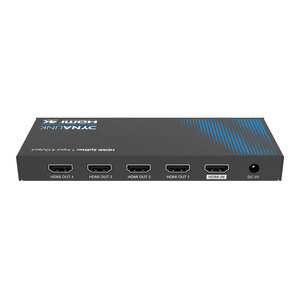

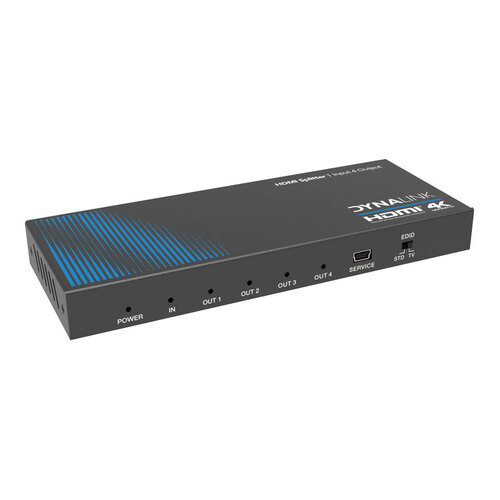

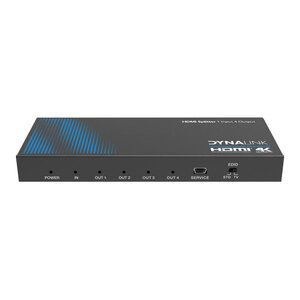

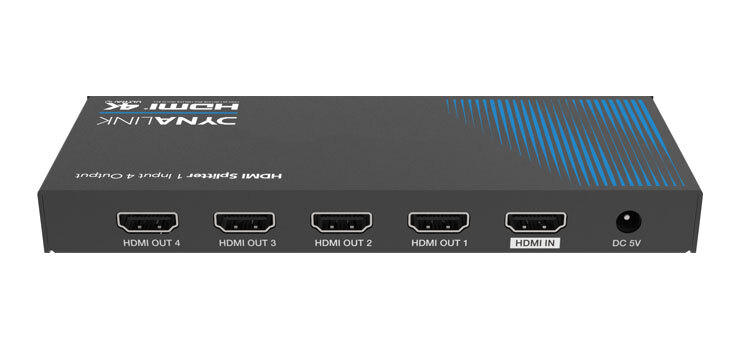

4K 1x4 HDMI Splitter 18GBps Bandwidth

4 Port HDMI 4K @ 60Hz Splitter

This is a high performance 1x HDMI input to 4x HDMI output switcher which is powered via a USB port. The system supports all 3D TV formats in addition to all HDTV formats up to 4K Ultra HD (3840 x 2160p) @60Hz video. It also supports HDCP 2.2 compatibility.


Features

• Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays
• Video Resolutions up to UItra HD 4Kx2K (3840x2160p)@60Hz YUV 4:4:4.
• Three kinds of EDID handling abilities
• HDCP2.2/1.4 Compliant
• 36 bit Deep Color
• LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio
• Bandwidth 18Gbps
• Supports HDR

Specifications

• Video Bandwidth: 600MHz/18Gbps
• Output Resolution: 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
• ESD Protection: Human Body model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
• Input Ports: 1 x HDMI Type A [19-pin female]
• Output Ports: 4 x HDMI Type A [19-pin female]
• Chassis Material: Metal
• Colour: Black
• Dimensions: 63mm (W) × 163mm (D) × 16mm (H)
• Weight: 260g
• Power Supply: 5V/1A DC (US/EU standards,CE/FCC/UL certified)
• Power Consumption: 2W
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)

  *Specifications are subject to change without notice.
