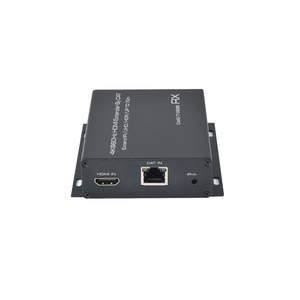

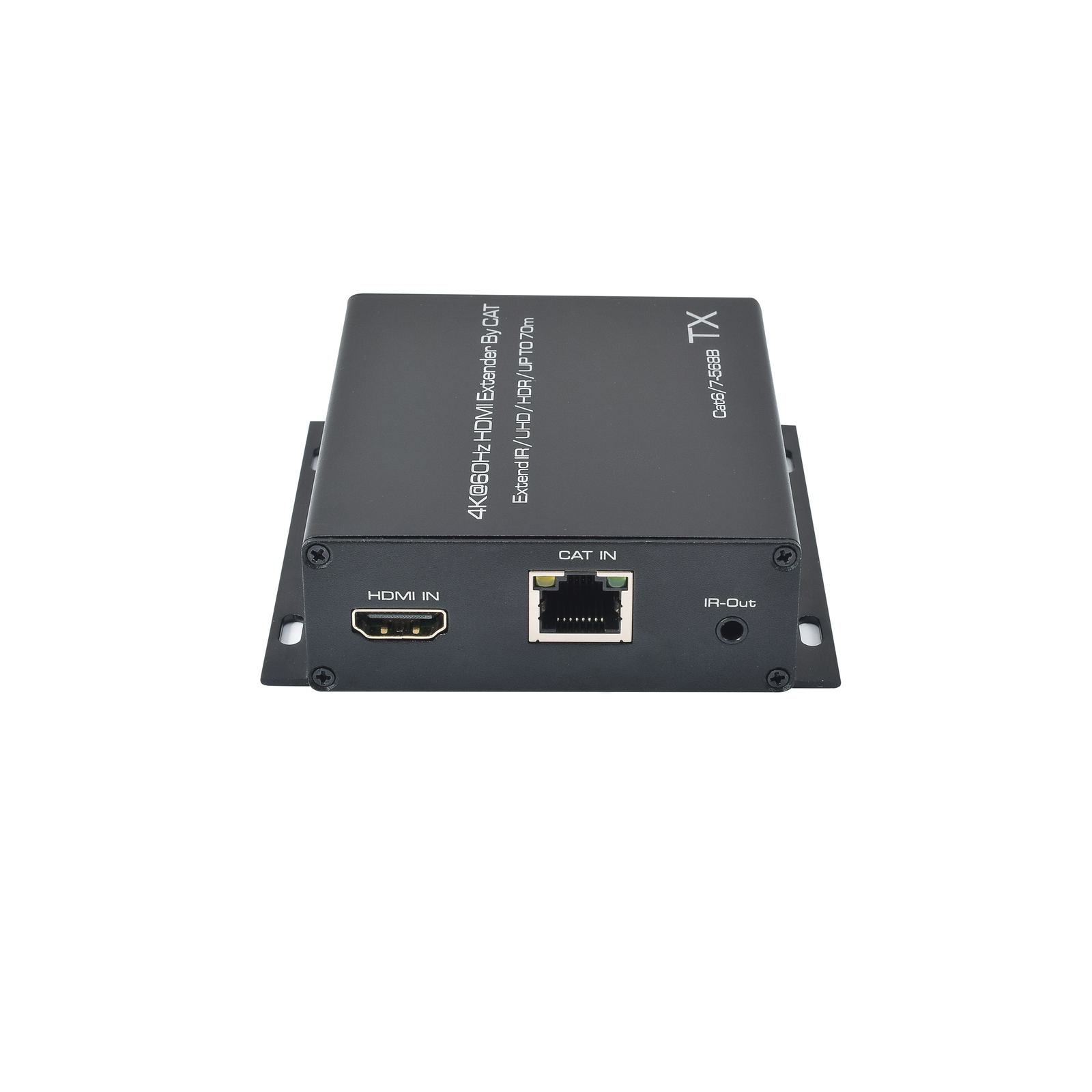

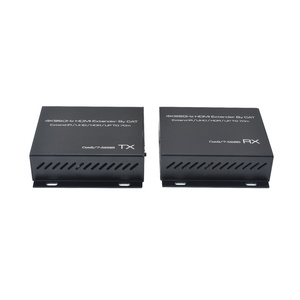

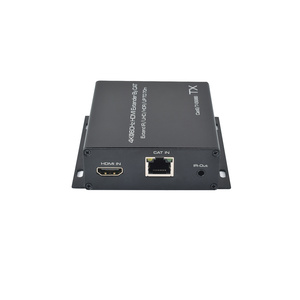

4K HDMI 2.0 18GBPS UHD Extender Over Cat 6/7 with Bi-directional Infra-red Repeater

Extend 4K @ 60Hz up to 70m with Cat 6 and Cat 7 cable

SKU: AA6196


$299.00
RRP $599.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $284.05 ea
Buy 11 to 20: Pay $269.85 ea
Buy 21 to 100: Pay $256.35 ea




Calculate Shipping

4K HDMI 2.0 18GBPS UHD Extender Over Cat 6/7 with Bi-directional Infra-red Repeater

Extend 4K @ 60Hz up to 70m with Cat 6 and Cat 7 cable

This 18Gbps HDMI 2.0 Extender can send 4K @ 60Hz up to 70m via Cat6/Cat7 ethernet cables. It is also HDCP2.2. compliant and supports Transfer Bidirectional Infrared control signal/RS232 signal/Ethernet together with the HDMI signal.

Perfect for new 4K video sources such as IQ4, Playstation 4 Pro or Xbox S One and other devices that require 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 specifications.

Features

  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

  • Video resolutions up to 4K2K@50/60Hz (YUV444)

  • 10bits HDR (High Dynamic Range) pass through

  • Supports HDMI High Bit Rate(HBR) audio pass through

  • Supports CEC bypass

  • Optical audio supports LPCM 2CH, Dobly Digital 2/5.1 CH, DTS 2/5.1 CH

Technical

HDMI2.0 150 meter Extender

HDMI resolution 4K/1080P/720P/576P/576i/480P/480i@24Hz/25Hz/30Hz/50Hz/ 60Hz, Supports1080P@120Hz etc.

Note: HDR and Dolby Vision are not supported

HDMI Audio format Dolby True HD/DTS HD/Dolby Digital 5.1 /Dolby Digital Plus/ DTS 5.1 / LPCM2.0  MPEG-1/2/4 Audio etc.

HDMI Max bandwidth 600MHz

HDMI Max baud rate 18Gbps

LAN transmission rate 350*4 Mbps Max

Transmission delay <5ms

Output cable length 1080P≤12m/4k≤5m/AWG 26 HDMI Cable

Transmission distance ≤150m (Cat 5e/6 4K@30/1080P@60)

≤100m (Cat 5e/6 4K@60)

Serial port baud rate Supports 115200/57600/38400/19200/9600/4800/2400/1200bps

IR Carrier frequency 30-60KHz

Power adapter specification AC 100~240V / DC12V/1.5A

Max working current TX≤650mA / RX≤500mA

Working temperature range -5 ~ +35℃

Working humidity range 5 to 85%RH(No Condensation)

Storage temperature -15 to 55℃

Storage humidity 5 ~95%RH(No Condensation)

Size 94 x93x28.5 (mm)

Weight TX≈180g/RX≈175g

Accessories Manual x1, Power Adaptor x1,

IR Transmitter cable x1, IR Receiver cable x1

CLICK HERE TO SEE OTHER HDMI EXTENDERS IN OUR RANGE

12 Month Warranty

SKU AA6196
Barcode # 9351634016136
Brand Playvision
Shipping Weight 0.6600kg
Shipping Width 0.260m
Shipping Height 0.080m
Shipping Length 0.360m
Shipping Cubic 0.007488000m3
Unit Of Measure ea
Assembled Length 0.250m
Assembled Height 0.010m
Assembled Width 0.200m
